Images used may not represent the actual product.
$56.19

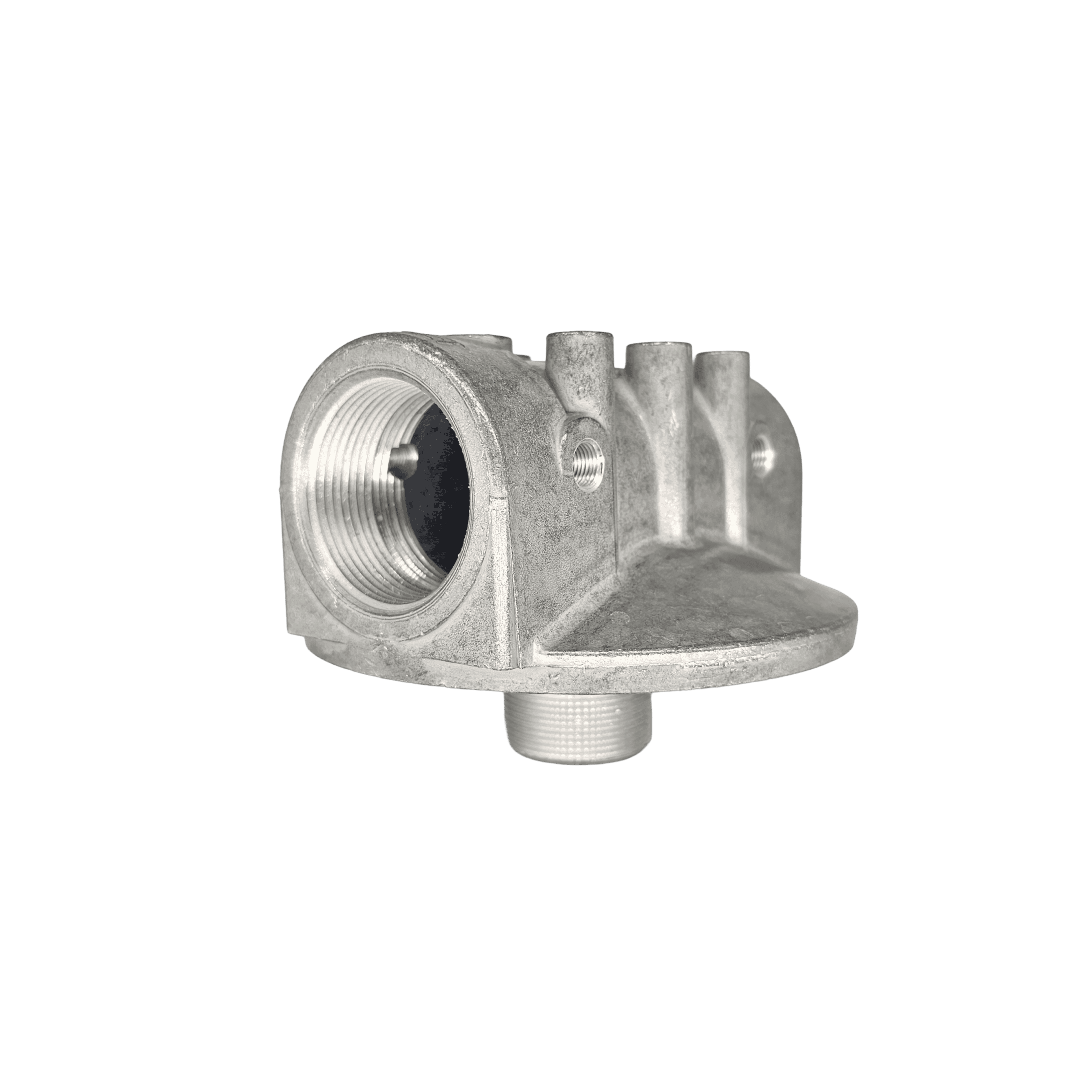

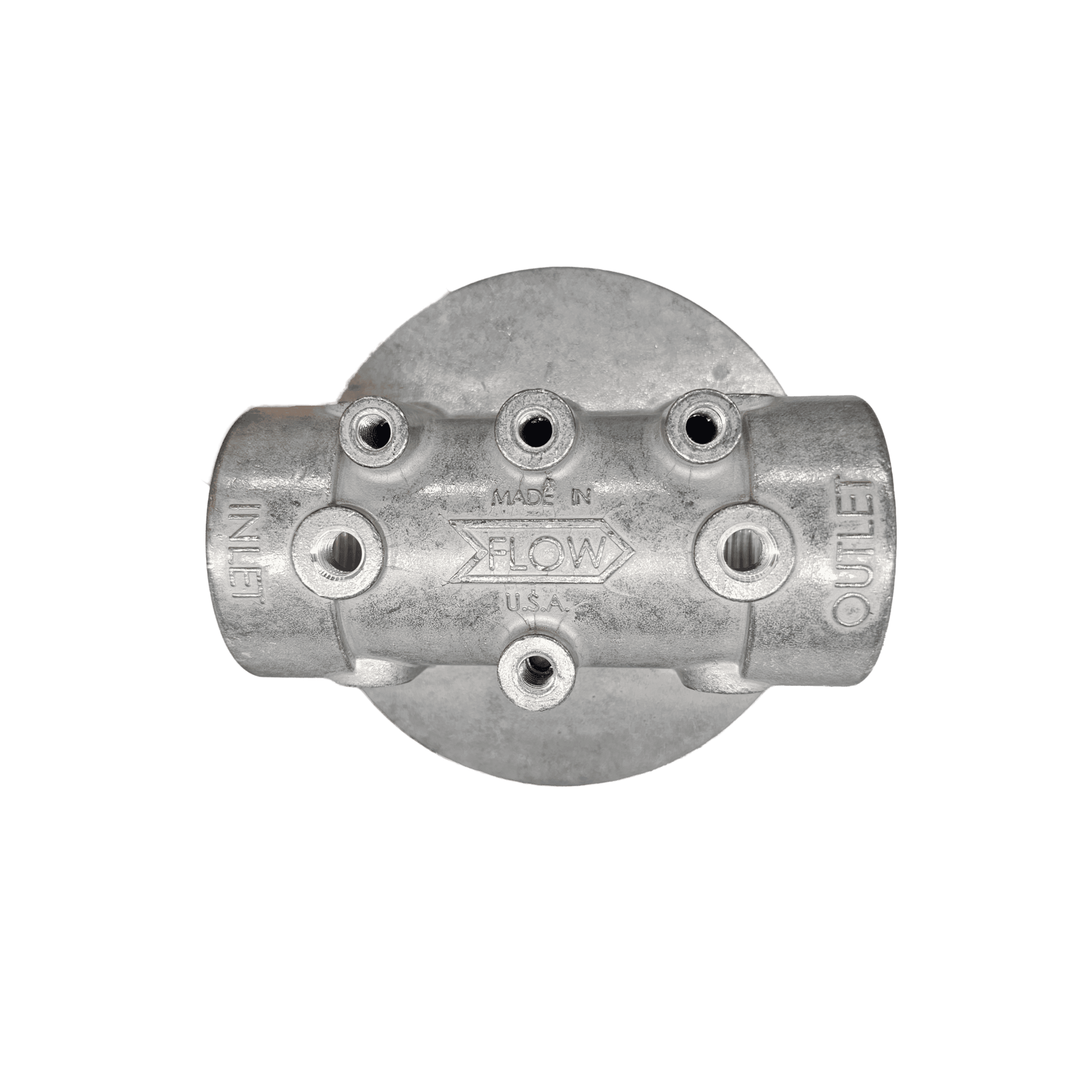

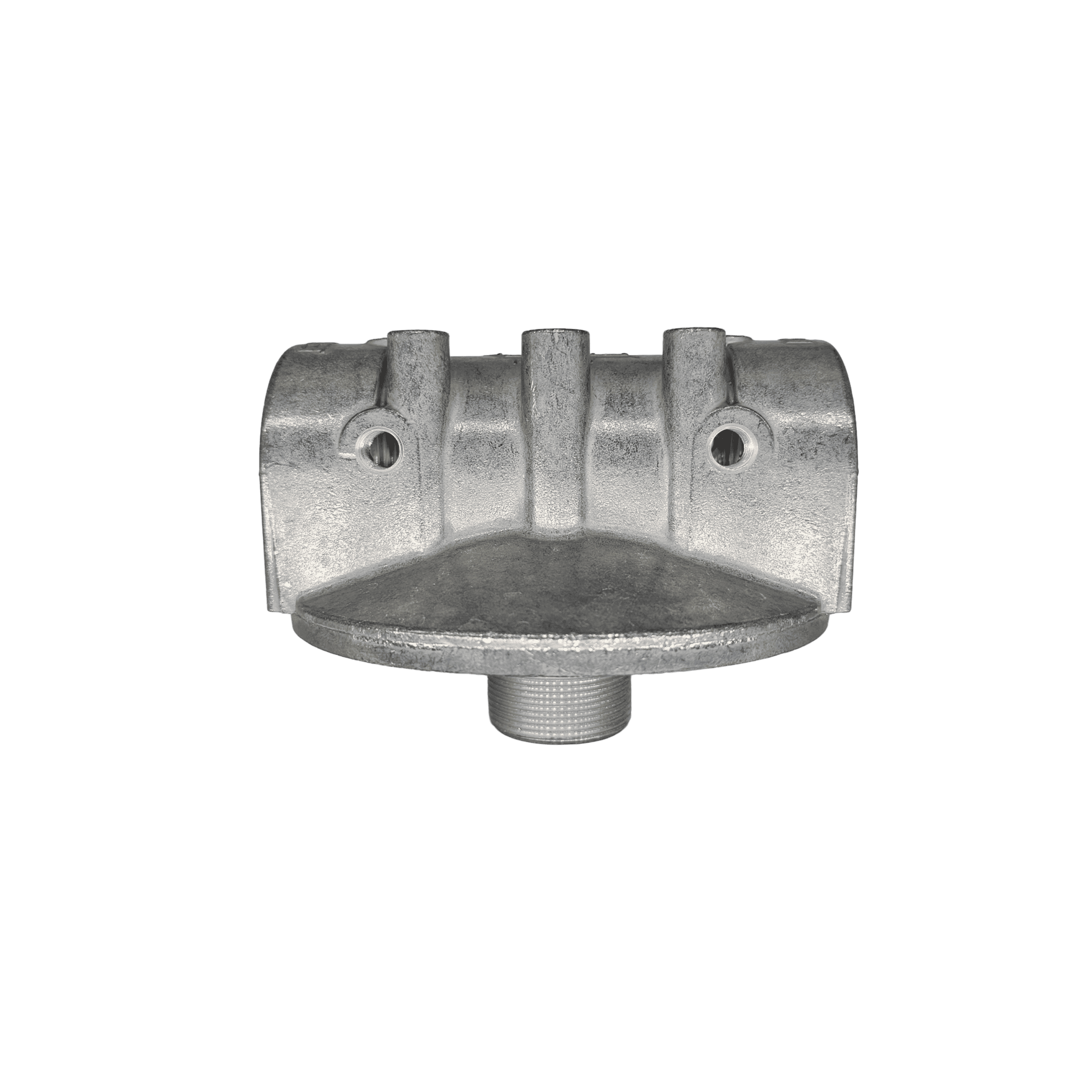

The Zinga SF15025123456 spin-on filter head, part number SF15025123456, has 1-1/2 in NPTF ports, a 25 psi bypass and 1/8 in NPTF gauge ports at all six locations. It handles up to 80 gpm on return lines and 32 gpm on suction lines.
The SF150 Series head is rated to 200 psi and 250 °F and accepts Zinga SE, LE, ZSE and ZLE Series elements on a 1-1/2-16 thread. With ports at every location, you can place gauges where they are easiest to read on your installation.
In the part number, 150 is the 1-1/2 in NPTF port, 25 the bypass setting and 123456 the gauge ports at all six locations. Compatible elements we stock include the SE03 and SE10 cellulose elements, the ZSE10 Z-Glass element, the LE03, LE25 and LE10AZ LE Series elements, and the ZLE03, ZLE10 and ZLE25 ZLE Series elements.
It mounts with four 5/16-18 UNC x 9/16 in deep holes. Allow 1.5 in of clearance below the element for removal.
Related categories: Filtration & Fluid Conditioning · Zinga Filtration · Filter Heads
Brand: Zinga Filtration
