$102.33

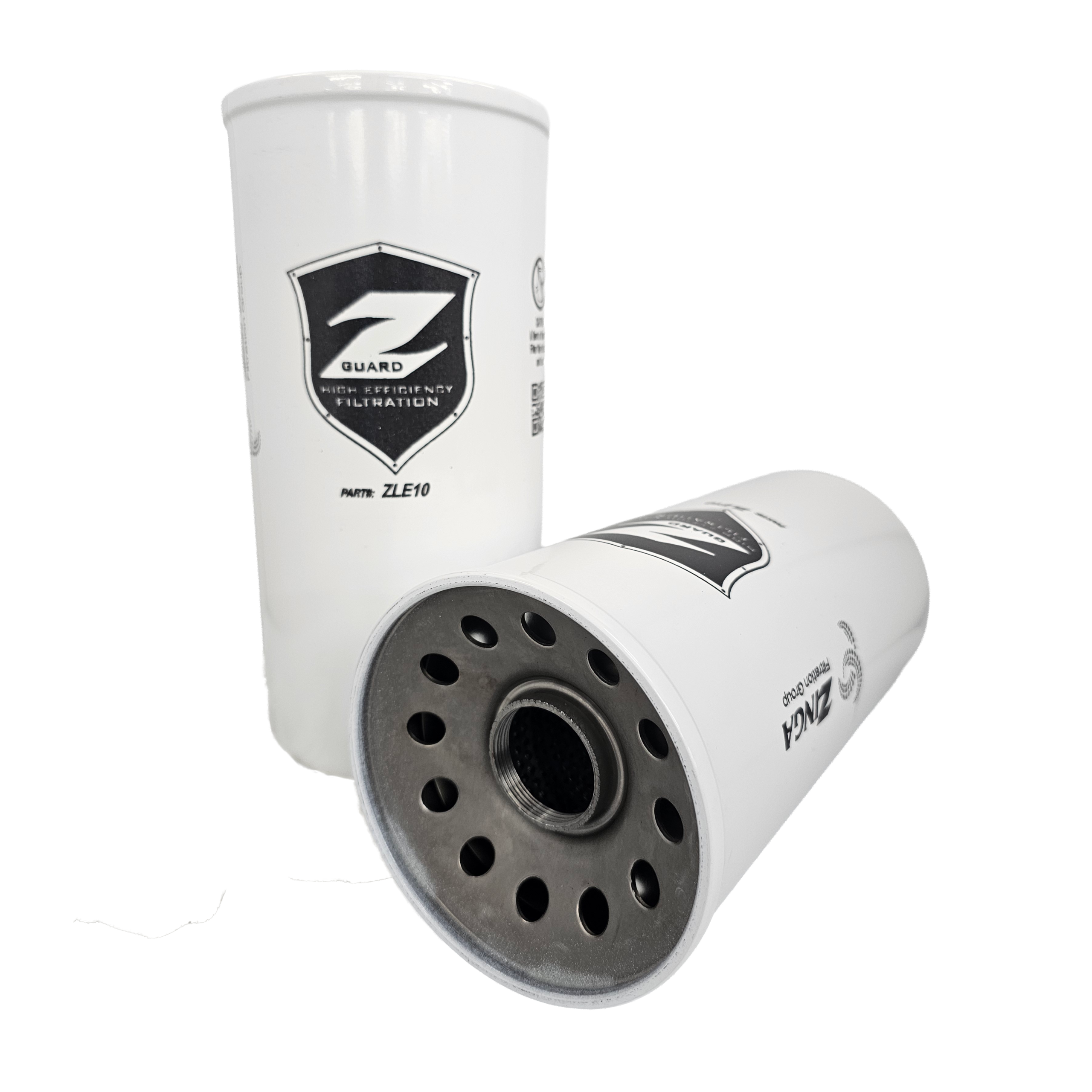

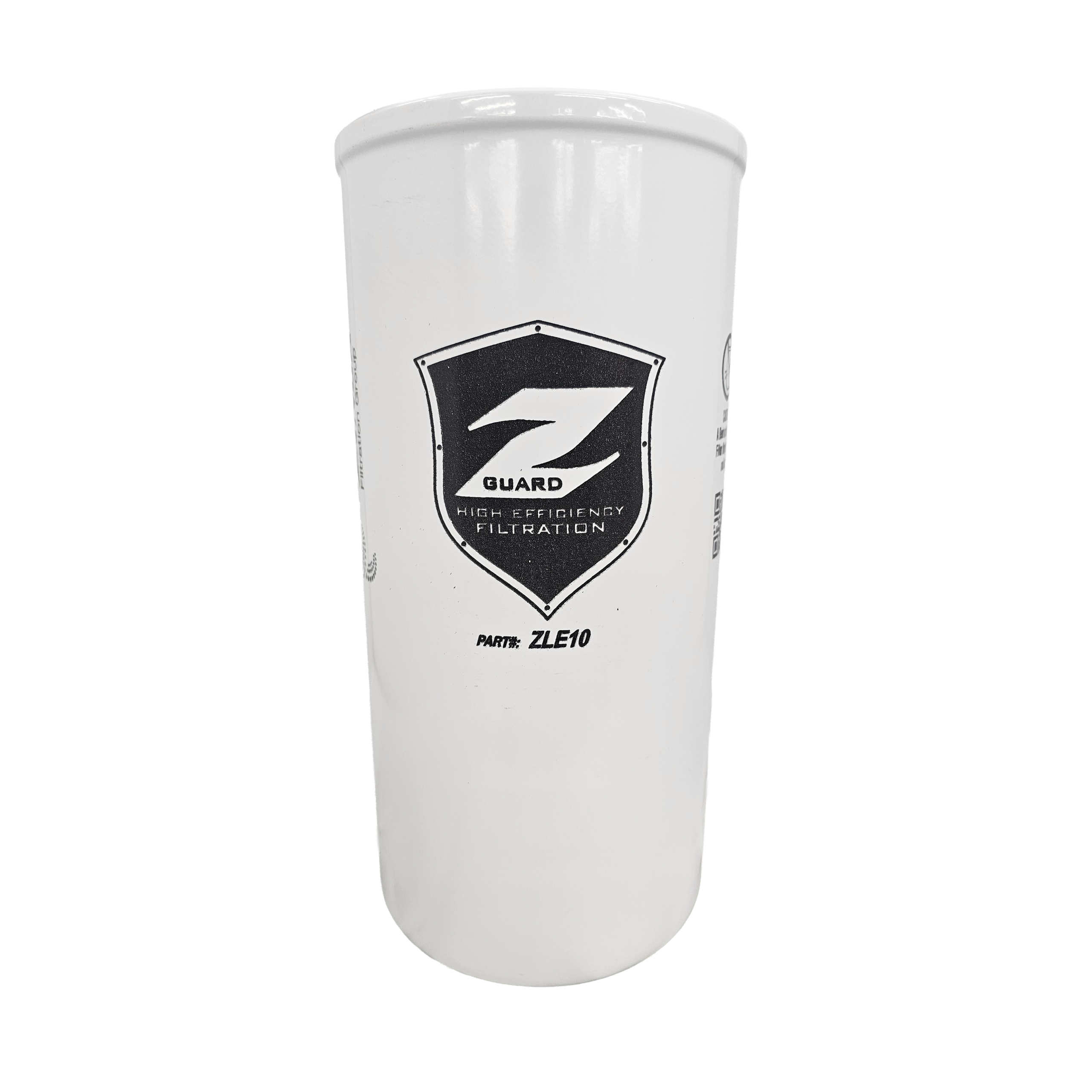

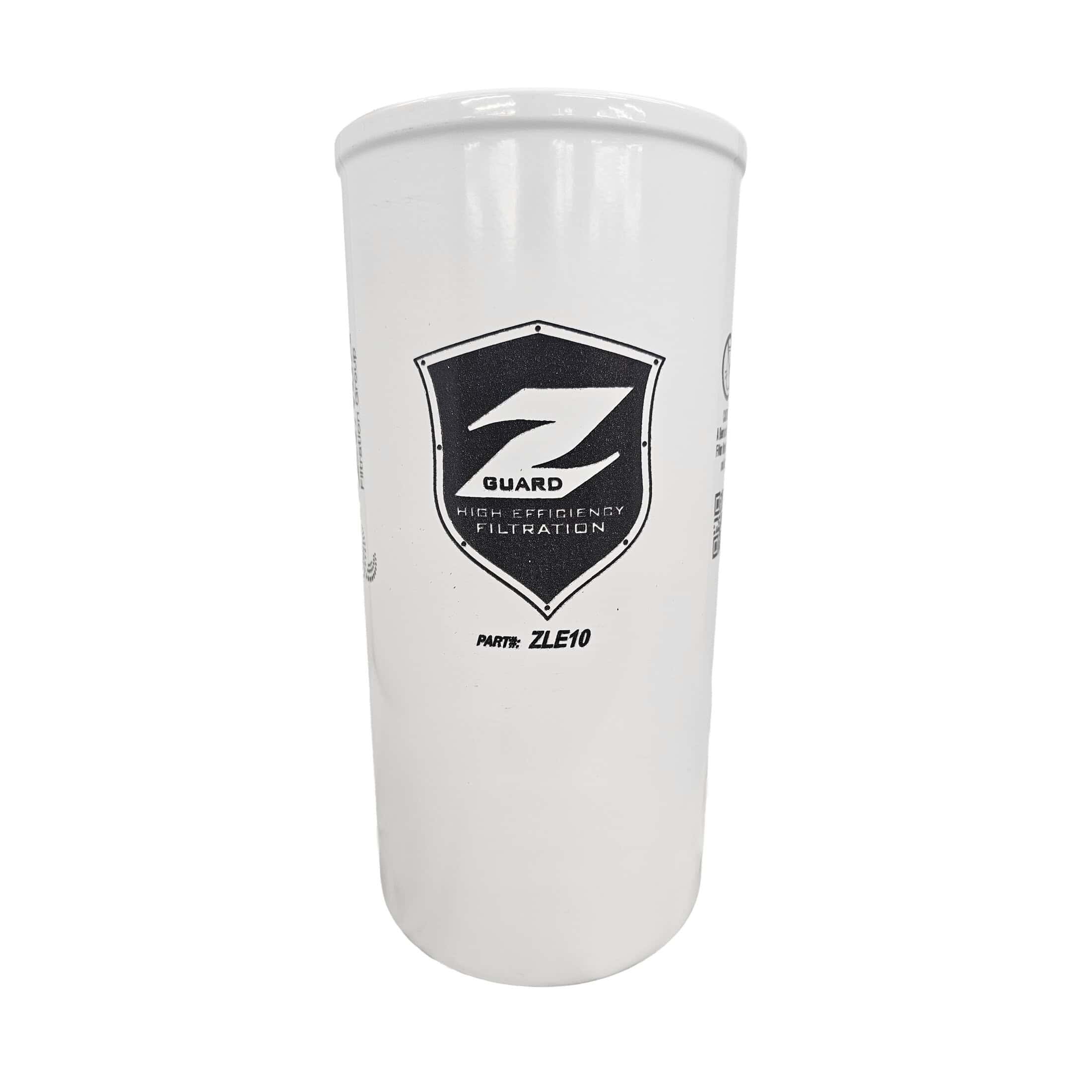

The Zinga ZLE10 is a ZLE Series spin-on filter element with 10 micron Z-Glass media. Z-Glass is a glass fiber media, and the element threads onto a filter head and is changed as one sealed unit. Glass fiber media traps particles through the depth of the material rather than only at its surface.
The element measures 5.1 in in diameter and 10.9 in in overall height, and it mounts on a 1-1/2-16 UN thread. Confirm the thread and height against your filter head and available space. Because 80 psid is the pressure drop the element is built to handle, pair it with a filter head whose bypass setting opens below that figure.
It is rated for 200 psi maximum operating pressure and 80 psid maximum differential pressure. The differential figure is the pressure drop across the media, which rises as the element loads. Operating temperature is rated up to +250°F.
The 10 micron grade gives fine particle control while loading more slowly than a 3 micron grade, and the long body adds media length within the same diameter.
The specifications list petroleum based fluids. Replace the element when the pressure drop rises or at your scheduled service interval.
