$15.29

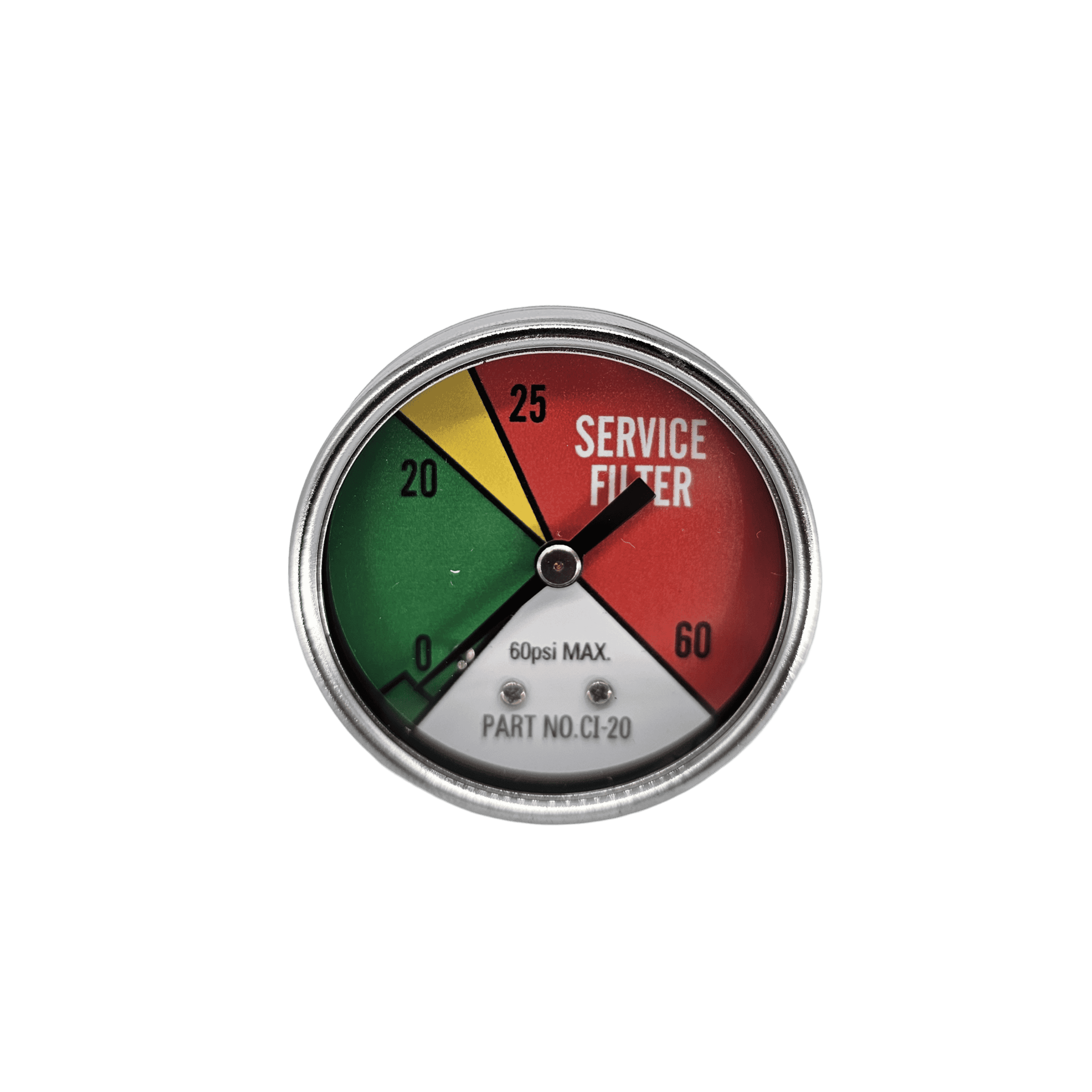

The Zinga CI-20 filter gauge, part number CI-20, reads pressure at a return line filter with a 25 psi bypass valve, so you can see when the element needs service before fluid starts to bypass it.
The 0 to 60 psi dial is color coded: green to 20 psi, yellow from 20 to 25 psi, and a red Service Filter zone above 25 psi. The gauge has a black steel case, a brass stem and an acrylic lens, and operates from -40 to 140 °F.
It connects through a 1/8 in NPTF stem on the back of the case. The dial is 2.01 in in diameter, and the gauge is 1.84 in deep overall, with a 1.20 in case.
Match the gauge to the bypass setting of the filter. The CI Series covers 15, 25 and 50 psi bypass valves on return lines, and GV Series vacuum gauges serve suction line filters. The CI-20 fits 1/8 in NPTF gauge ports on 25 psi bypass filter heads such as the Zinga SF15025123456.
Related categories: Filtration & Fluid Conditioning · Gauges & Indicators · Zinga Filtration
Brand: Zinga Filtration
