$35.30

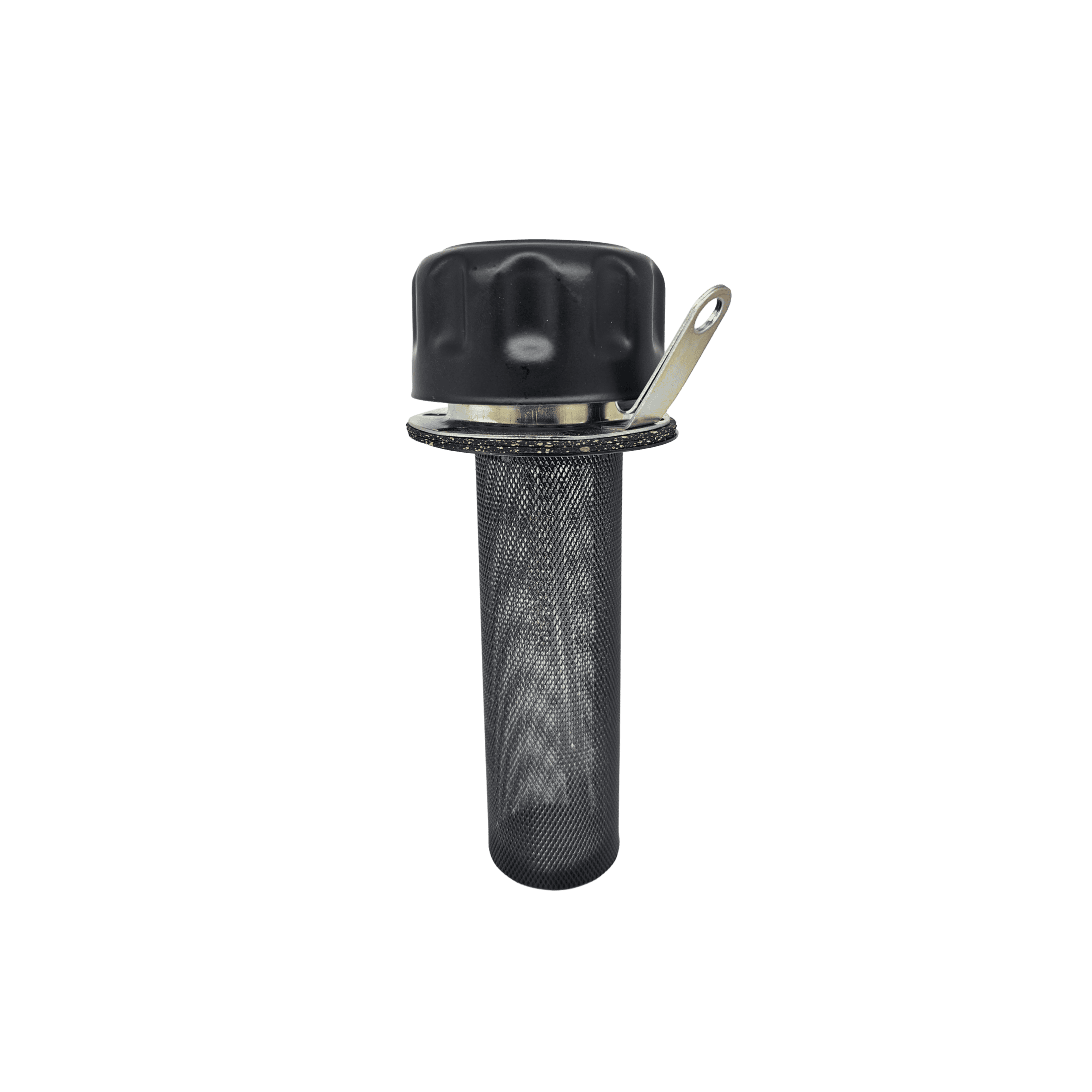

The Zinga WSFB106SDL reservoir filler breather, part number WSFB106SDL, caps the fill opening on a hydraulic reservoir and filters the air the tank draws in through a 10 micron foam element. A reservoir breathes as its fluid level rises and falls, and the foam element keeps airborne dirt out of the incoming air.
A 6 in epoxy coated basket screens fluid as it is poured in, and the dipstick is cut to the same length for a quick level check. The basket is expanded metal, 1-15/16 in in diameter.
The cover is painted black and resists weather. A lock tab with a 5/16 in hole lets you secure the cap, and two rubberized cork gaskets seal the breather to the tank.
The mounting flange is 3-5/16 in in diameter, with six holes 60° apart on a 2.75 to 2.88 in bolt circle. Six 10-32 x 1/2 in self tapping screws come with it, so the tank top does not need pre-tapped holes.
The WSFB Series comes with a 4 in or 6 in dipstick and basket. For the 4 in version, see the WSFB104SDL.
Related categories: Filtration & Fluid Conditioning · Breathers · Zinga Filtration
Brand: Zinga Filtration
