$31.68

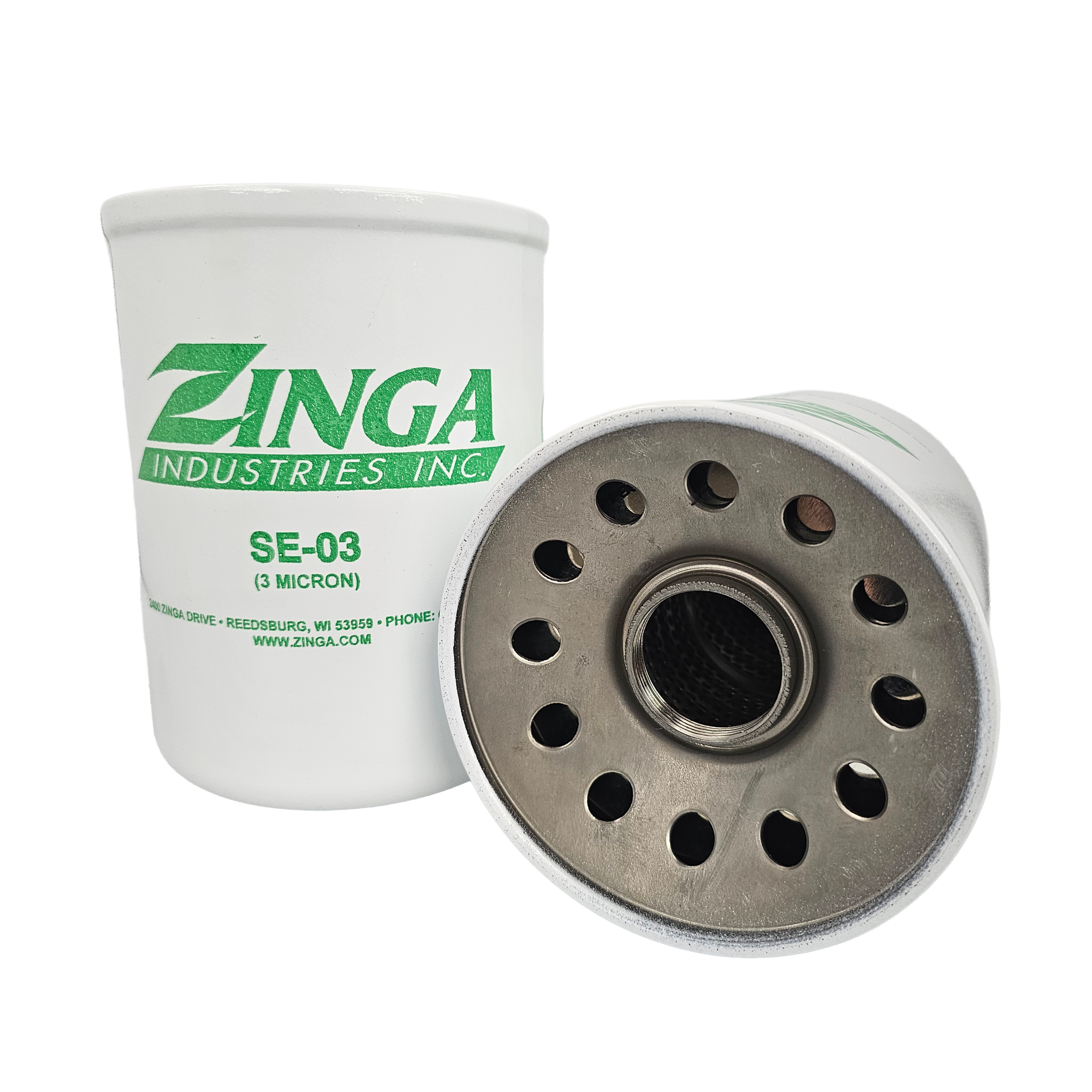

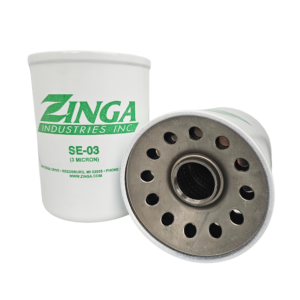

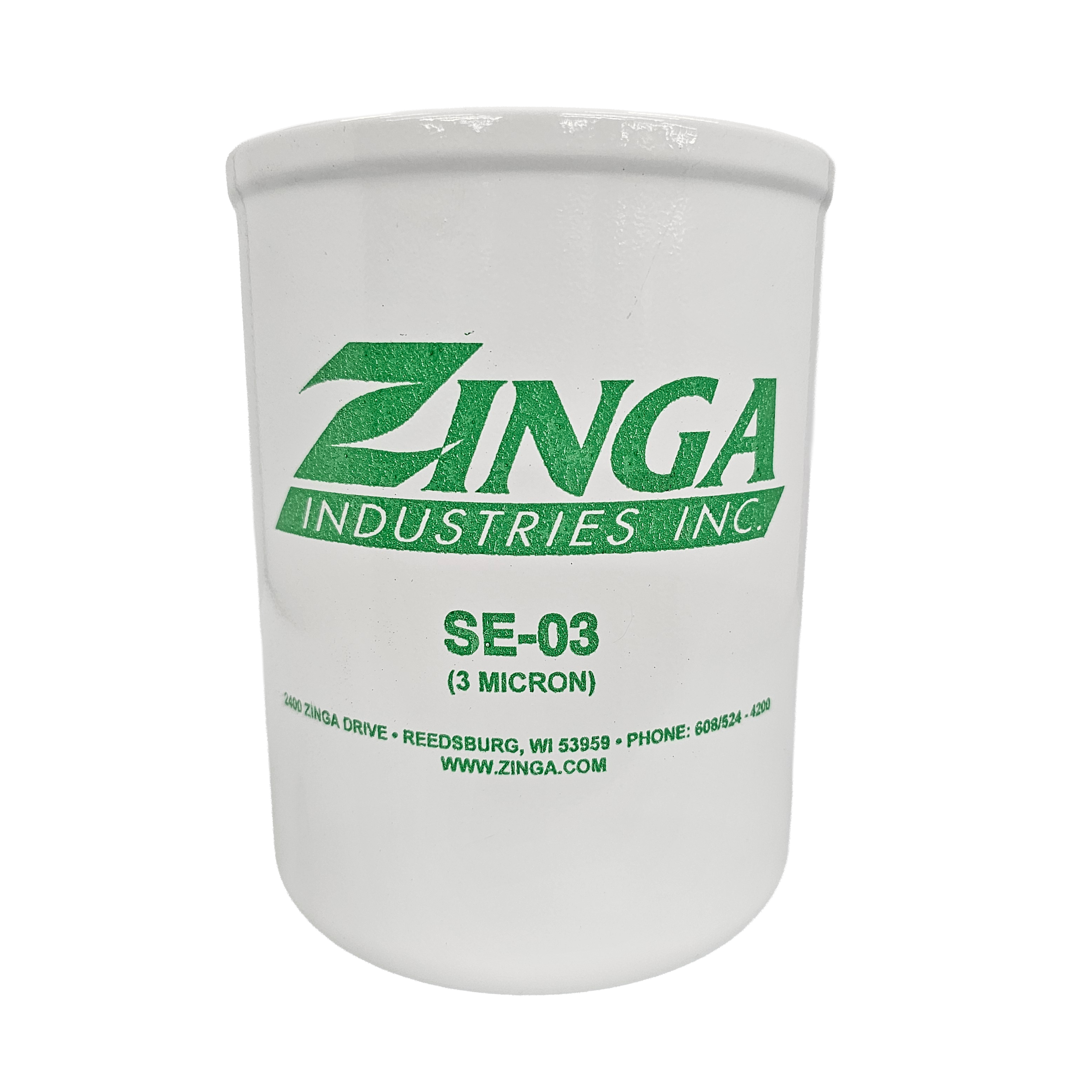

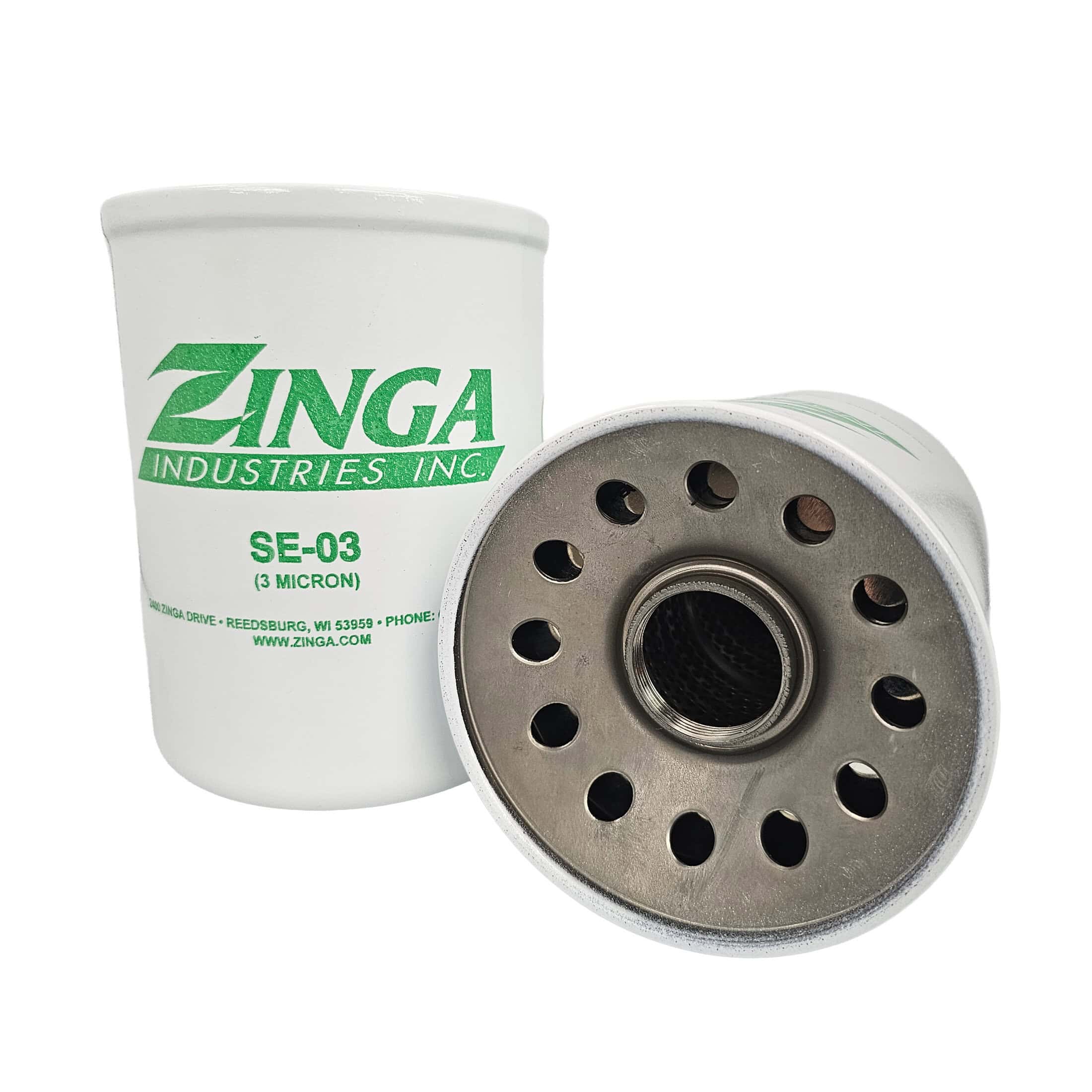

The Zinga SE-03 is an SE Series spin-on filter element with 3 micron cellulose media. Cellulose works as a depth media, trapping particles throughout the thickness of the material rather than only on its surface. A spin-on element threads onto a filter head and is changed as one sealed unit, which keeps service fast and clean.
The element measures 5.1 in in diameter and 6.9 in in overall height, and it mounts on a 1-1/2-16 UN thread. Confirm that thread against your filter head before ordering.
Ratings are 200 psi maximum operating pressure and 50 psid maximum differential pressure. The differential rating covers the pressure drop across the media as it loads, which is separate from system working pressure. Operating temperature is rated up to +250°F.
A 3 micron rating is a fine grade intended for circuits where small particles matter. Fine media captures more of those particles but fills faster than coarser grades in the same body, so plan element changes around the pressure drop.
The specifications list petroleum based fluids. If your circuit runs another fluid type, confirm compatibility before installing.
