$56.89

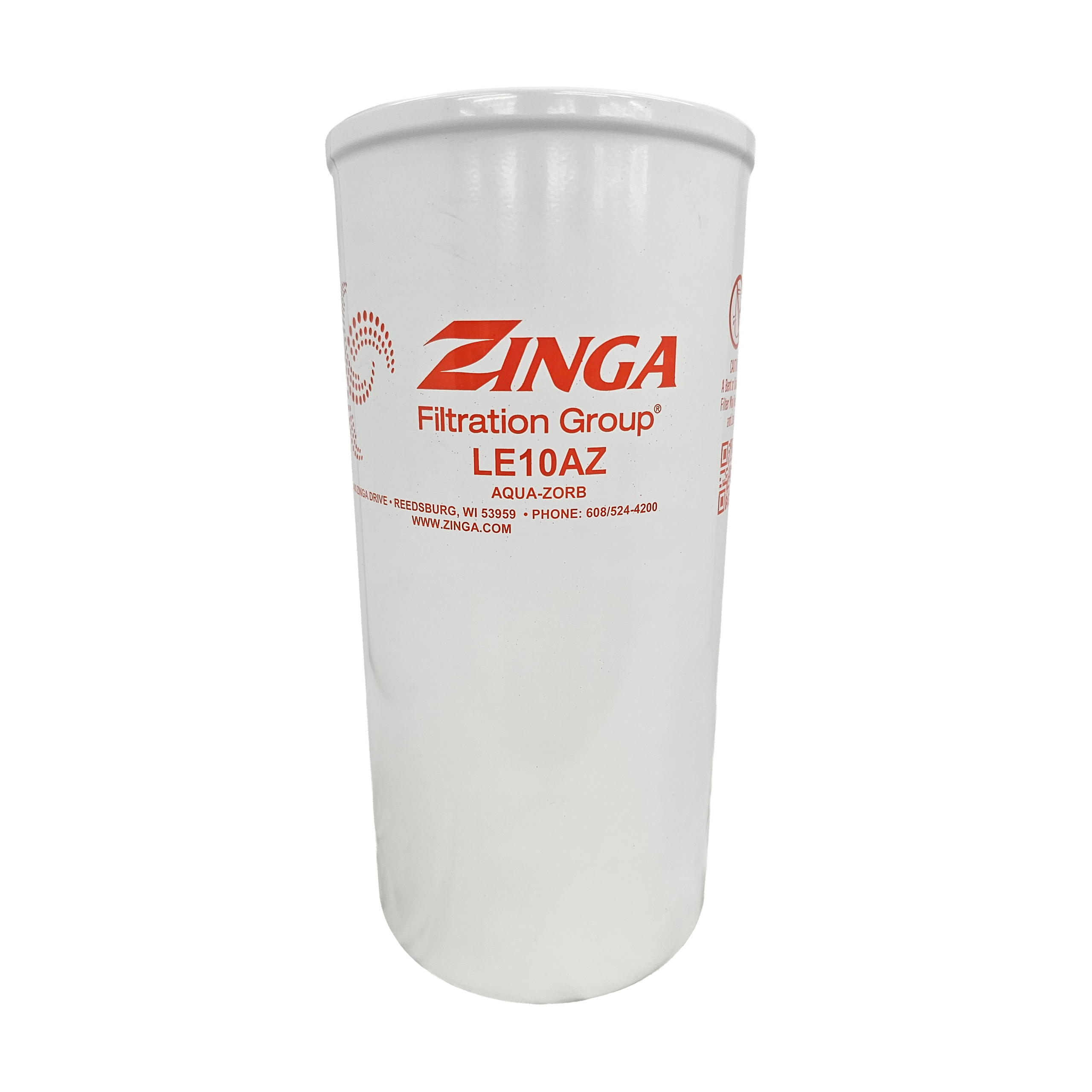

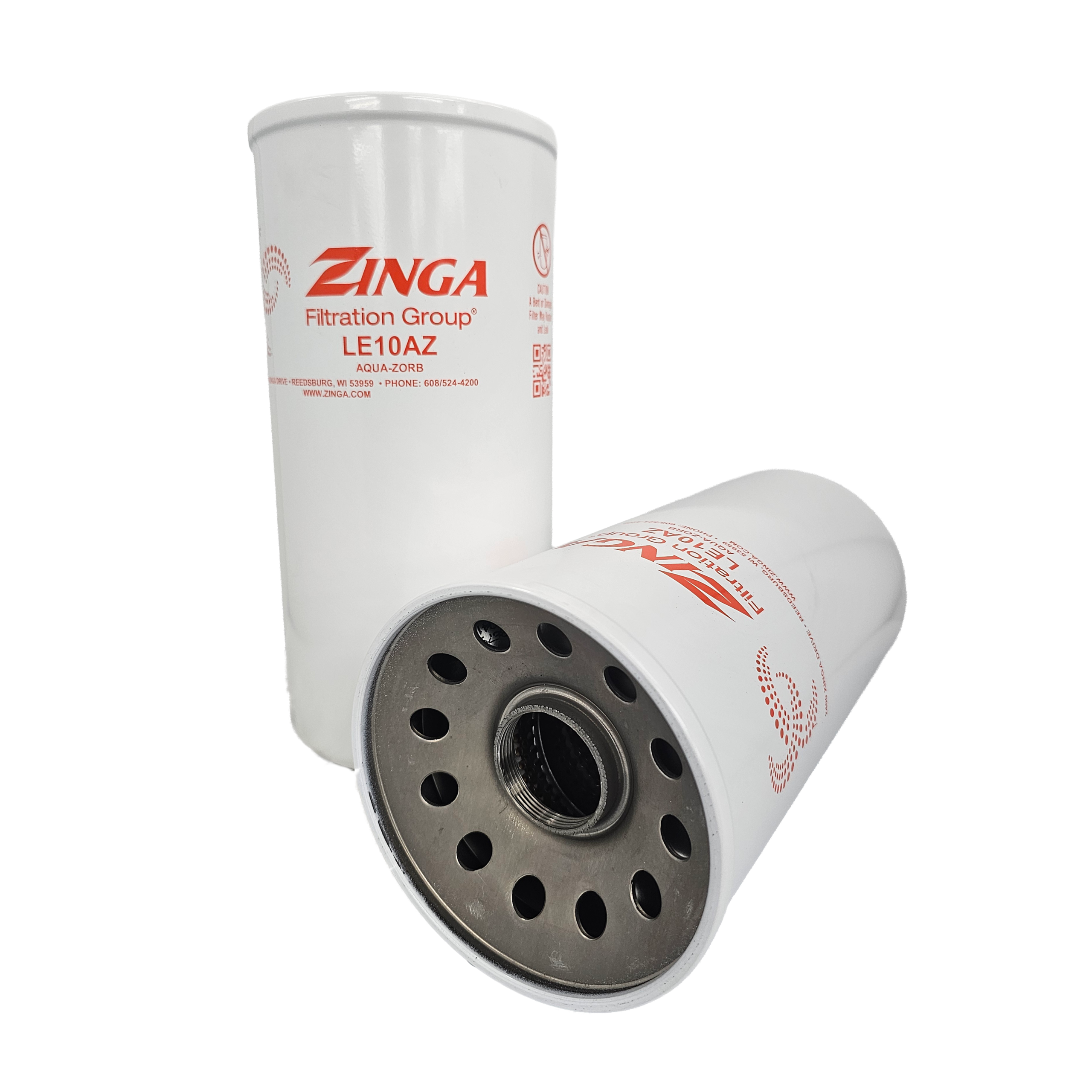

The Zinga LE10AZ is an LE Series spin-on filter element with a 10 micron rating and Aqua-Zorb media. It has a 1 1/2 in-16 UN mounting thread, a 5.1 in diameter and an overall height of 10.9 in.
A spin-on element puts the filter media and its canister into one replaceable unit. At service time, the used element is spun off the filter head and a new one is spun on. There is no housing to open and no separate cartridge to handle.
The element is rated for 200 psi maximum operating pressure. Its maximum differential pressure, the pressure drop across the element, is 50 psid. Operating temperature is rated up to +250°F.
The listed fluid application is petroleum based fluids. Check your system fluid against this before installing the element. The Aqua-Zorb media carries a 10 micron rating, which describes the particle size the media is designed to capture.
At 10.9 in tall and 5.1 in across, the element needs clear space below and around the filter head for installation and removal. When replacing an element, match the series, mounting thread, micron rating, media type and dimensions to the element you are removing.
