Images used may not represent the actual product.
$37.20

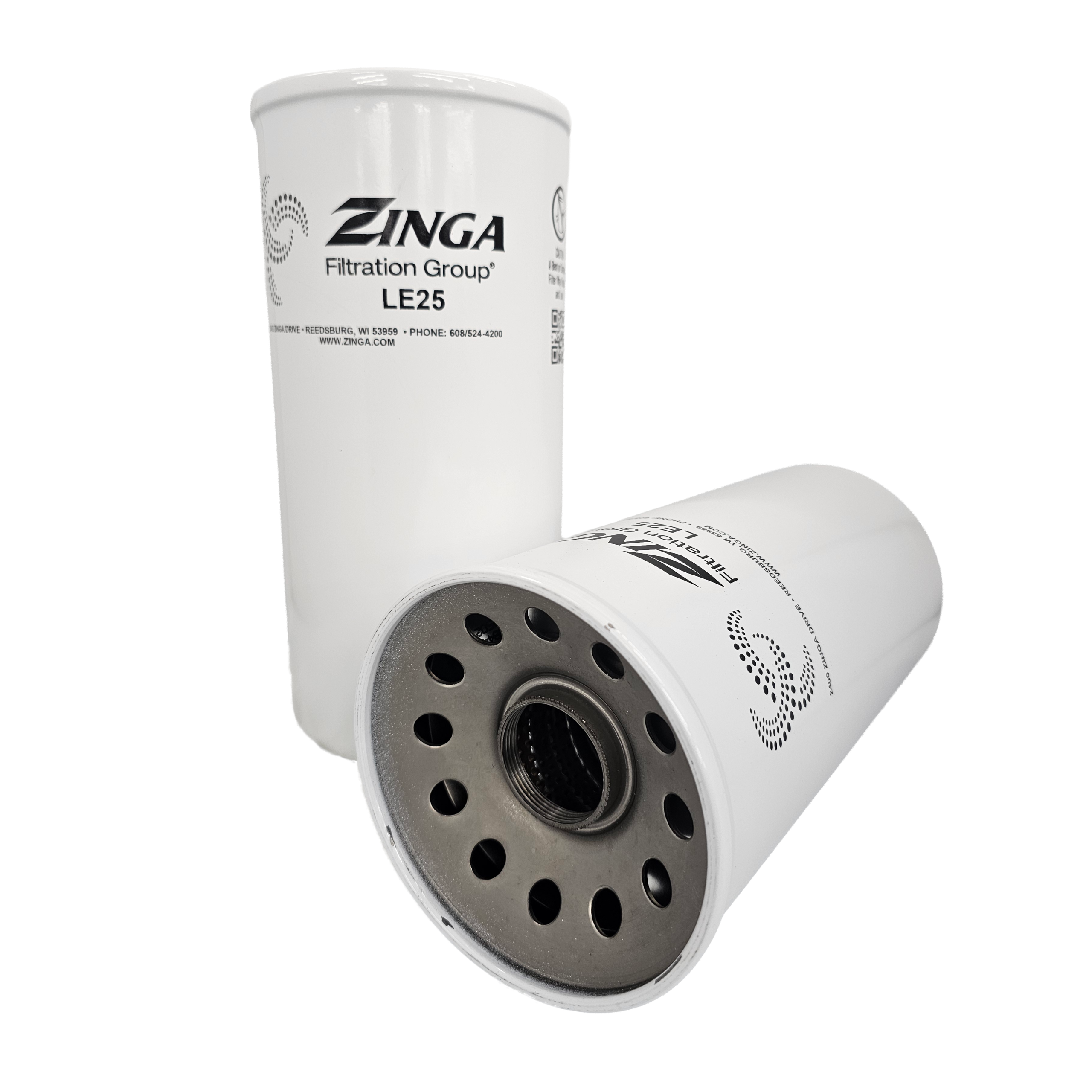

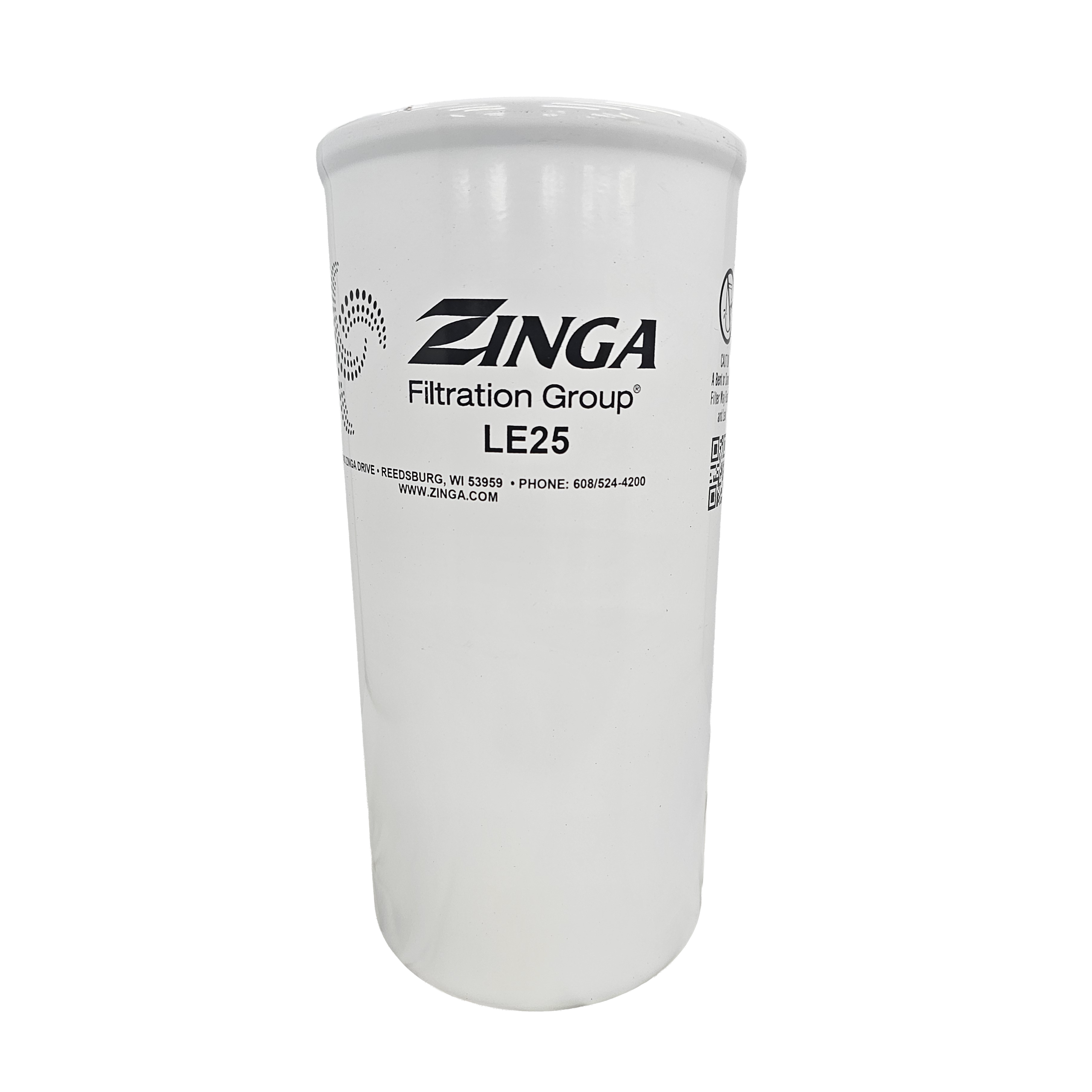

The Zinga LE25 is an LE Series spin-on filter element with 25 micron cellulose media. It screws onto a filter head and is replaced as a single sealed unit when it has loaded with contaminant.
The element is 5.1 in in diameter and 10.9 in in overall height, with a 1-1/2-16 UN mounting thread. Check the thread and the height against your head and the space around it before ordering.
Pressure ratings are 200 psi maximum operating and 50 psid maximum differential. Psid stands for pounds per square inch differential, the drop in pressure across the media, and it rises as the element fills. Operating temperature is rated up to +250°F.
A 25 micron rating is a coarser grade aimed at larger particles. With more open media than fine grades and a long body, it loads slowly and suits circuits where general contamination control is enough.
The specifications list petroleum based fluids. Change the element when the pressure drop climbs or at the service interval set for your equipment.
