$267.63

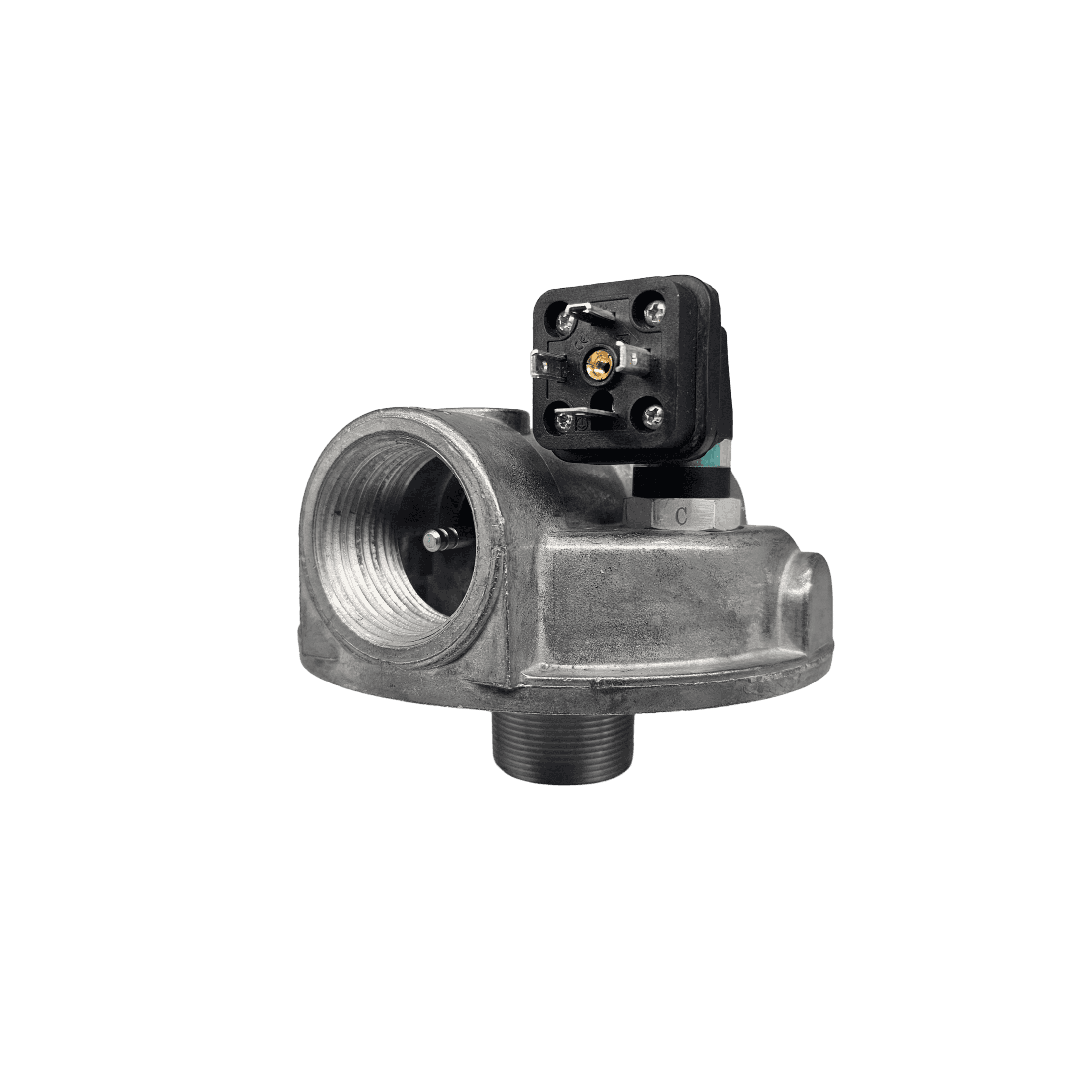

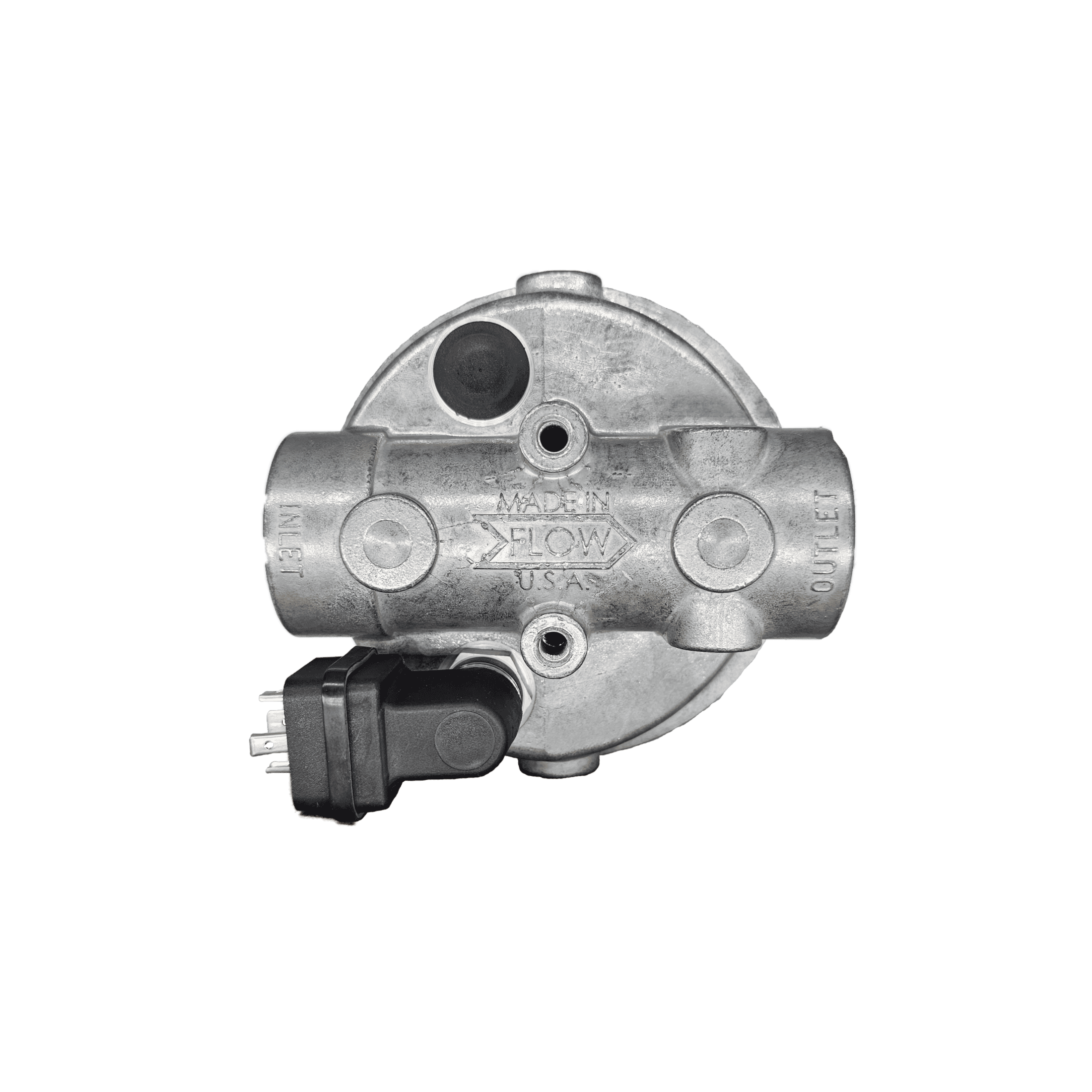

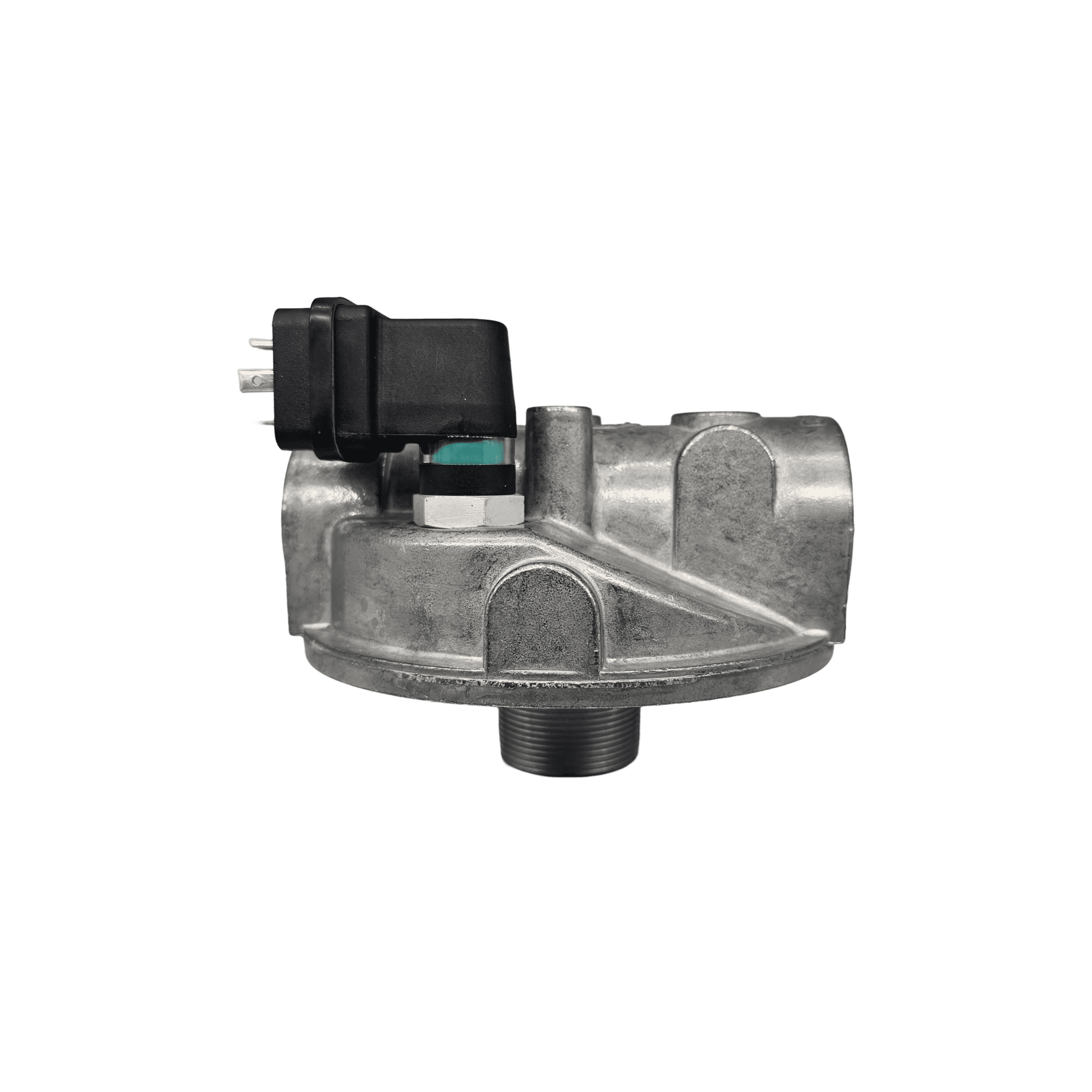

The Zinga SF12225H22000 spin-on filter head, part number SF12225H22000, has 1-1/4 in NPTF ports, a 25 psi bypass and a visual/electrical differential pressure indicator with a DIN connector. It handles up to 70 gpm on return lines and 25 gpm on suction lines.
The SF122 Series head is rated to 200 psi and 200 °F and accepts Zinga SE, LE, ZSE and ZLE Series elements on a 1-1/2-16 thread. The indicator shows element condition at the filter and can also be wired to a control system.
In the part number, 122 is the 1-1/4 in NPTF port, 25 the bypass setting, H22 the visual/electrical indicator with DIN connector in position 1 and 000 no indicator in position 3. Compatible elements we stock include the SE03 and SE10 cellulose elements, the ZSE10 Z-Glass element, the LE03, LE25 and LE10AZ LE Series elements, and the ZLE03, ZLE10 and ZLE25 ZLE Series elements.
It mounts with two 5/16-18 UNC x 9/16 in deep holes. Allow 1.5 in of clearance below the element for removal.
Related categories: Filtration & Fluid Conditioning · Zinga Filtration · Filter Heads
Brand: Zinga Filtration
