$345.55

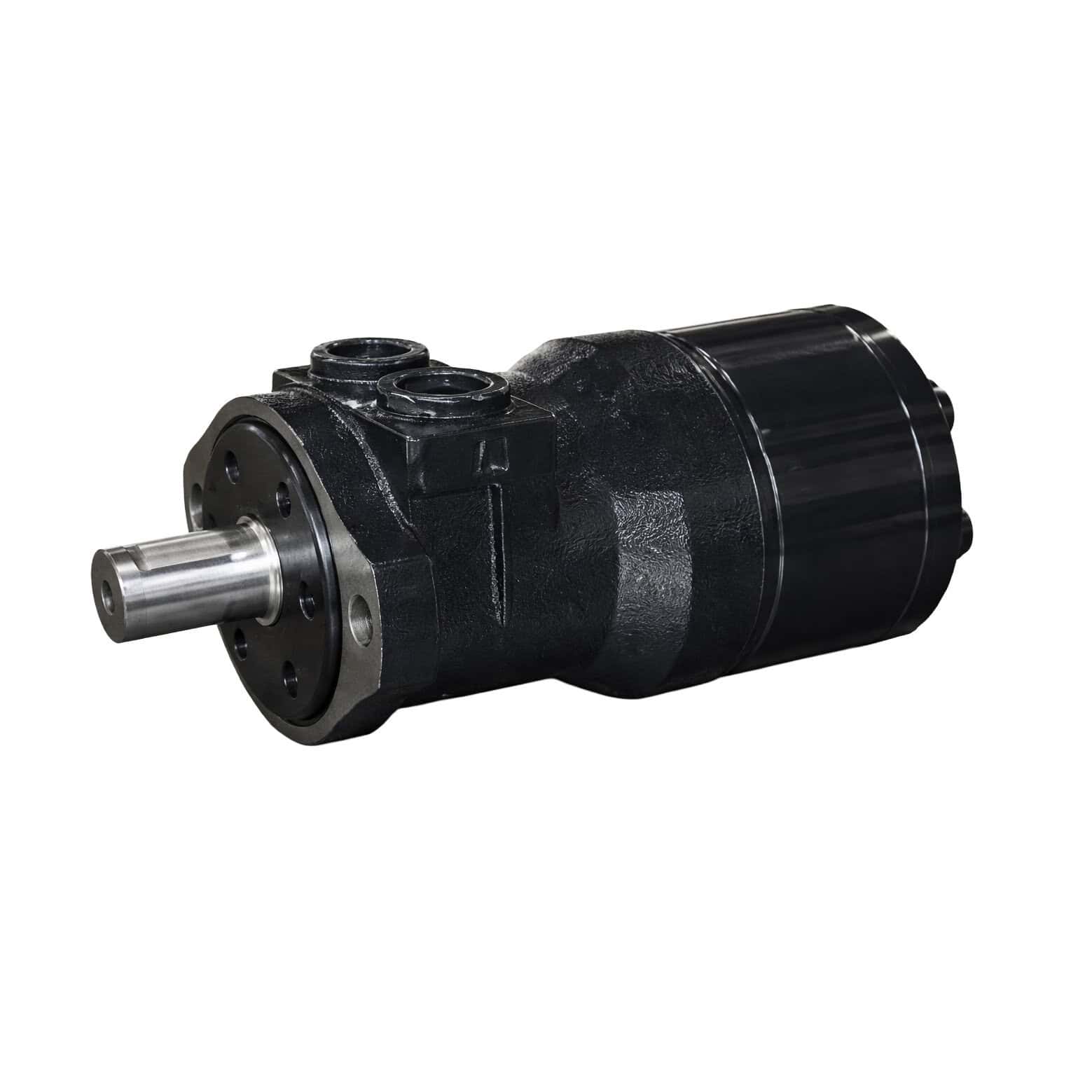

The Hyvair HMS-050-B2KS is an orbital hydraulic motor in the HMS Series. An orbital motor turns hydraulic flow into low speed, high torque rotation, which makes it a direct drive option for loads that would otherwise need a gearbox.
The motor is rated for 10.6 gpm of flow and a maximum speed of 770 rpm. Maximum torque is 885 in-lb continuous and 1044 in-lb intermittent. Maximum pressure is 2031 psi continuous and 2538 psi intermittent. Rated output is 9 hp.
Continuous ratings apply to steady operation. Intermittent ratings cover short periods, such as starting a load or working through a peak, and should not be used as the normal operating point.
The motor mounts on an SAE A 2-bolt flange with a 3.25 in pilot. The output shaft is a 1 in straight keyed shaft with a 1/4 in key. Ports are 7/8-14 UNF O-ring ports, which seal with an O-ring on the fitting.
Speed follows flow, and torque follows pressure. To size the motor, check that pump flow at this motor stays within 10.6 gpm and that the relief setting keeps working pressure within the continuous rating for normal duty.
