Images used may not represent the actual product.
$52.84

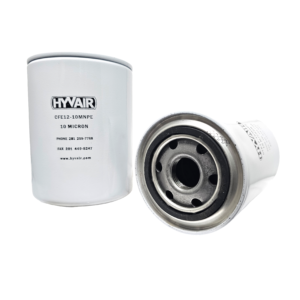

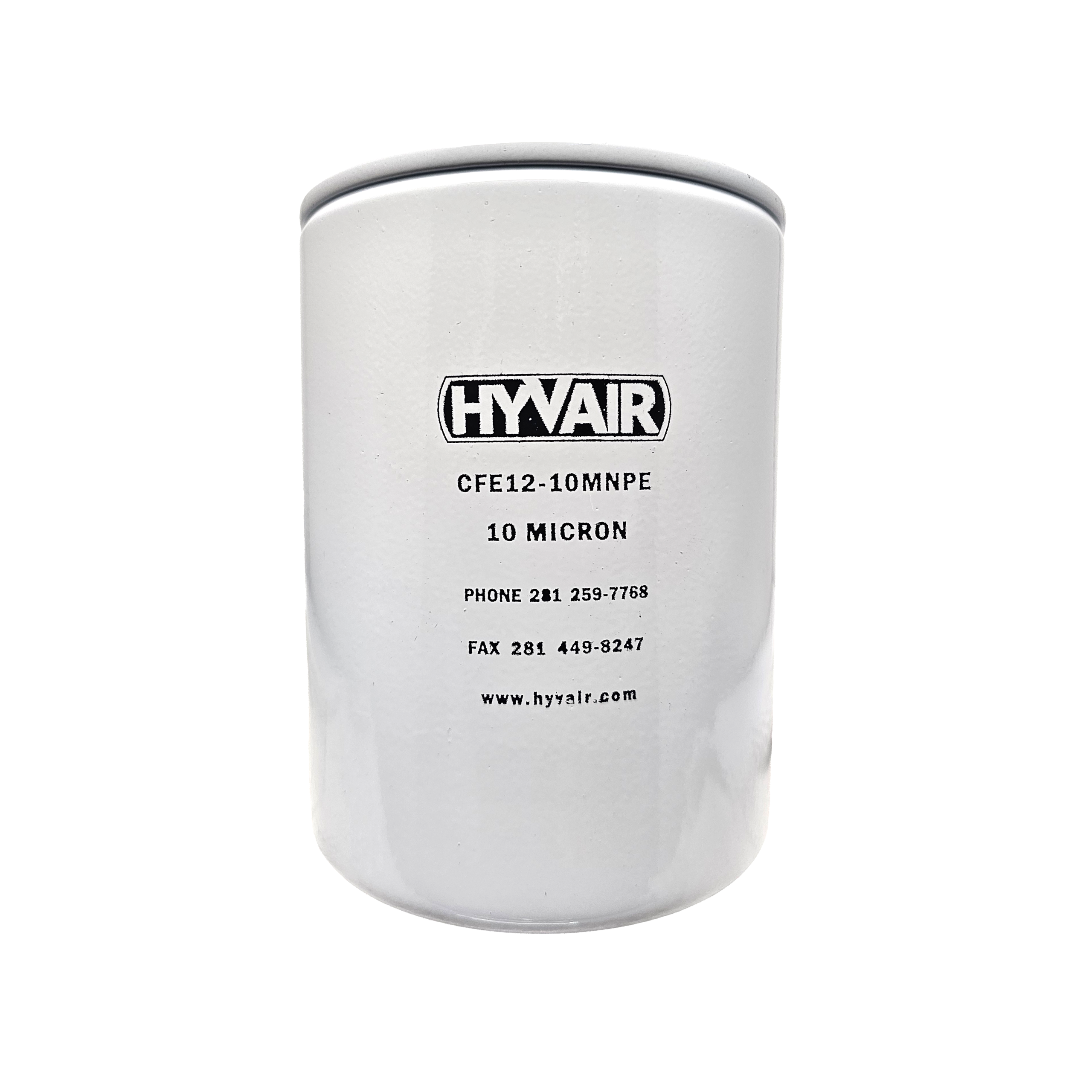

The Hyvair CFE12-10MNPE is a CF Series spin-on filter element rated at 10 micron. It has a 3/4 in NPT port size and a 1 in-12 UNF mounting thread, and it uses resin treated paper media.
A spin-on element combines the filter media and its canister in one replaceable unit. To service it, the old element is spun off the filter head and a new one is spun on in its place. There is no housing to open and no loose cartridge to handle.
The element measures 3.80 in in diameter and 5.75 in in overall height. Check the clearance around the filter head before installation, since the element needs room to be turned on and off. The maximum pressure rating is 60 psid. The listed temperature range is -15°F to +230°F.
Fluid compatibility covers petroleum based fluids in ISO VG32 to 68, phosphate ester, most vegetable oils, and water based fluids up to 40% water. Confirm your fluid type against this list before ordering.
The 10 micron rating describes the particle size the resin treated paper media is designed to capture. When replacing an element, match the series, micron rating, mounting thread and height to the element being removed.
Related categories: Filtration & Fluid Conditioning · Spin-On Filter Elements · AE Series
Brand: Hyvair
