$53.92

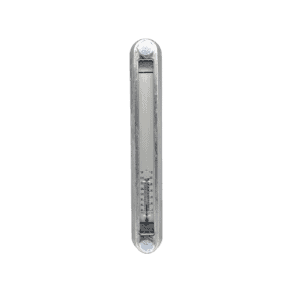

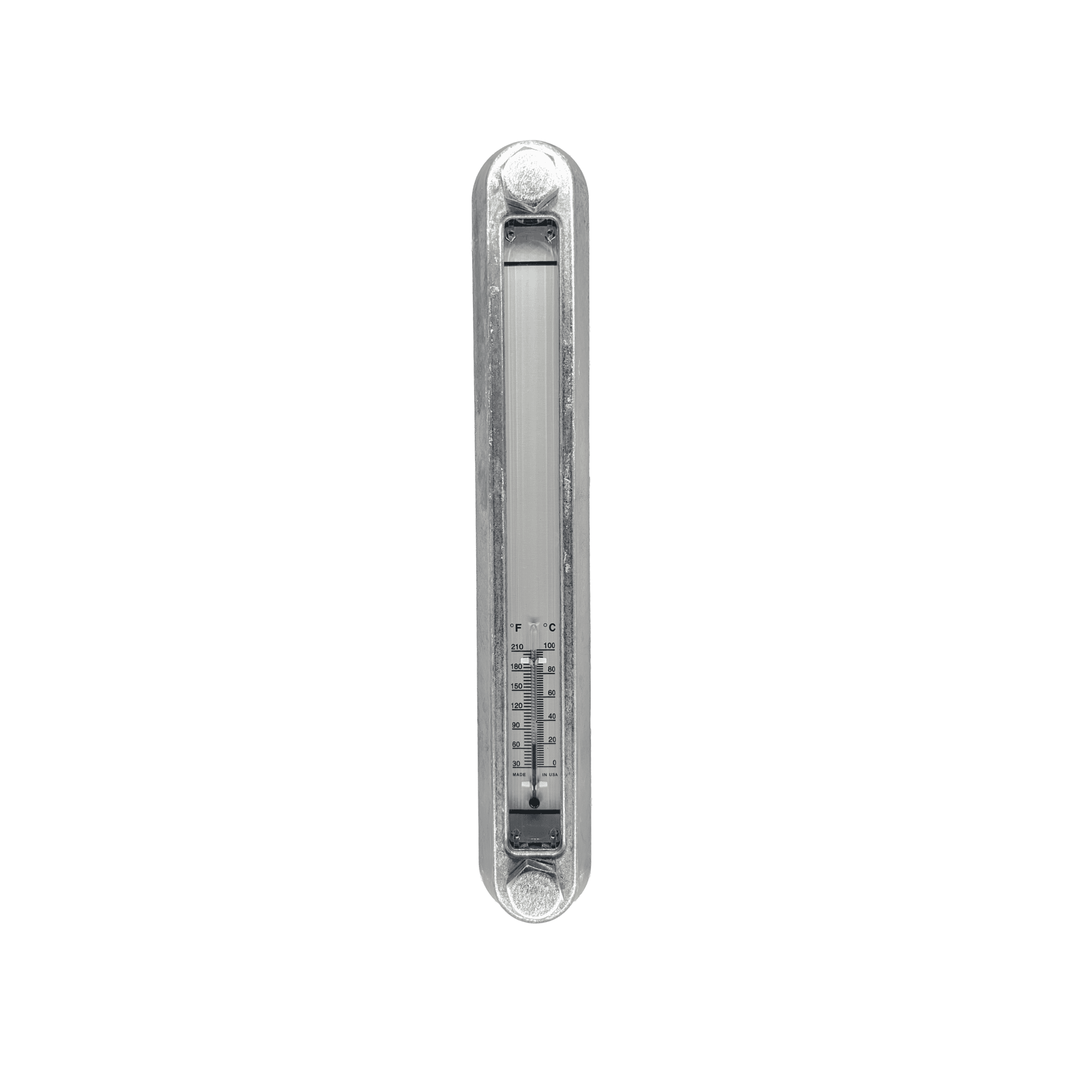

The Zinga SG10ATG reservoir sight level gauge, part number SG10ATG, shows fluid level and temperature at a glance on a hydraulic reservoir. It mounts on 10 in bolt centers with 1/2-13 UN bolts, and an aluminum guard protects the UV resistant housing.
A sight gauge shows fluid level without opening the reservoir. The built-in thermometer reads fluid temperature right beside the level window, so one walk-by check covers both level and temperature. The gauge is rated to 212°F maximum.
The SG Series comes in 3, 5 and 10 in bolt center lengths, so you can match the gauge to the fill range of the reservoir. This 10 in model is the longest in the series, with an overall length of 11.75 in and a width of 1.75 in.
The aluminum guard shields the long housing from knocks, and the UV resistant housing holds up to sunlight exposure. Bolt centers set the hole spacing on the tank wall, so measure the existing holes when you replace a gauge.
It works with petroleum base and water base hydraulic fluids. Check with us before using it with other fluids.
Related categories: Filtration & Fluid Conditioning · Zinga Filtration
Brand: Zinga Filtration
