$35.49

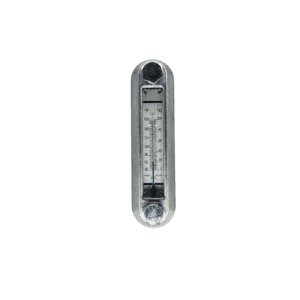

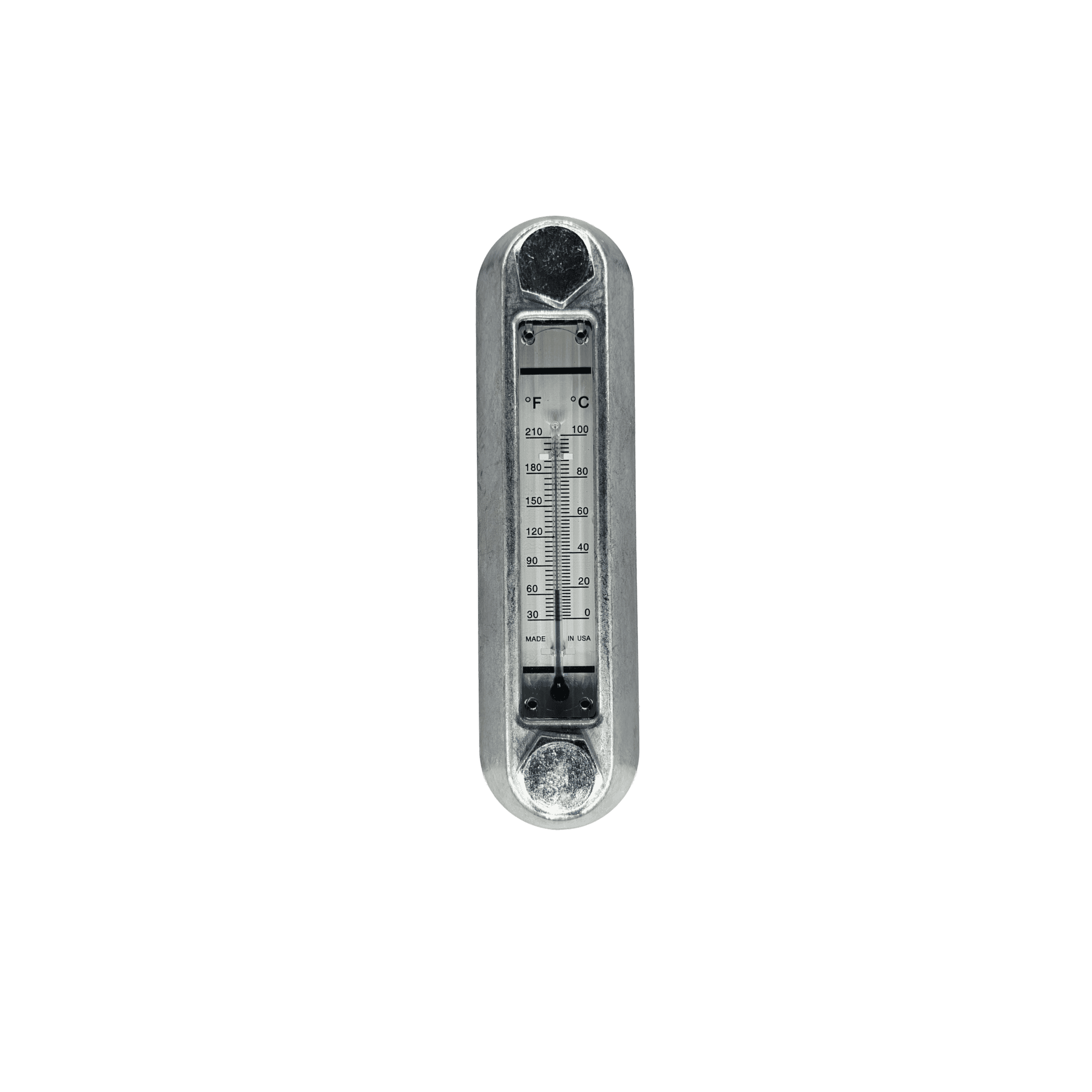

The Zinga SG05ATG reservoir sight level gauge, part number SG05ATG, shows fluid level and temperature at a glance on a hydraulic reservoir. It mounts on 5 in bolt centers with 1/2-13 UN bolts, and an aluminum guard protects the UV resistant housing.
With a sight gauge, you can check fluid level without opening the tank. The built-in thermometer sits beside the level window and reads fluid temperature, so a single walk-by check covers both. The gauge is rated to 212°F maximum.
The SG Series comes in 3, 5 and 10 in bolt center lengths, so you can match the gauge to the fill range of the reservoir. This 5 in model is the middle size, with an overall length of 6.75 in and a width of 1.75 in.
The aluminum guard shields the housing from knocks, and the UV resistant housing holds up to sunlight exposure. Bolt center distance sets the hole spacing on the tank wall, so measure the existing holes before you order a replacement.
It works with petroleum base and water base hydraulic fluids. Check with us before using it with other fluids.
Related categories: Filtration & Fluid Conditioning · Zinga Filtration
Brand: Zinga Filtration
