$33.20

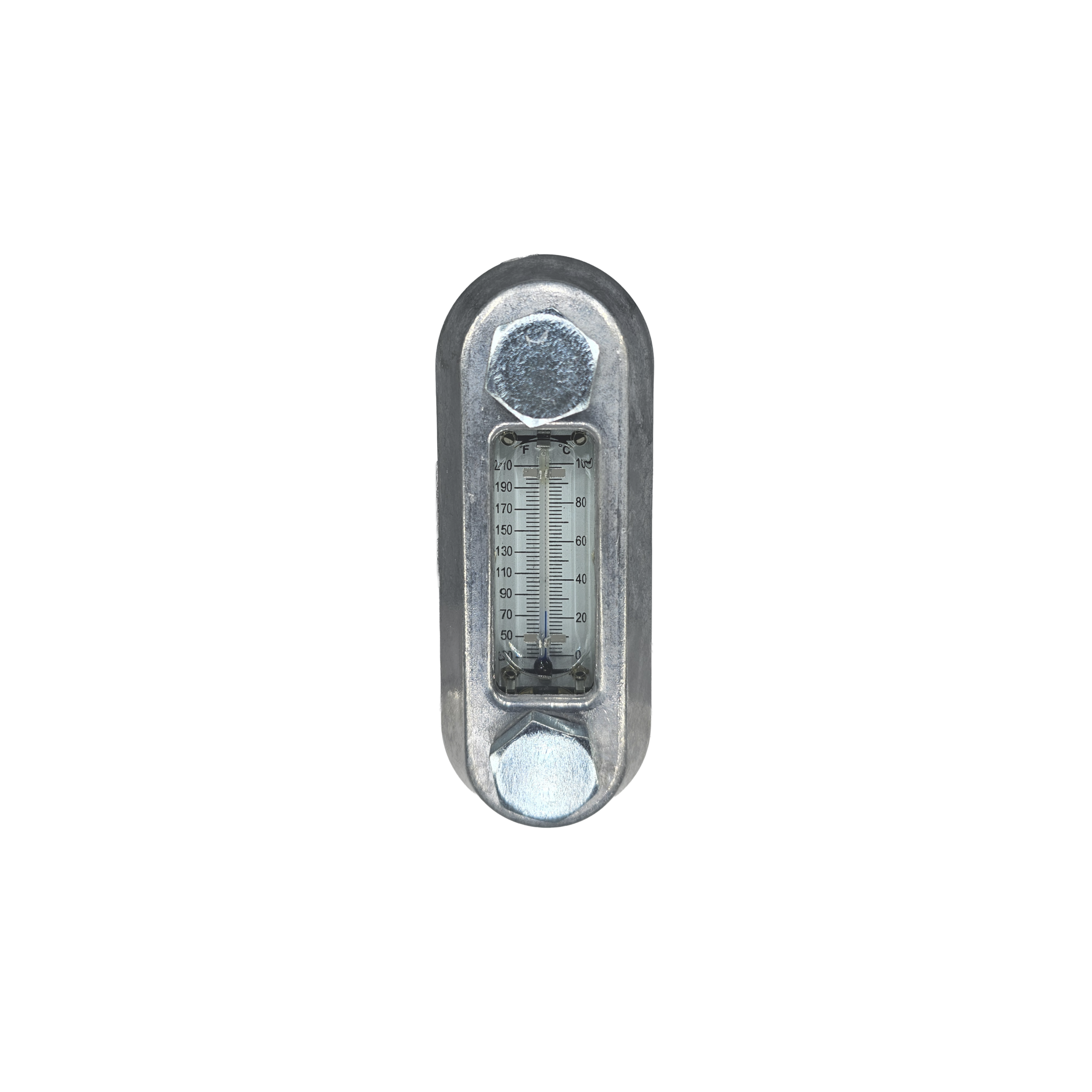

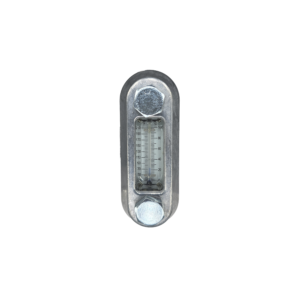

The Zinga SG03ATG reservoir sight level gauge, part number SG03ATG, shows fluid level and temperature at a glance on a hydraulic reservoir. It mounts on 3 in bolt centers with 1/2-13 UN bolts, and an aluminum guard protects the UV resistant housing.
A sight gauge lets you confirm fluid level without opening the reservoir. A built-in thermometer reads fluid temperature beside the level window, so one walk-by check covers both level and temperature. The gauge is rated to 212°F maximum.
The SG Series comes in 3, 5 and 10 in bolt center lengths, so you can match the gauge to the fill range of the reservoir. This 3 in model is the shortest in the series, with an overall length of 4.75 in and a width of 1.75 in.
The aluminum guard shields the housing from knocks, and the UV resistant housing holds up to sunlight exposure. Bolt centers set the hole spacing on the tank wall, so measure the existing holes when you replace a gauge.
It works with petroleum base and water base hydraulic fluids. Check with us before using it with other fluids.
Related categories: Filtration & Fluid Conditioning · Zinga Filtration
Brand: Zinga Filtration
