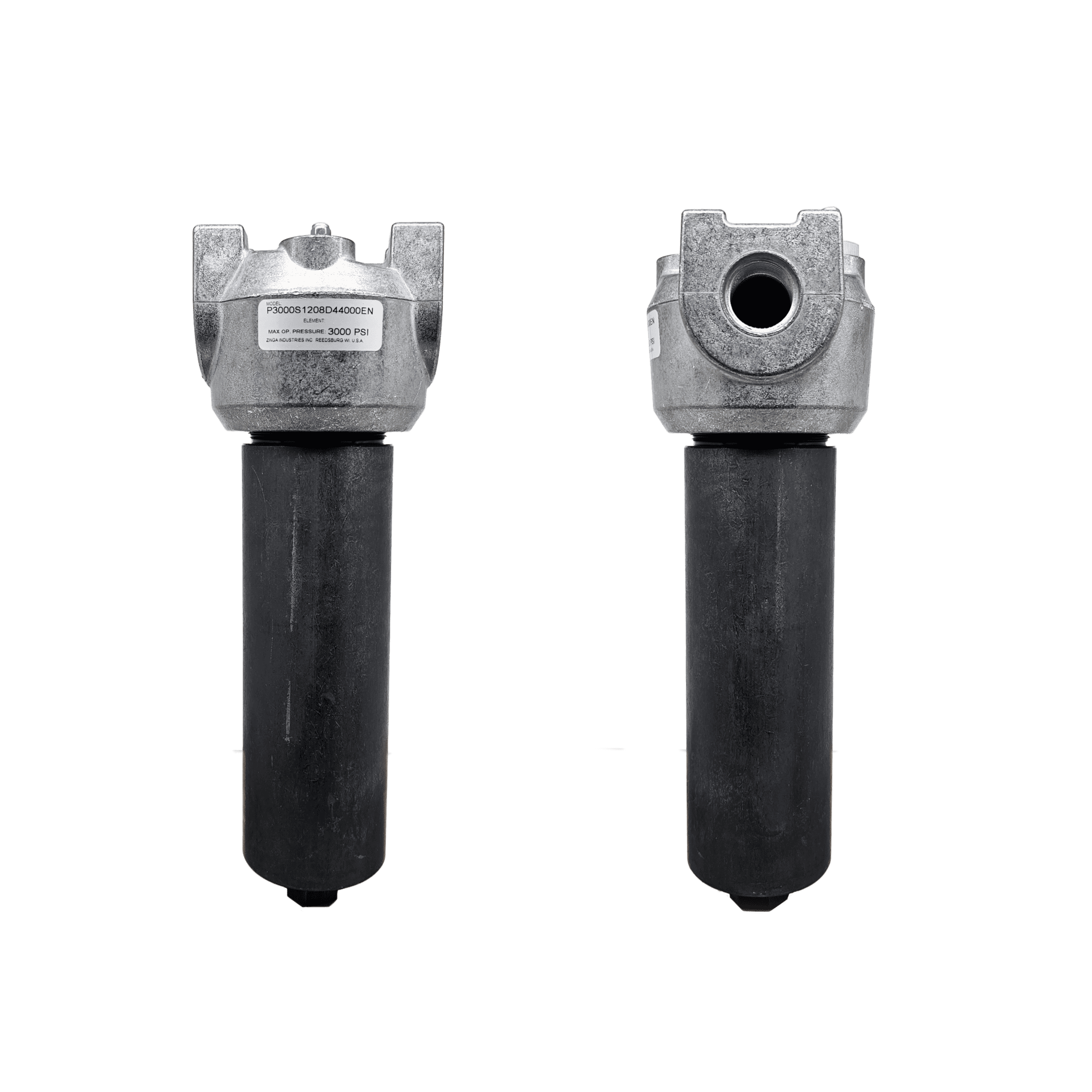

Zinga P3000S1208D44000EN Pressure Filter Housing – No Element – 30 GPM – 3000 PSI – 1 1/16″-12 UN (SAE-12) Port Size – 8″ Nominal Bowl Length – DC Electrical Single Wire Indicator – 50 PSID By-Pass – Buna “N” Housing Seal

Part P3000S1208D44000EN
PID 8379

$189.11

The Zinga P3000S1208D44000EN pressure filter housing, part number P3000S1208D44000EN, protects high pressure hydraulic circuits with up to 30 gpm of flow at 3000 psi. It has 1-1/16 in-12 UN (SAE-12) ports, an 8 in bowl and a DC electrical single wire indicator that signals when the element needs service. Compatible with Zinga G Series Pressure Filters: G0803LN, G0803HN, G0806LN, G0810HN, G0810LN, G0820LN.

Description

The Zinga P3000S1208D44000EN pressure filter housing, part number P3000S1208D44000EN, protects high pressure hydraulic circuits with up to 30 gpm of flow at 3000 psi. It has 1-1/16 in-12 UN (SAE-12) ports, an 8 in bowl and a DC electrical single wire indicator that signals when the element needs service.

A die cast aluminum head and anodized 6061-T6 aluminum bowl carry an 8600 psi burst rating and a 2000 psi rated fatigue pressure. The 50 psid nylon bypass valve protects the element (not included), and Buna-N housing seals suit petroleum based fluids. Typical uses include inline filtration, external charge pump filtration and high shock return lines.

The filter accepts Zinga G Series 8 in elements with Z-Glass fiber media, offered in 3, 6, 10 and 20 micron grades. 3 and 10 micron elements also come in a high collapse version rated to 3000 psid; standard elements are rated to 150 psid.

In the part number, S12 is the SAE-12 port, 08 the 8 in bowl, D44 the DC electrical indicator in position 1, 000 no indicator in position 2, E the 50 psid bypass and N the Buna-N housing seal. For a visual indicator instead, see the P3000S1208V44000EN.

Operating temperature is -40 to 250 °F. The filter mounts with 5/16-18 UN x 5/8 in deep holes and needs 1.5 in of clearance for bowl removal.

Compatible with Zinga G Series Pressure Filters: G0803LN, G0803HN, G0806LN, G0810HN, G0810LN, G0820LN.

Related categories: Filtration & Fluid Conditioning · Zinga Filtration · Zinga Pressure Filters · Zinga P3000 Series

Brand: Zinga Filtration

In stock in Memphis, TN — ships fast. Call (901) 946-1500 for freight or a quote.

Specifications

Brand
Zinga Filtration
Series
P3000
Product Type
Pressure Filter
Max Flow
30 gpm / 114 L/min
Port Size
1-1/16 in-12 UN (SAE-12)
Max Operating Pressure
3000 psi / 207 bar
Burst Pressure
8600 psi / 580 bar
Rated Fatigue Pressure
2000 psi / 138 bar
Nominal Bowl Length
8 in
Indicator, Position 1
DC electrical, single wire, DP06 Series
Indicator, Position 2
None
Bypass Setting
50 psid
Housing Seal
Buna-N
Operating Temperature
-40 to 250 °F
Head Material
Die cast aluminum
Bowl Material
Anodized aluminum, 6061-T6
Compatible Elements
Zinga G Series, 8 in, Z-Glass media
Mounting
5/16-18 UN x 5/8 in deep holes
Bowl Removal Clearance
1.5 in
Bypass Valve Material
Nylon
Shipping details
Weight5.2 lbs
Dimensions (in)4.0L × 3.28W × 10.3H
