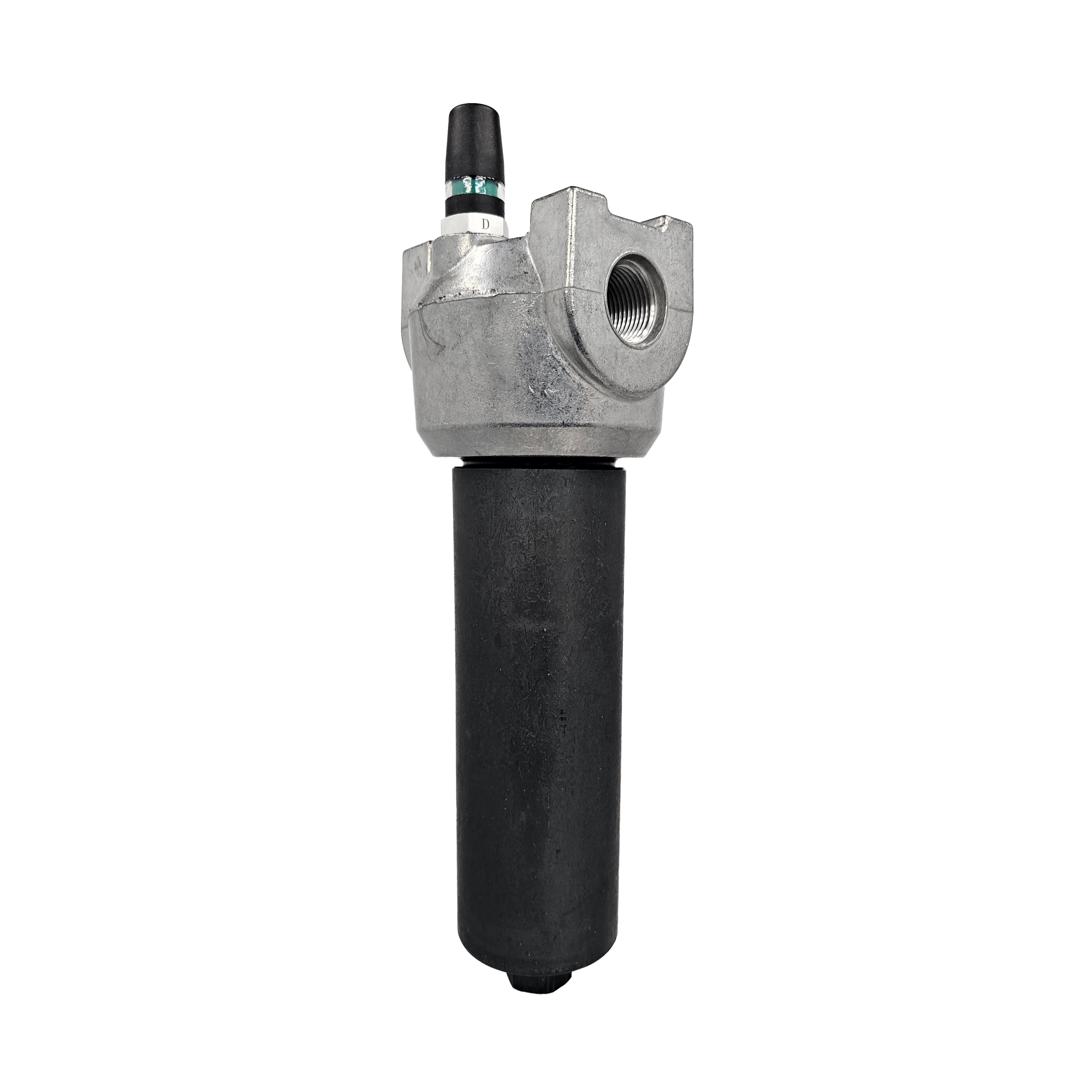

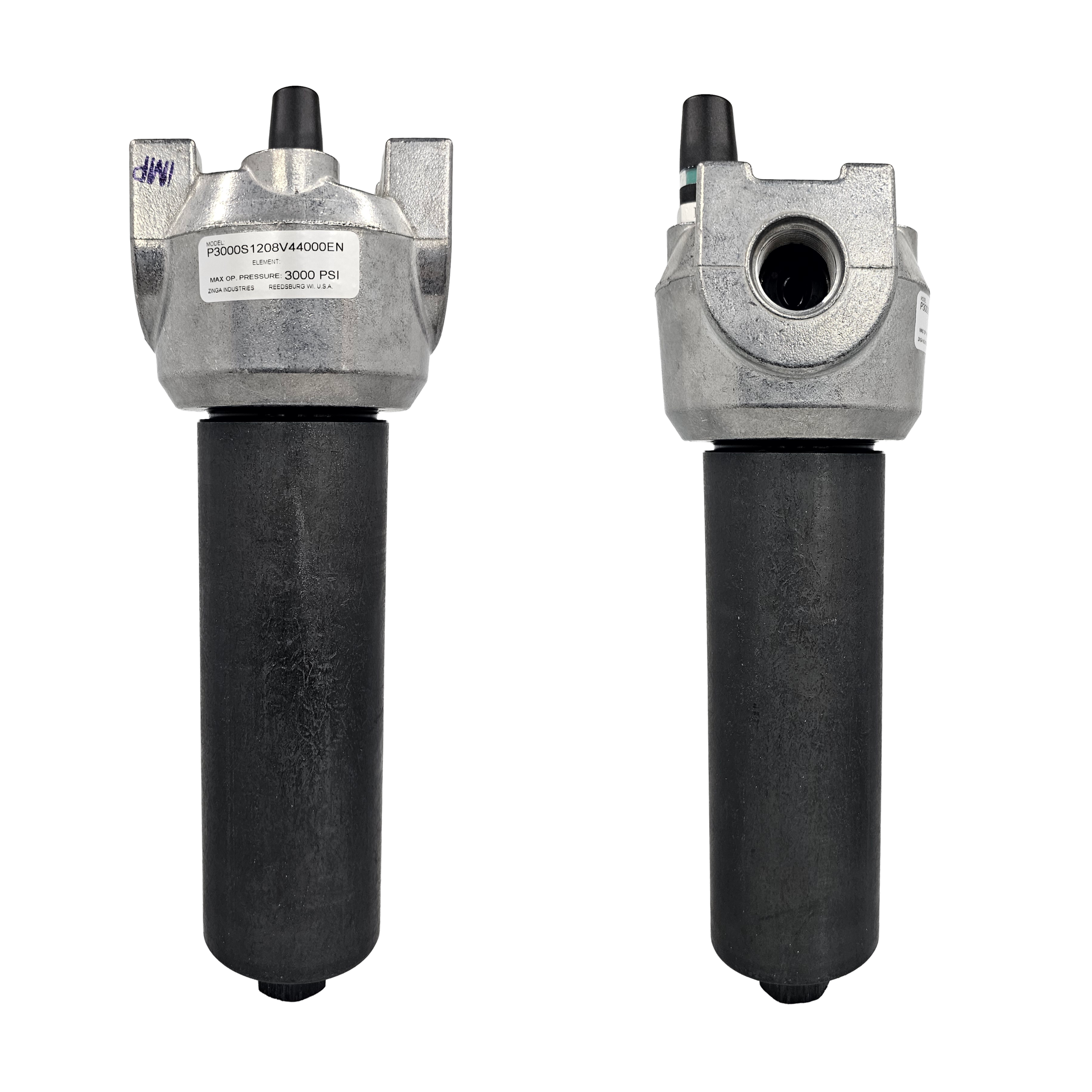

Zinga P3000S1208V44000EN Pressure Filter Housing – No Element – 30 GPM – 3000 PSI – 1 1/16″-12 UN (SAE-12) Port Size – 8″ Nominal Bowl Length – Visual Indicator – 50 PSID By-Pass – Buna “N” Housing Seal

Part P3000S1208V44000EN
PID 5409

$238.59

Zinga P3000S1208V44000EN P3000 Series pressure filter housing rated for 30 gpm and 3,000 psi maximum operating pressure. It has SAE-12 ports, an 8 in nominal bowl, a DP04 Series visual indicator and a 50 psid by-pass. Compatible with Zinga G Series Pressure Filters: G0803LN, G0803HN, G0806LN, G0810HN, G0810LN, G0820LN.

Description

The Zinga P3000S1208V44000EN is a P3000 Series pressure filter housing rated for 30 gpm and 3,000 psi maximum operating pressure. A pressure filter installs in a pressurized line and cleans fluid on its way to downstream components, so its housing has to hold full circuit pressure.

Ports are 1-1/16-12 UN, also known as SAE-12. The filter uses an 8 in nominal bowl length, and the housing seal is Buna-N. The listed operating temperature range is -40°F to +250°F.

This configuration includes a visual indicator from the DP04 Series. The indicator gives a visible signal of element condition, so maintenance staff can see when the element is loading without opening the housing.

The by-pass is set at 50 psid. When the pressure drop across the element reaches that point, the by-pass valve opens and lets fluid flow around the element rather than forcing it through loaded media. Unfiltered fluid passes while the by-pass is open, which is why an indicator is useful.

The specifications list petroleum based fluids and the following uses for the series: inline filtration, external charge pump filtration and high shock return line filtration. Confirm port size, bowl length and flow requirements for your circuit before ordering.

Compatible with Zinga G Series Pressure Filters: G0803LN, G0803HN, G0806LN, G0810HN, G0810LN, G0820LN.

Related categories: Filtration & Fluid Conditioning · Zinga Filtration · Zinga Pressure Filters · Zinga P3000 Series

Brand: Zinga Filtration

In stock in Memphis, TN — ships fast. Call (901) 946-1500 for freight or a quote.

Specifications

Series
P3000 Series
Flow
30 GPM
Port Size
1 1/16"- 12 UN (SAE 12)
Max. Operating Pressure
3,000 PSI
Applications
Petroleum Based Fluids, Inline Filtration, External Charge Pump Filtration, High Shock Return Line Filtration
Temperature
-40 F to + 250 F (-4 C to +120 C)
Nominal Bowl Length
8 Inches
Indicator Position 1
Visual (DP04 Series)
By-Pass
50 PSID
Housing Seal Material
Buna "N"
Shipping details
Weight5.2 lbs
Dimensions (in)11.53L × 4W × 2.73H
