$10.82

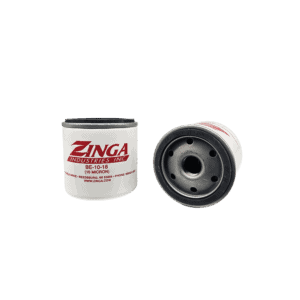

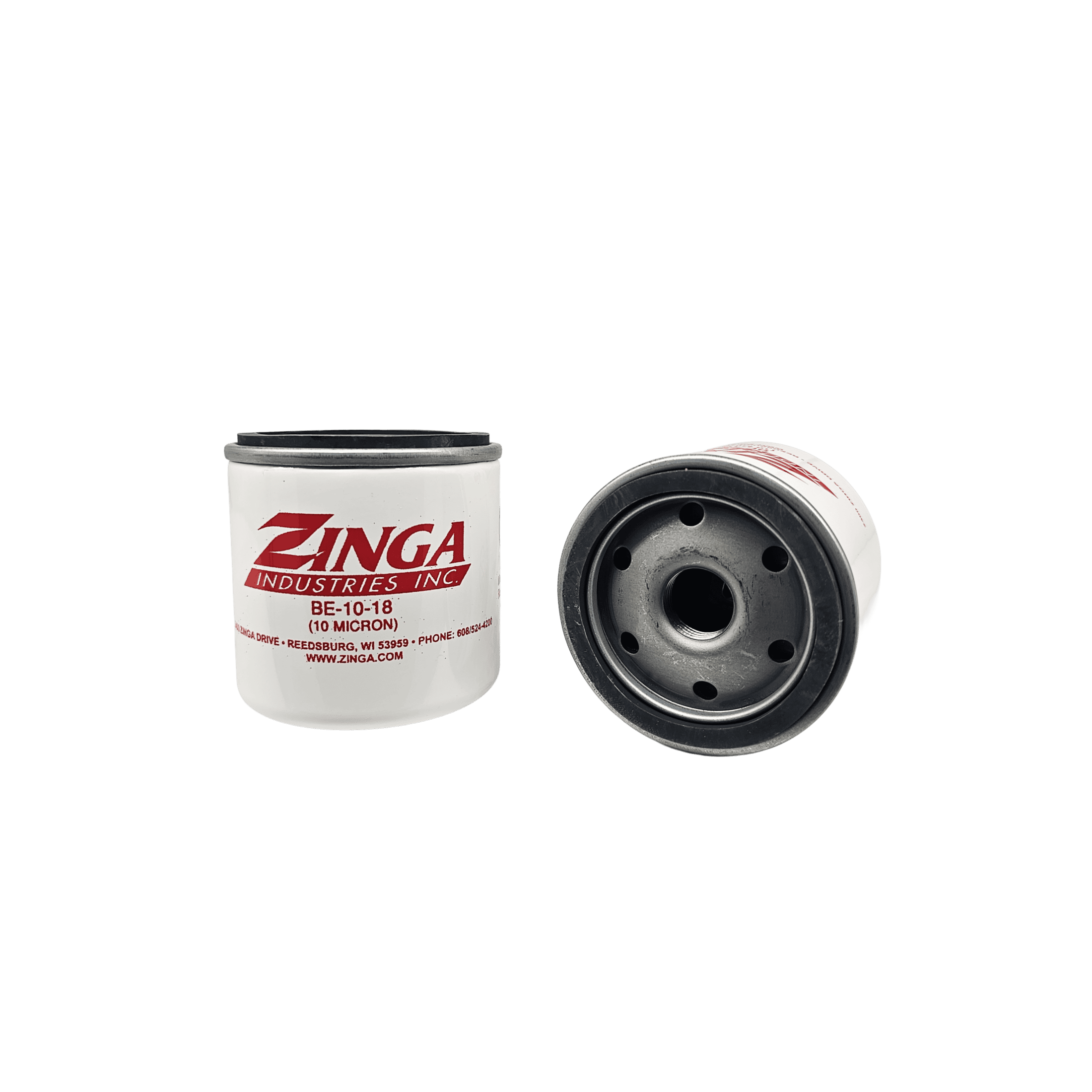

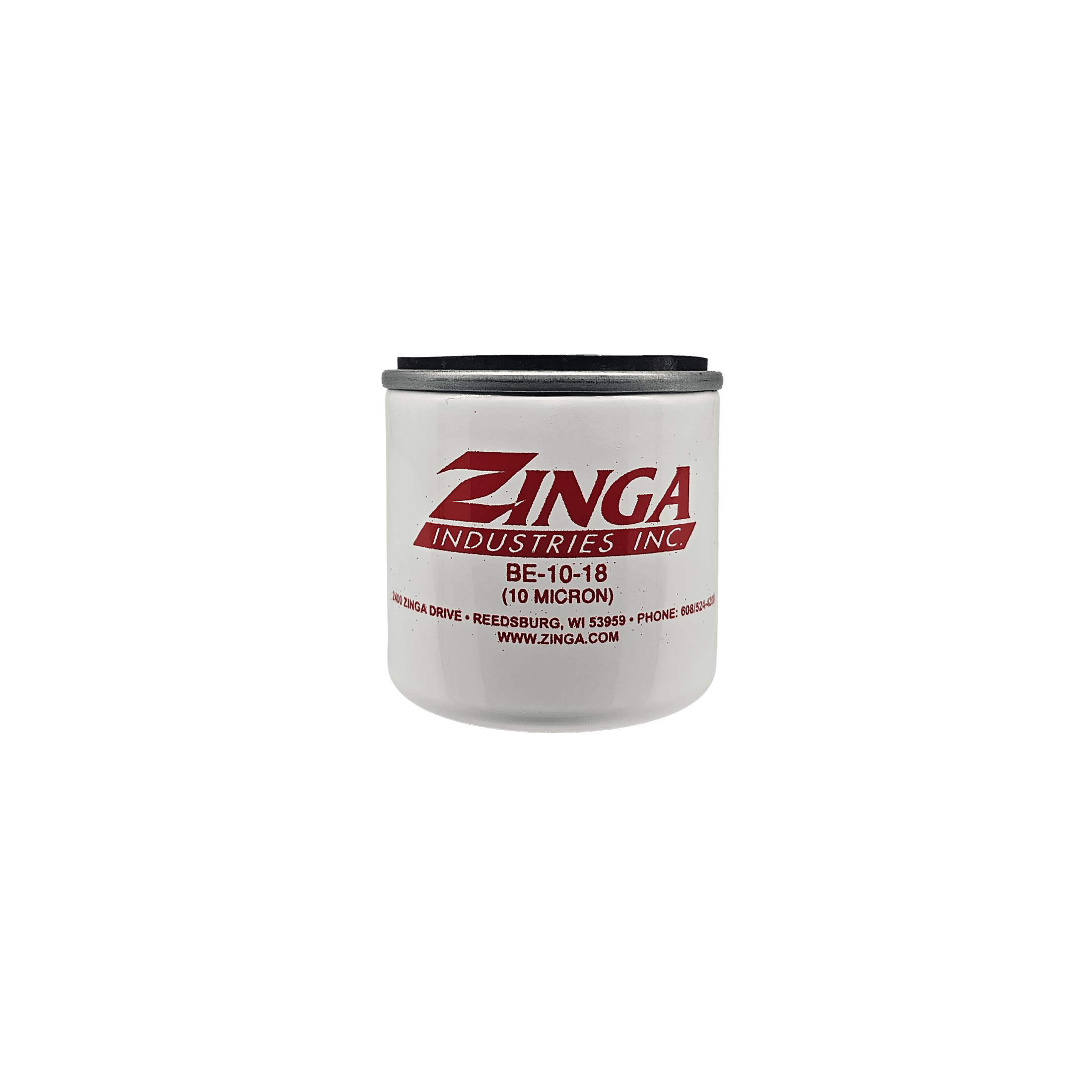

The Zinga BE1018 spin-on filter element, part number BE1018, uses 10 micron grade cellulose media with an internal 18 psid bypass. It fits Zinga BF Series filter heads on a 3/4-16 UN thread.
Rated efficiency is 8 micron at Beta 2 (50%) and 23 micron at Beta 75 (98.7%). The element is 3.1 in in diameter and 3.4 in tall, rated to 200 psi with a 50 psid maximum differential and temperatures up to 250 °F.
The internal bypass opens at 18 psid so fluid keeps moving as the element loads with contaminant. For the same media without a bypass, see the BE100; for a 25 micron grade, see the BE2510. Pair the BE1018 with the BF030 filter head.
Use it with petroleum based fluids. Do not use BE Series elements on internal combustion engines.
Related categories: Filtration & Fluid Conditioning · Zinga Filtration · Zinga Spin-On Filter Elements · Zinga BE Series
Brand: Zinga Filtration
