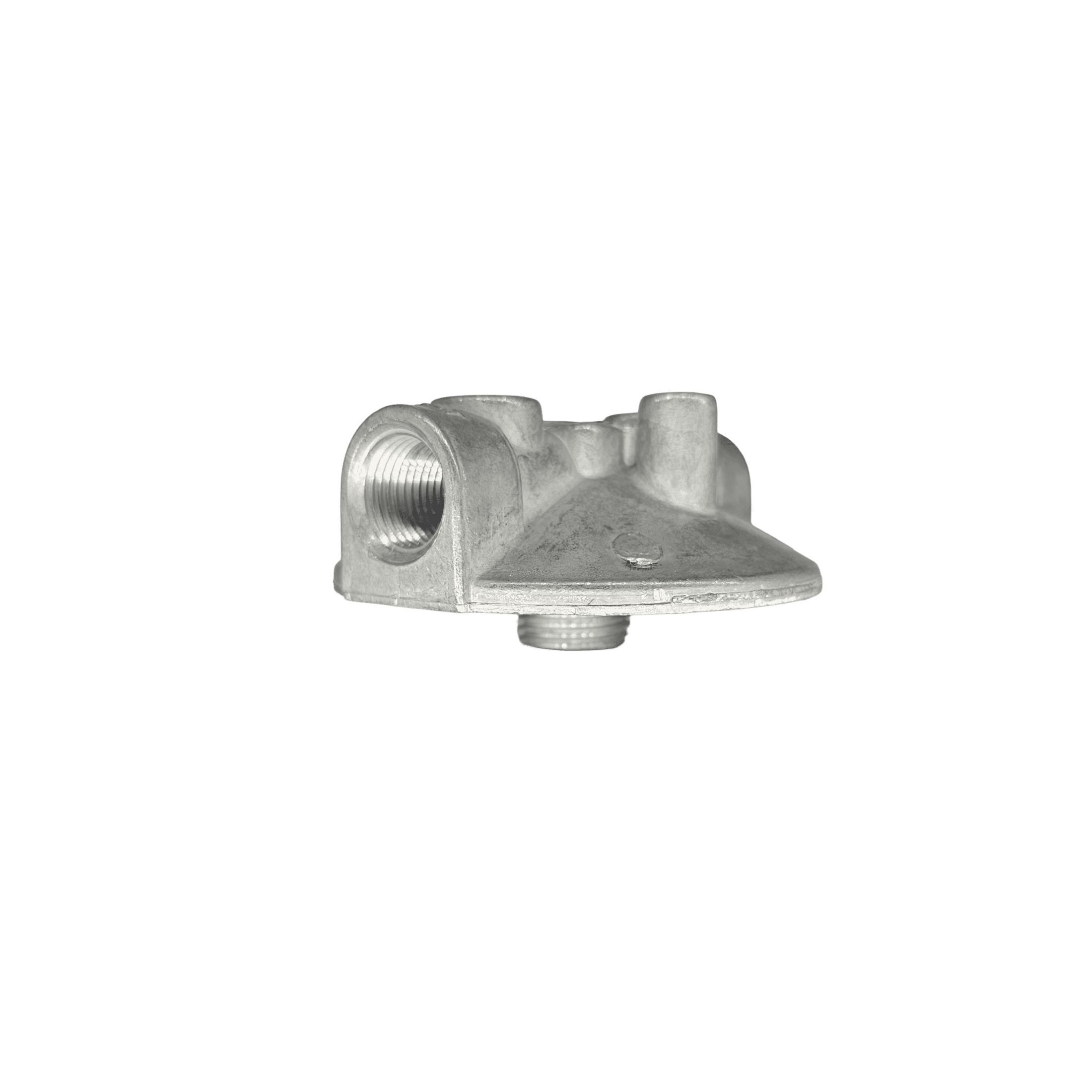

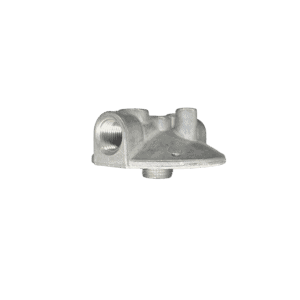

Zinga BF030 spin-on filter head with 3/8 in NPTF ports, angled view — islandhydraulicsupply.com

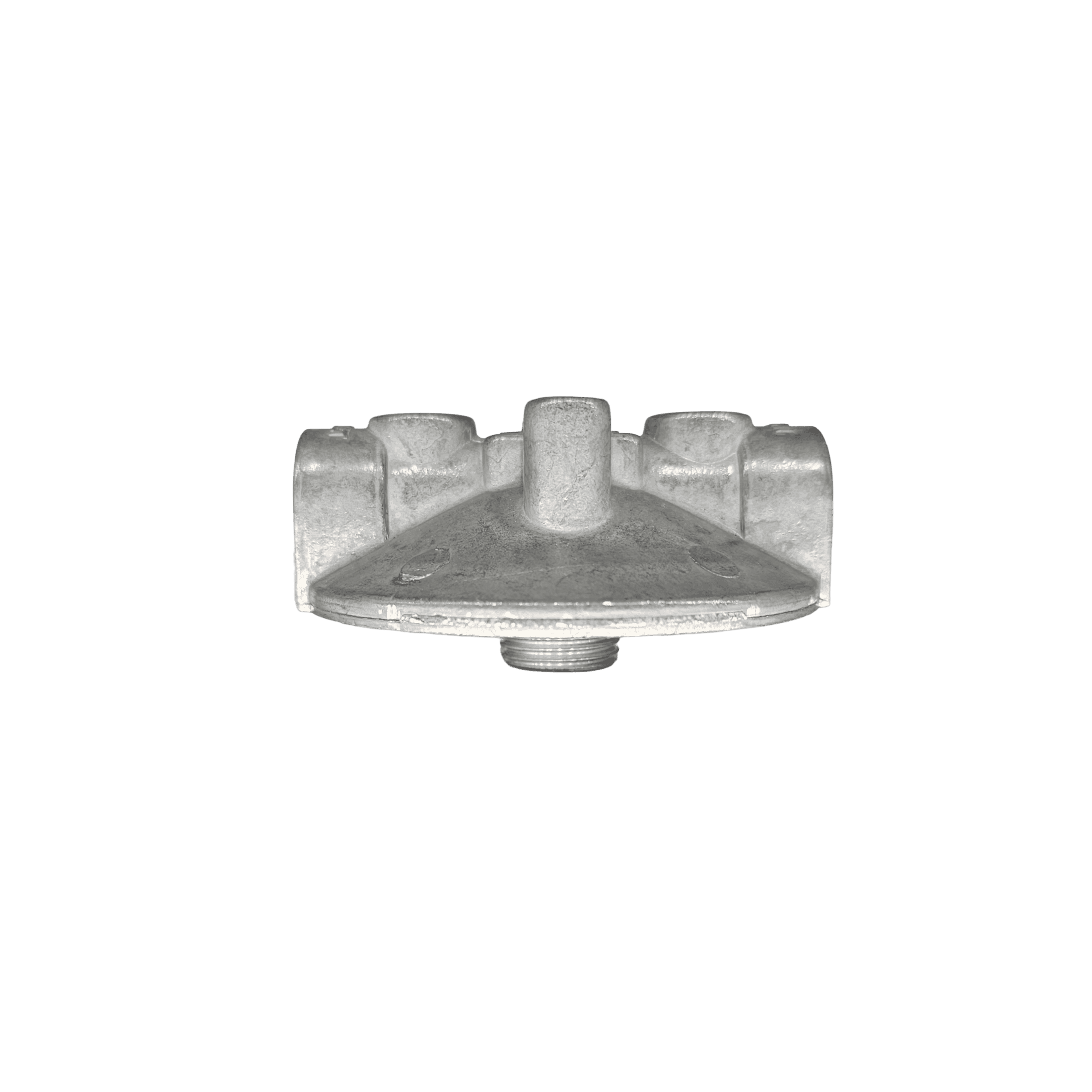

Zinga BF030 spin-on filter head, side view — islandhydraulicsupply.com

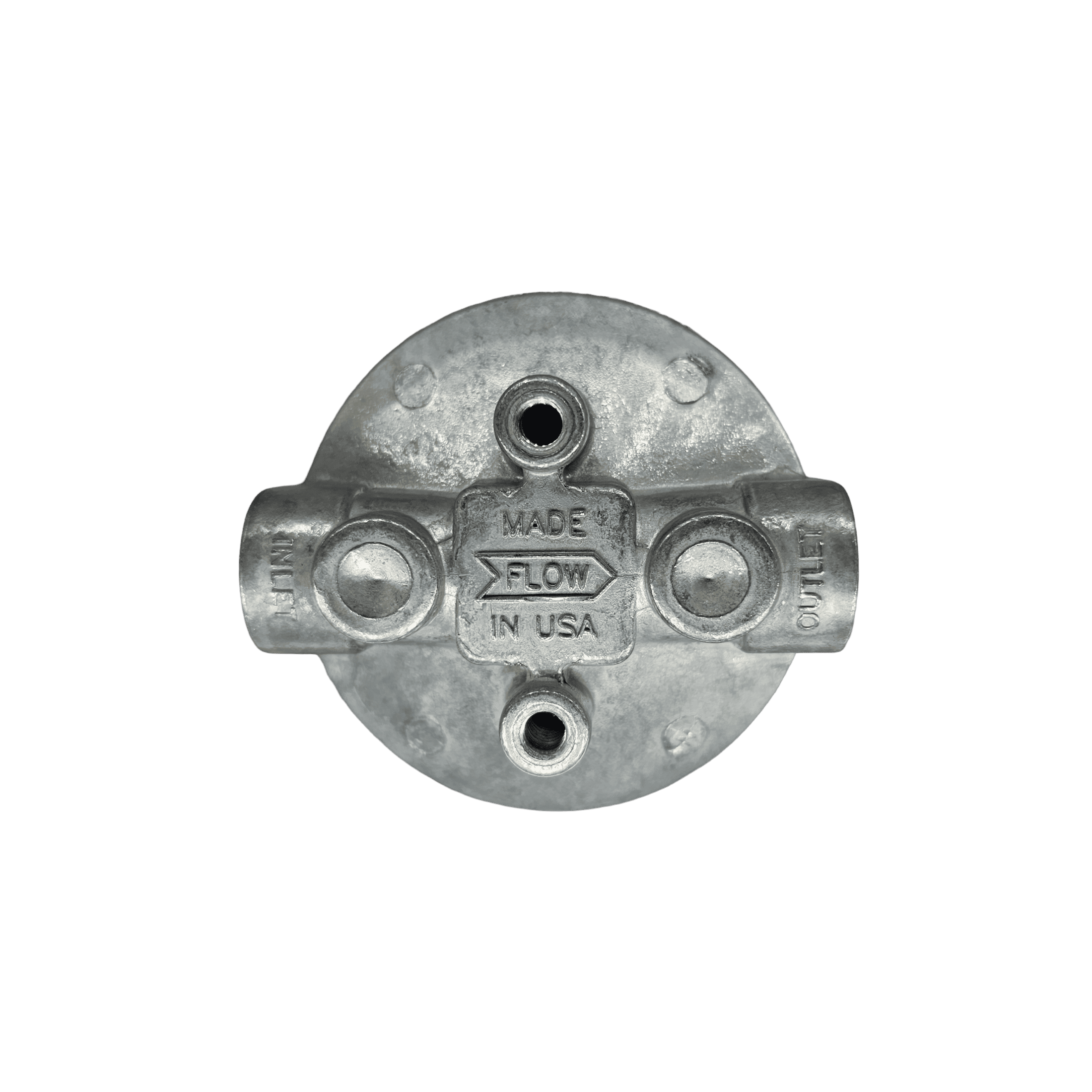

Zinga BF030 spin-on filter head, top view with inlet, outlet and flow markings — islandhydraulicsupply.com

Images used may not represent the actual product.

Zinga BF030 Spin-On Filter Head – 3/8″ NPTF

Name: BF030 Spin-On Filter Head | Island Hydraulic Supply
Brand: Zinga Filtration
SKU: IH-3900
Price: 15.90 USD
Availability: InStock

Part BF030

PID 8388

$15.90

The Zinga BF030 spin-on filter head, part number BF030, has 3/8 in NPTF ports.

IH-3900

Filter Heads, Filter Heads, Filtration & Fluid Conditioning, Zinga Filtration

Weight0.35 lbs

Dimensions3.1 × 1.6 × 1.16 in

Description

The Zinga BF030 spin-on filter head, part number BF030, has 3/8 in NPTF ports.

It accepts Zinga BE Series spin-on elements on a 3/4-16 UN thread, including the BE1018 10 micron element with an 18 psid internal bypass, the BE100 10 micron element without bypass and the BE2510 25 micron element. BE elements are 3.1 in in diameter and 3.4 in tall.

Inlet, outlet and flow direction are cast into the head to make correct installation easy.
