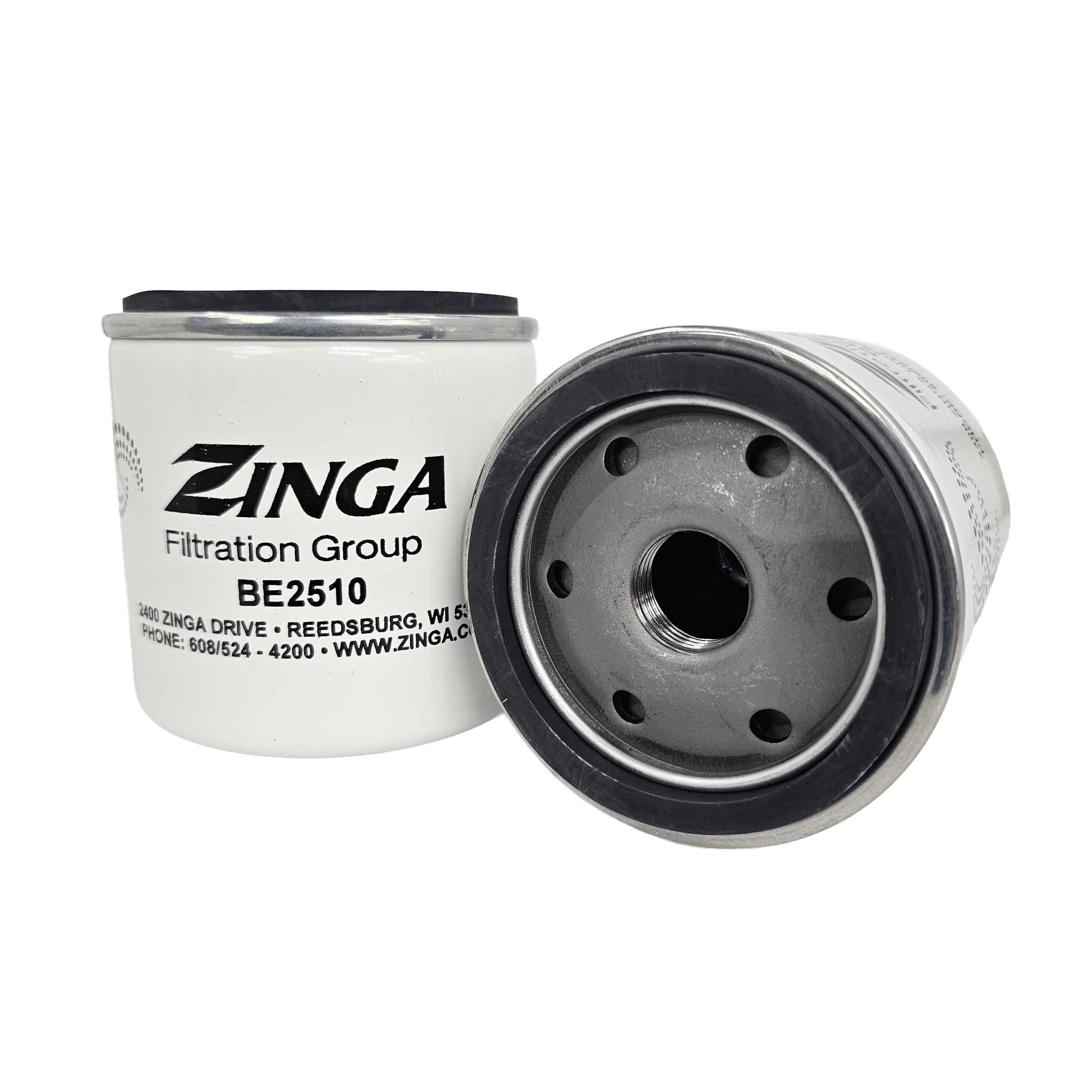

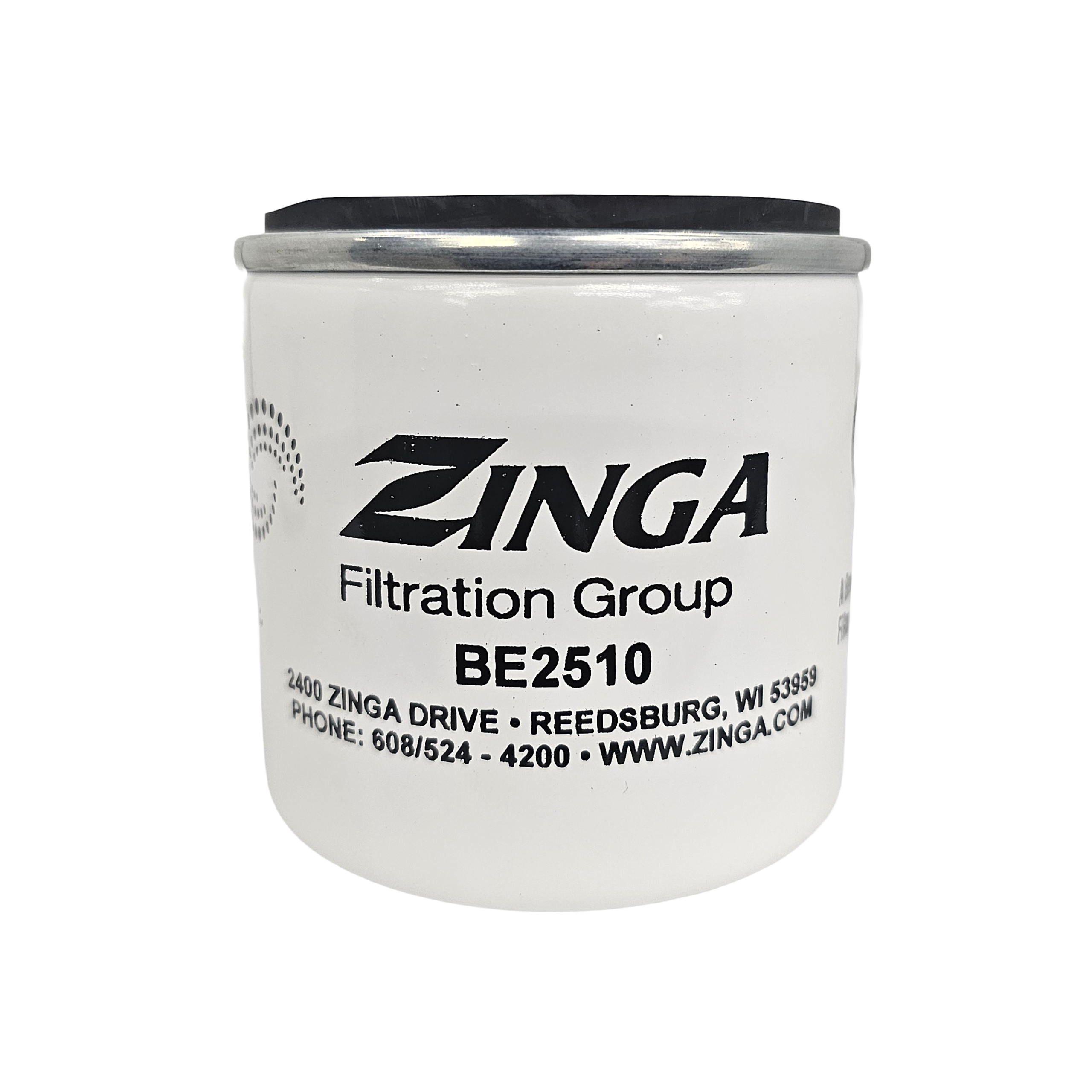

The Zinga BE2510 is a BE Series spin-on filter element with 25 micron cellulose media. A spin-on element threads onto a filter head and is replaced as a single sealed unit, which keeps service quick and limits mess.
The element measures 3.1 in in diameter and 3.4 in in overall height. It mounts on a 3/4-16 UN thread. That small size suits compact power units and circuits with little room around the filter.
Pressure ratings are 200 psi maximum operating and 50 psid maximum differential. The differential figure is the pressure drop across the media, which rises as the element collects contaminant, and it is separate from the working pressure of the circuit. Operating temperature is rated up to +250°F.
A 25 micron rating is a coarser grade. It captures larger particles while leaving more open media than fine grades, so it loads more slowly and suits circuits where general contamination control is enough.
The specifications list petroleum based fluids. Confirm the 3/4-16 UN thread against your filter head before ordering, and change the element when the pressure drop rises or at your scheduled interval.
