Images used may not represent the actual product.
$11.56

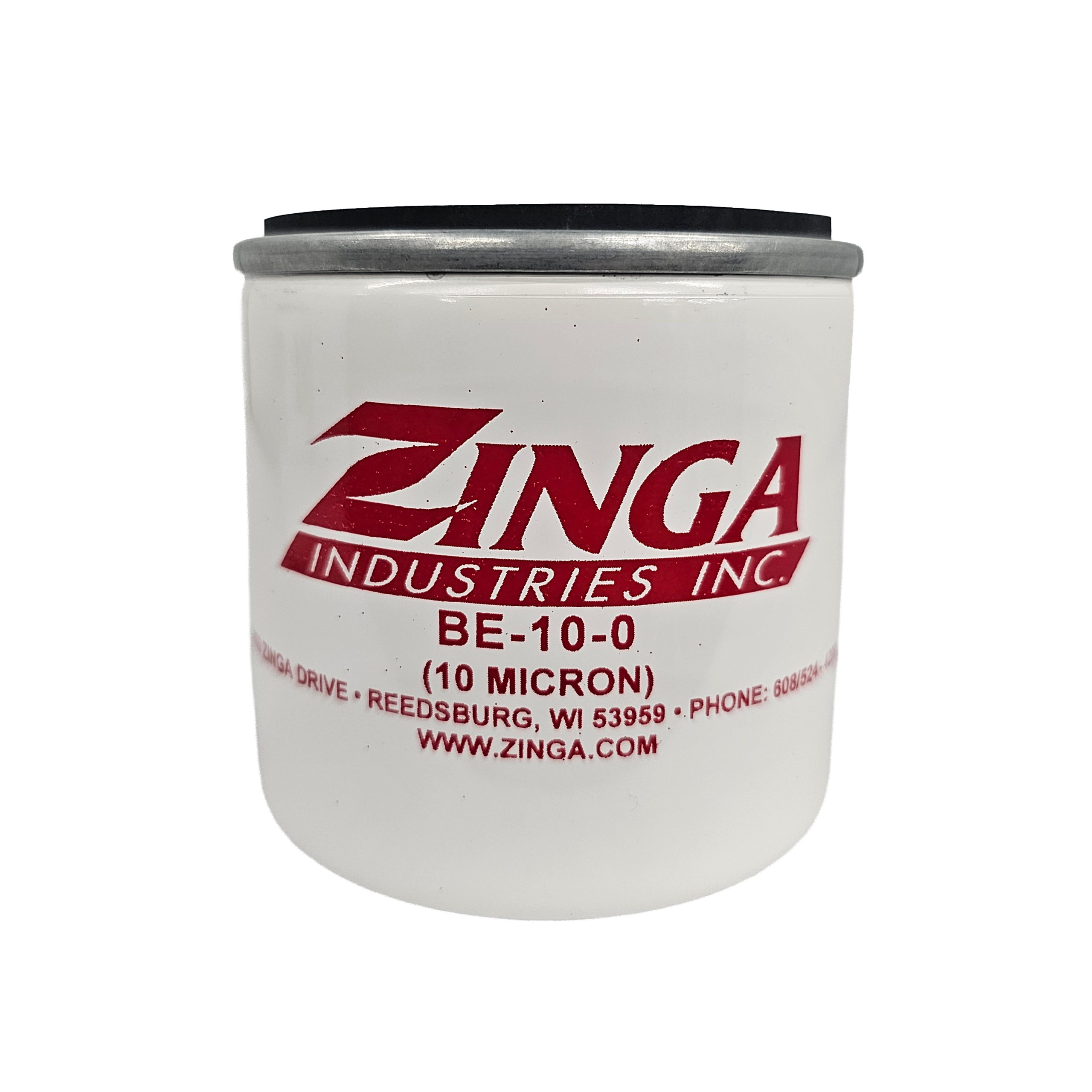

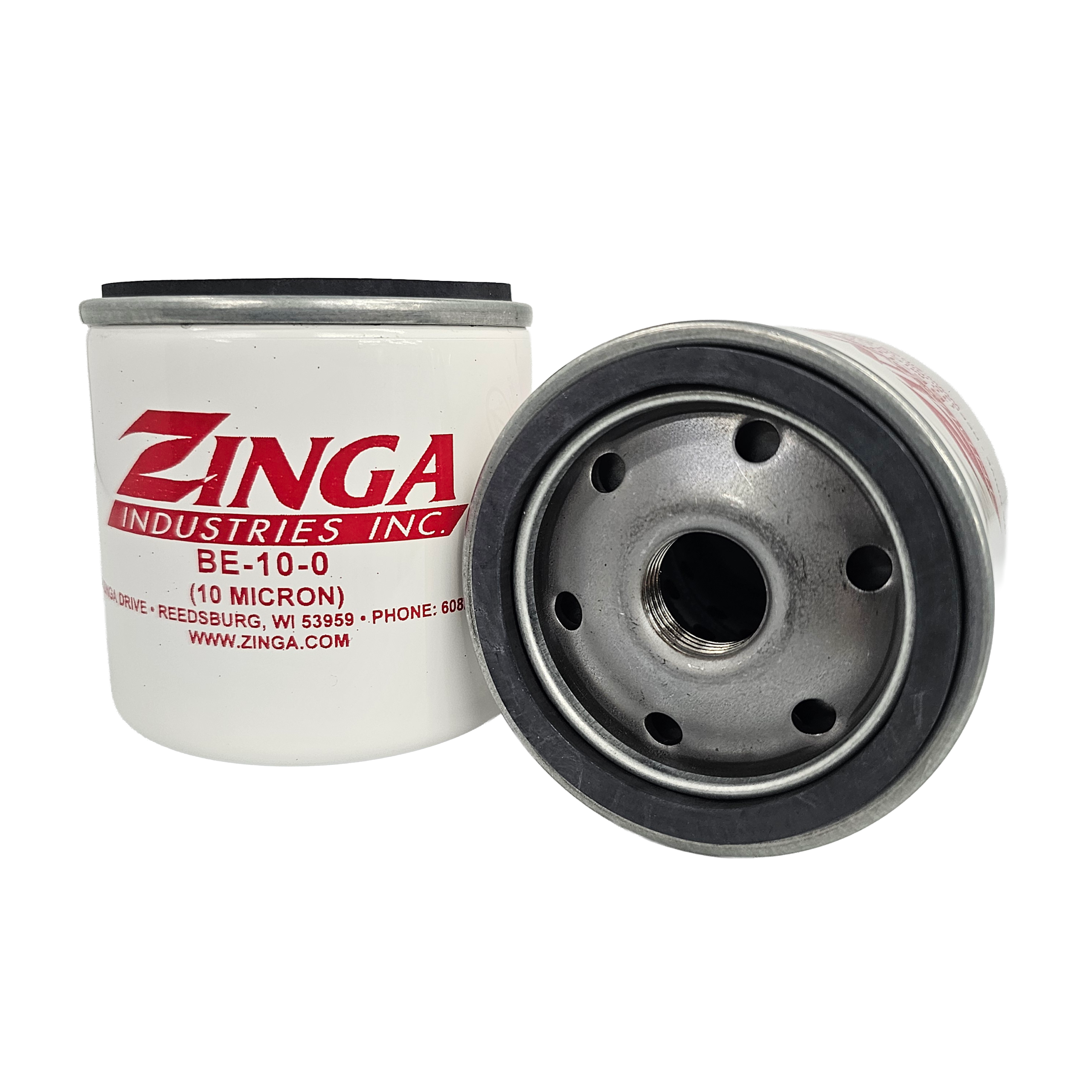

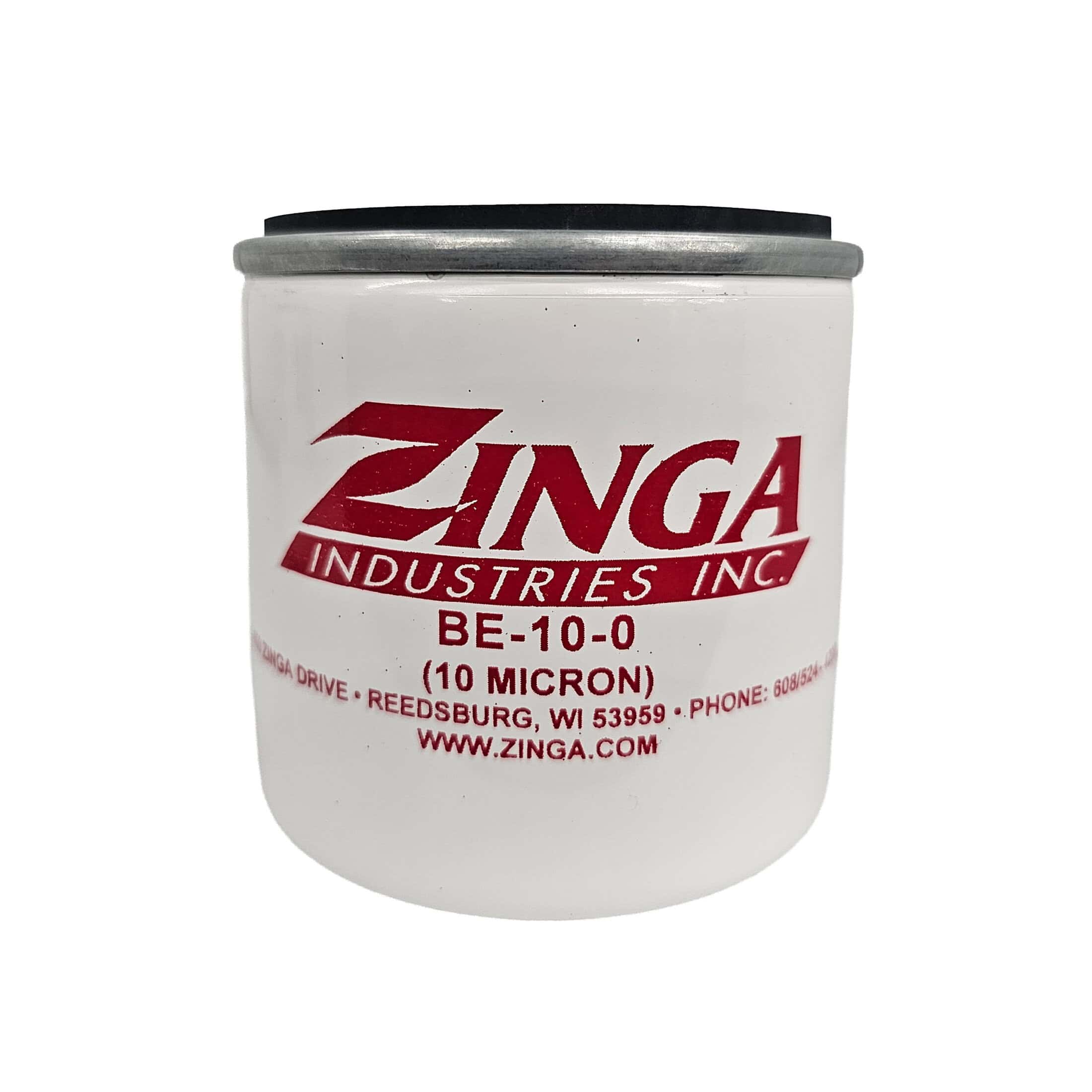

The Zinga BE-10-0 is a BE Series spin-on filter element with 10 micron cellulose media. It screws onto a filter head and comes off as one unit at service time, so there is no loose cartridge or bowl to clean. Cellulose works as a depth media, trapping particles throughout the thickness of the material rather than only on its surface.
The element is 3.1 in in diameter and 3.4 in in overall height, with a 3/4-16 UN mounting thread. Its compact size fits small power units and tight installations.
It is rated for 200 psi maximum operating pressure and 50 psid maximum differential pressure. Psid measures the pressure drop across the media, which climbs as the element loads with dirt. Operating temperature is rated up to +250°F.
A 10 micron cellulose grade gives finer particle control than coarse media while loading more slowly than very fine grades. That balance suits general hydraulic service.
The specifications list petroleum based fluids. Match the 3/4-16 UN thread to your filter head before ordering, and replace the element when the pressure drop rises or at the interval set for your equipment.
