$36.08

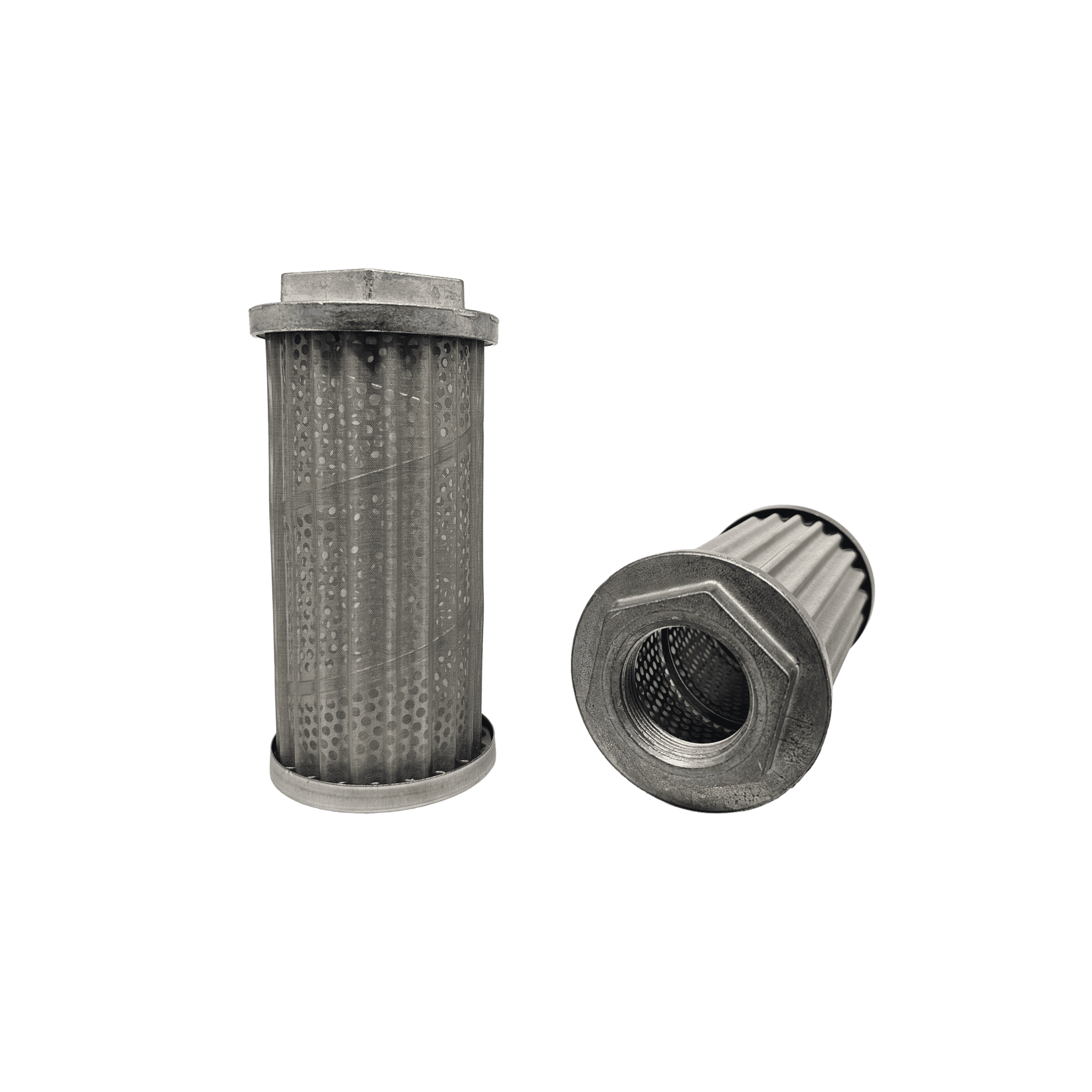

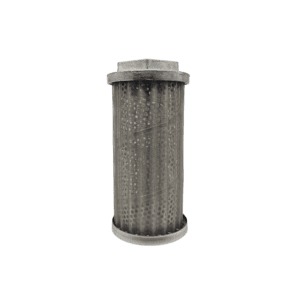

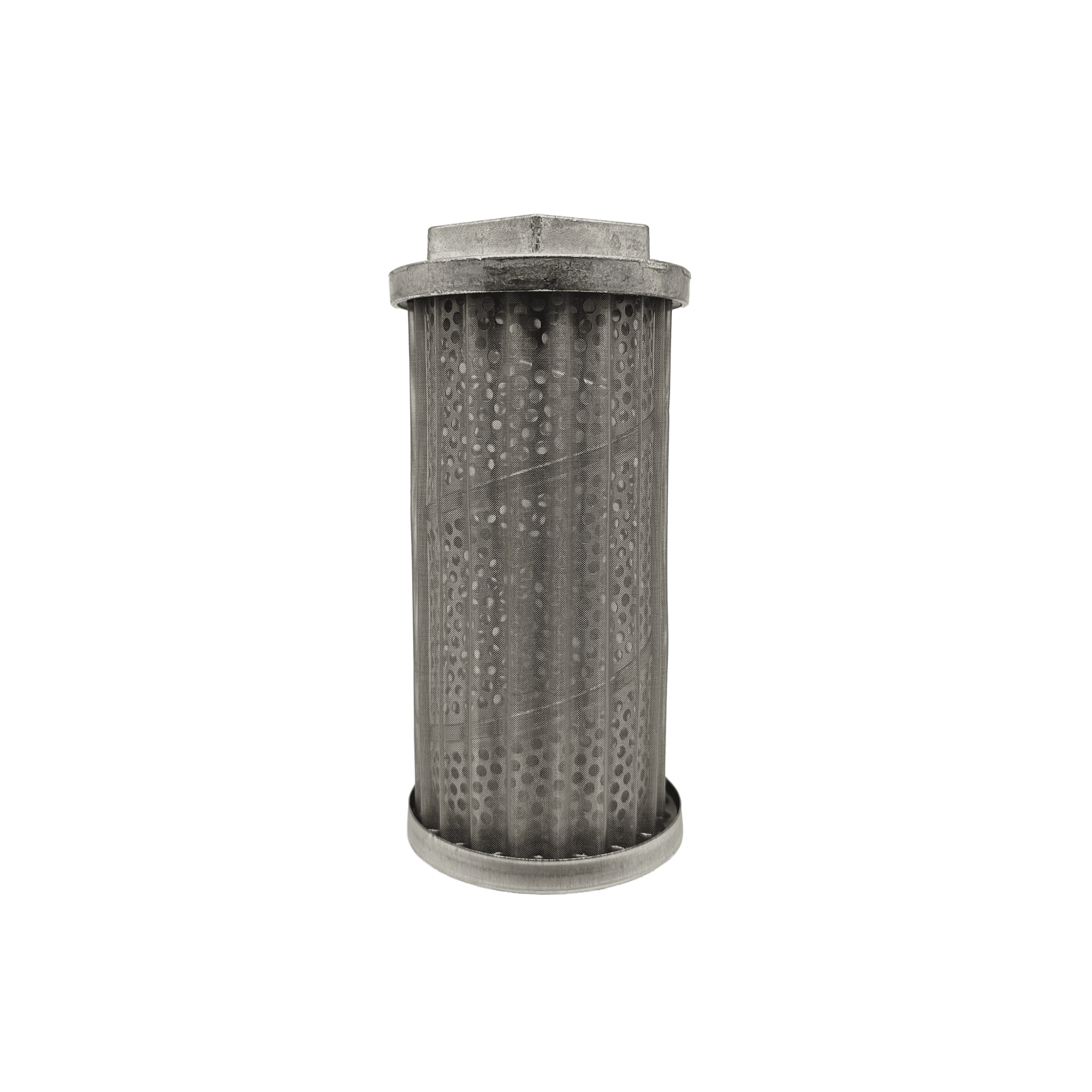

The Zinga SS12000 hydraulic suction strainer, part number SS12000, mounts inside the reservoir on the pump suction line to catch debris before it reaches the pump. It has a 1-1/4 in NPTF outlet and is rated for 23 gpm at 5 ft/sec.
A 100 mesh wire cloth element sits on a cast aluminum cover. The end caps use reverse taper wall construction, which locks mechanically with the epoxy adhesive to prevent bond failure, a benefit in rough-terrain vehicle applications. Pressure drop is under 1/2 psi at rated flow with 150 SUS oil.
The SS Series covers outlet ports from 1 to 3 in NPTF. This model has no bypass valve; 3 psi and 5 psi bypass valves are series options.
The wrench flat is 2.25 in, overall length is 6.6 in and outside diameter is 3.2 in. Operating temperature is up to 250 °F. A magnetic version, the SS12000M1A, is also available.
Related categories: Filtration & Fluid Conditioning · Zinga Filtration · Zinga Strainers · Zinga SS Series
Brand: Zinga Filtration
