Images used may not represent the actual product.
$39.64

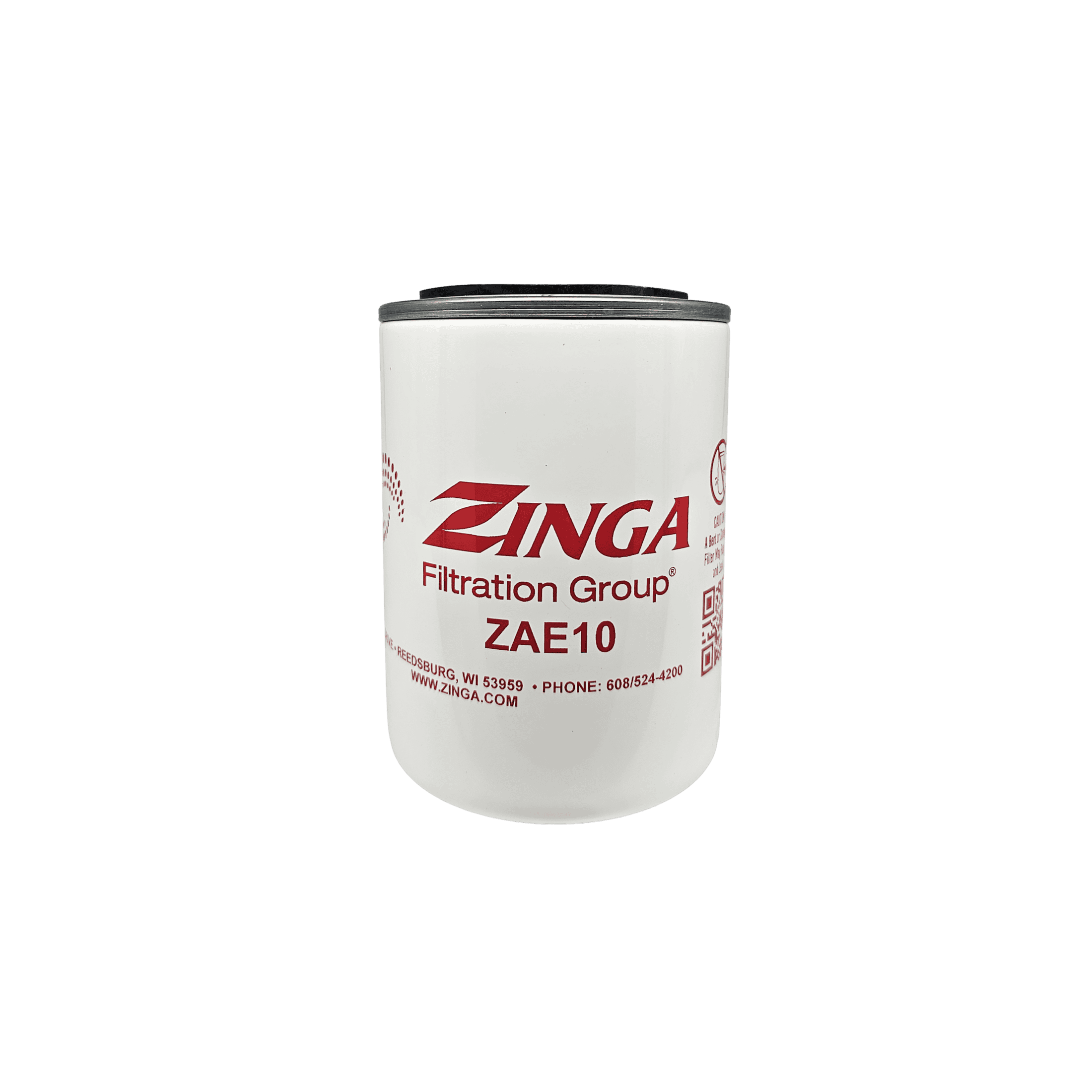

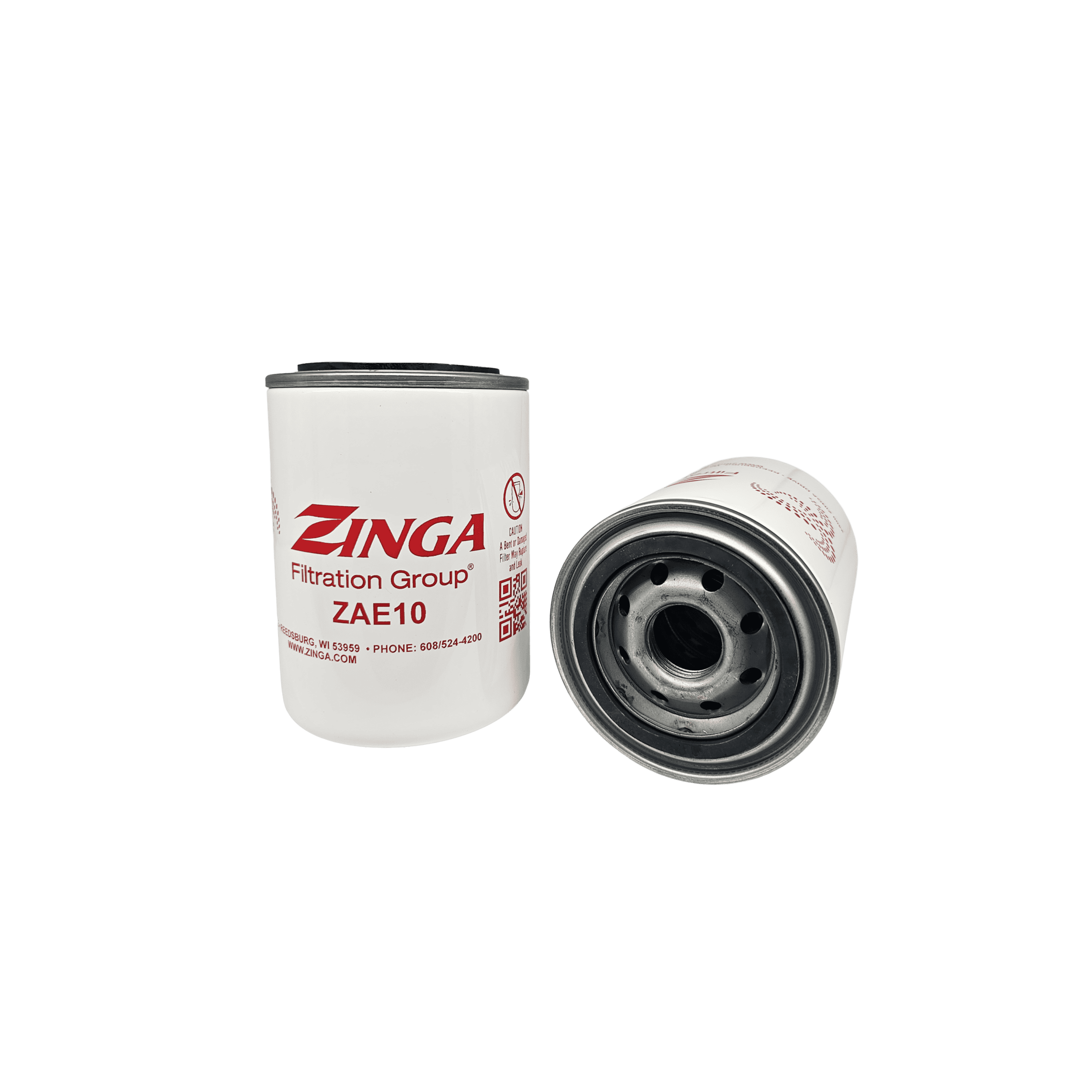

The Zinga ZAE10 spin-on filter element, part number ZAE10, uses Z-Glass media rated 10 micron absolute at Beta 200 (99.5% efficiency). It fits Zinga ZAF Series filter heads on a 1-12 UN thread.
The element is 3.8 in in diameter and 5.8 in tall, rated to 250 psi operating pressure with an 80 psid maximum differential and temperatures up to 250 °F. A Buna-N gasket seals it to the head. At 12 micron it reaches Beta 1000, 99.9% efficiency.
The ZAE Series also includes a 3 micron element and a taller 8.5 in version of the 10 micron element, both on the same 1-12 UN thread. Pair the ZAE10 with the ZAF10251235 filter head.
Use it with petroleum based fluids. Do not use ZAE Series elements on internal combustion engines.
Related categories: Filtration & Fluid Conditioning · Zinga Filtration · Zinga Spin-On Filter Elements
Brand: Zinga Filtration
