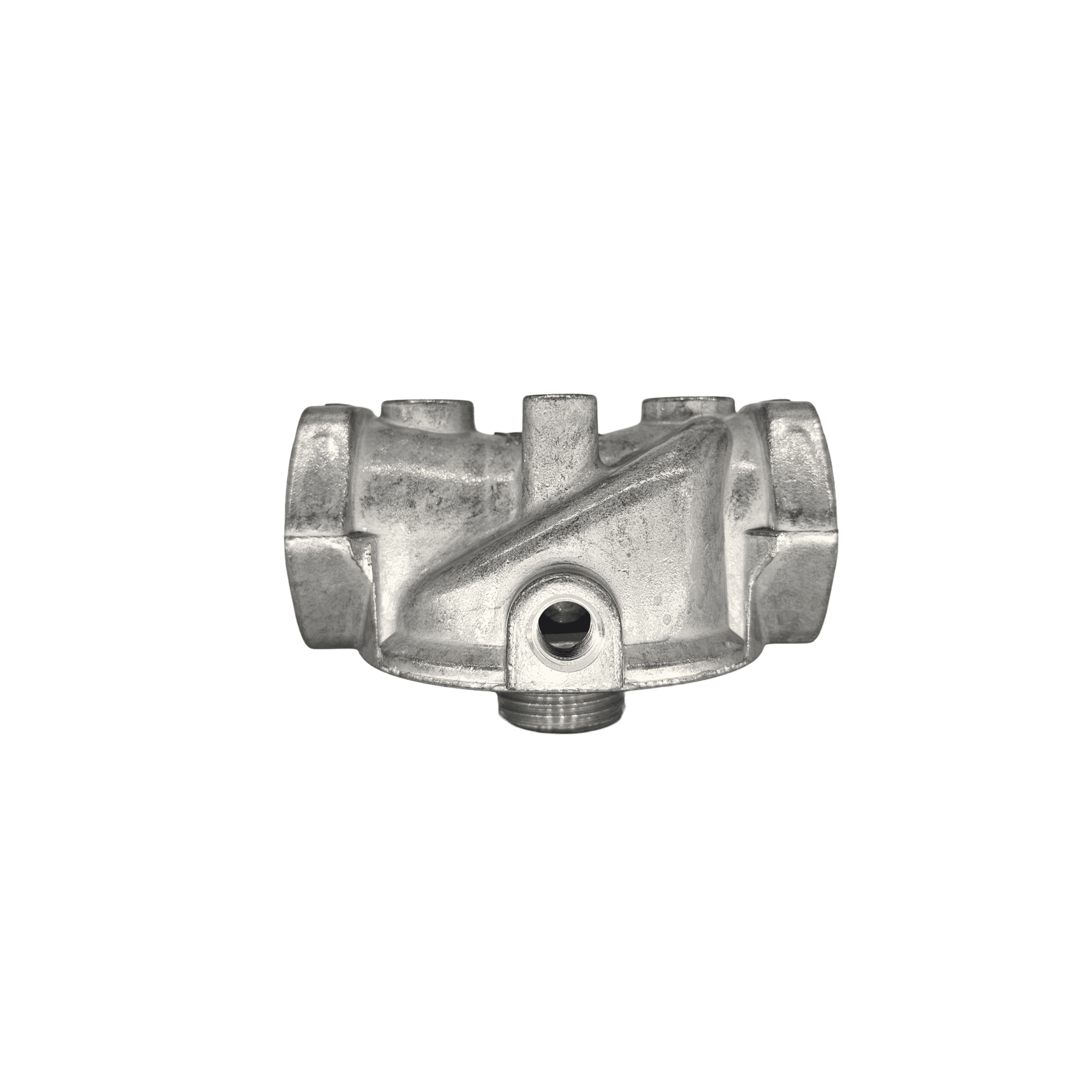

Zinga ZAF10251235 spin-on filter head with 1 in NPTF ports, side view — islandhydraulicsupply.com

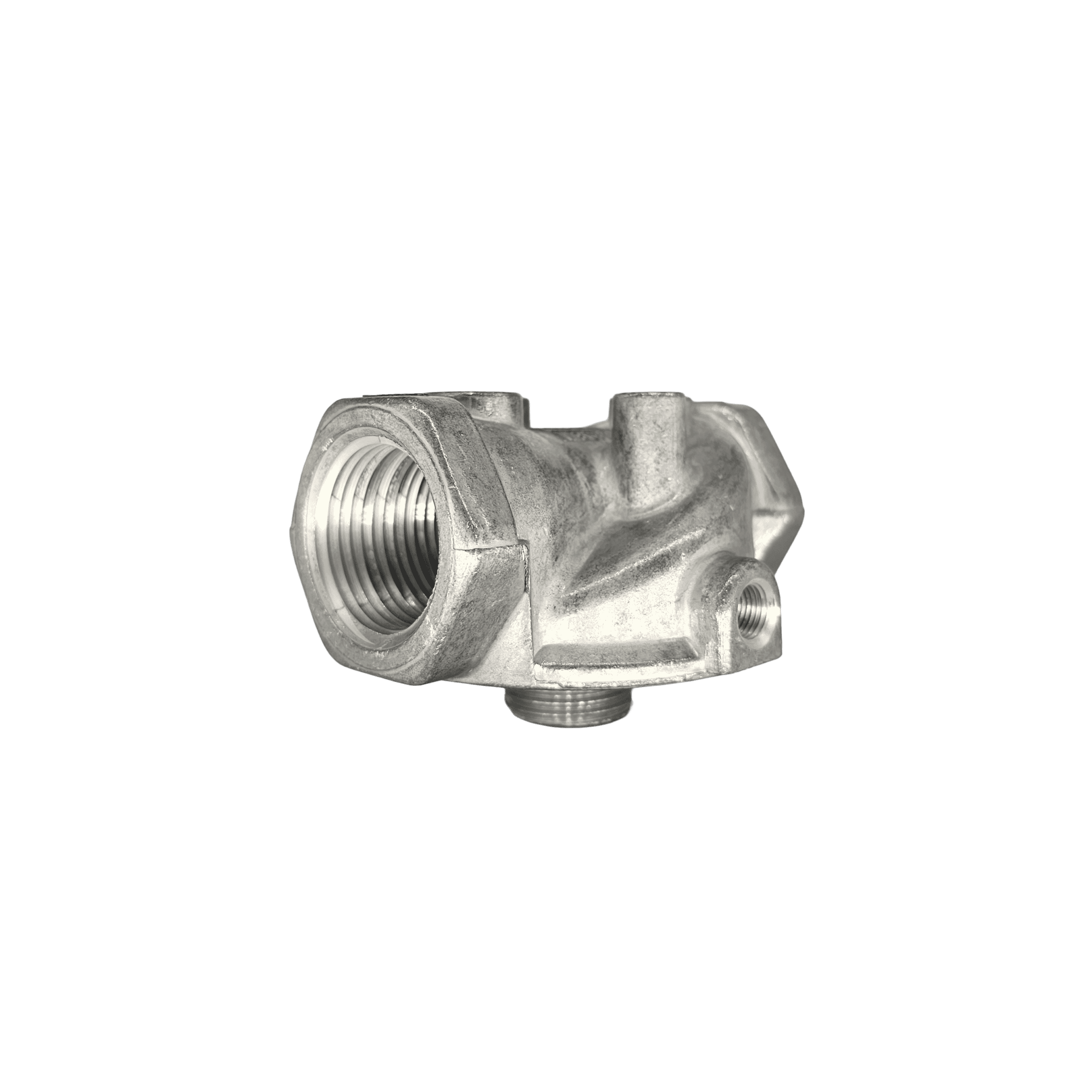

Zinga ZAF10251235 spin-on filter head, angled view of the inlet port and gauge port — islandhydraulicsupply.com

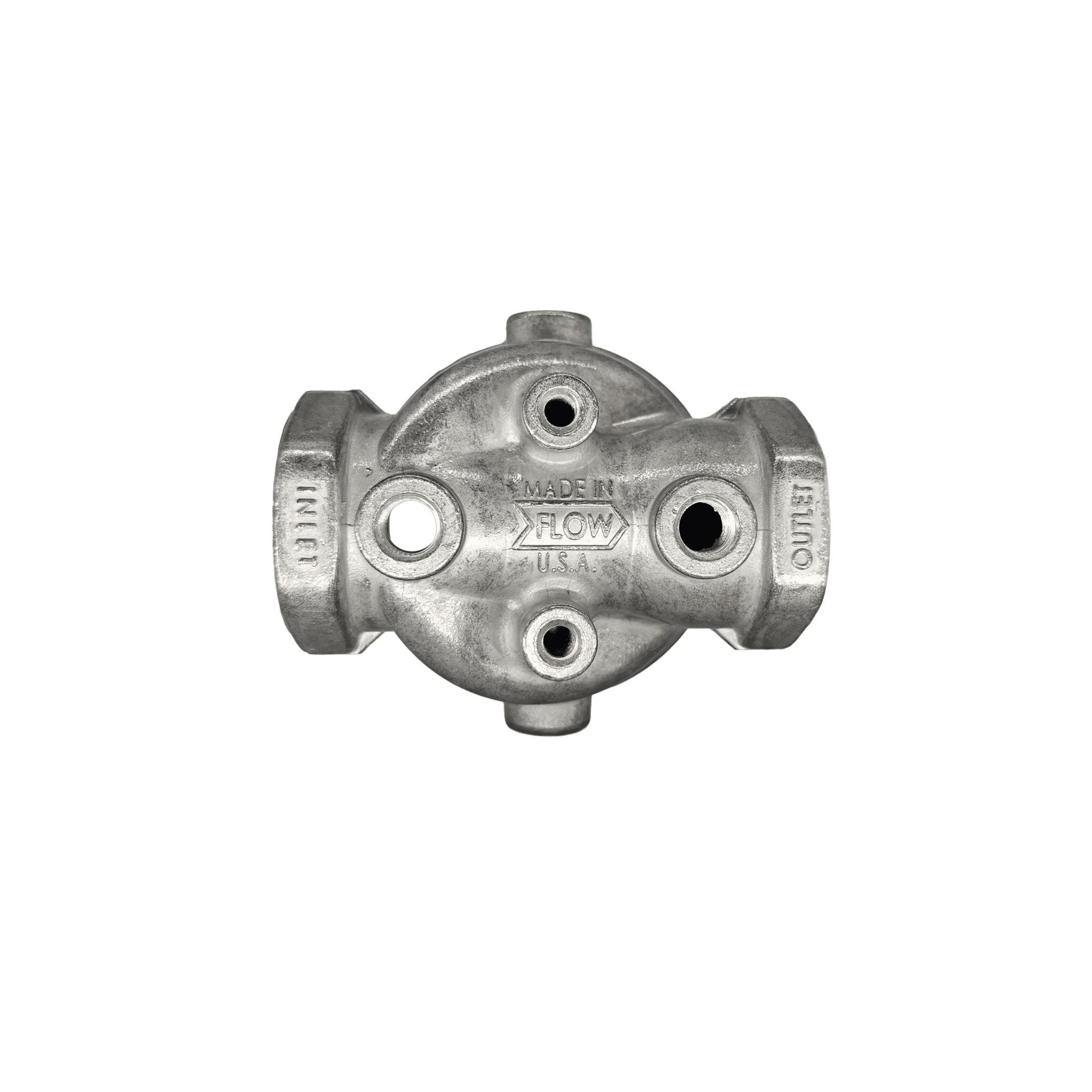

Zinga ZAF10251235 spin-on filter head, top view with inlet, outlet and flow markings — islandhydraulicsupply.com

Images used may not represent the actual product.

Zinga ZAF10251235 Spin-On Filter Head – 1″ NPTF – 25 PSI ByPass – All Gauge Port Locations

Name: ZAF10251235 Spin-On Filter Head | Island Hydraulic Supply
Brand: Zinga Filtration
SKU: IH-3899
Price: 36.44 USD
Availability: InStock

Part ZAF10251235

PID 8387

$36.44

The Zinga ZAF10251235 spin-on filter head, part number ZAF10251235, has 1 in NPTF ports, a 25 psi bypass and gauge ports at all locations.

IH-3899

Filter Heads, Filter Heads, Filtration & Fluid Conditioning, Zinga Filtration

Weight0.9 lbs

Dimensions3.65 × 1.83 × 1.74 in

Description

The Zinga ZAF10251235 spin-on filter head, part number ZAF10251235, has 1 in NPTF ports, a 25 psi bypass and gauge ports at all locations.

It accepts Zinga ZAE Series spin-on elements on a 1-12 UN thread, including the ZAE10, a Z-Glass element rated 10 micron absolute at Beta 200. ZAE elements are 3.8 in in diameter.

Inlet, outlet and flow direction are cast into the head to make correct installation easy.
