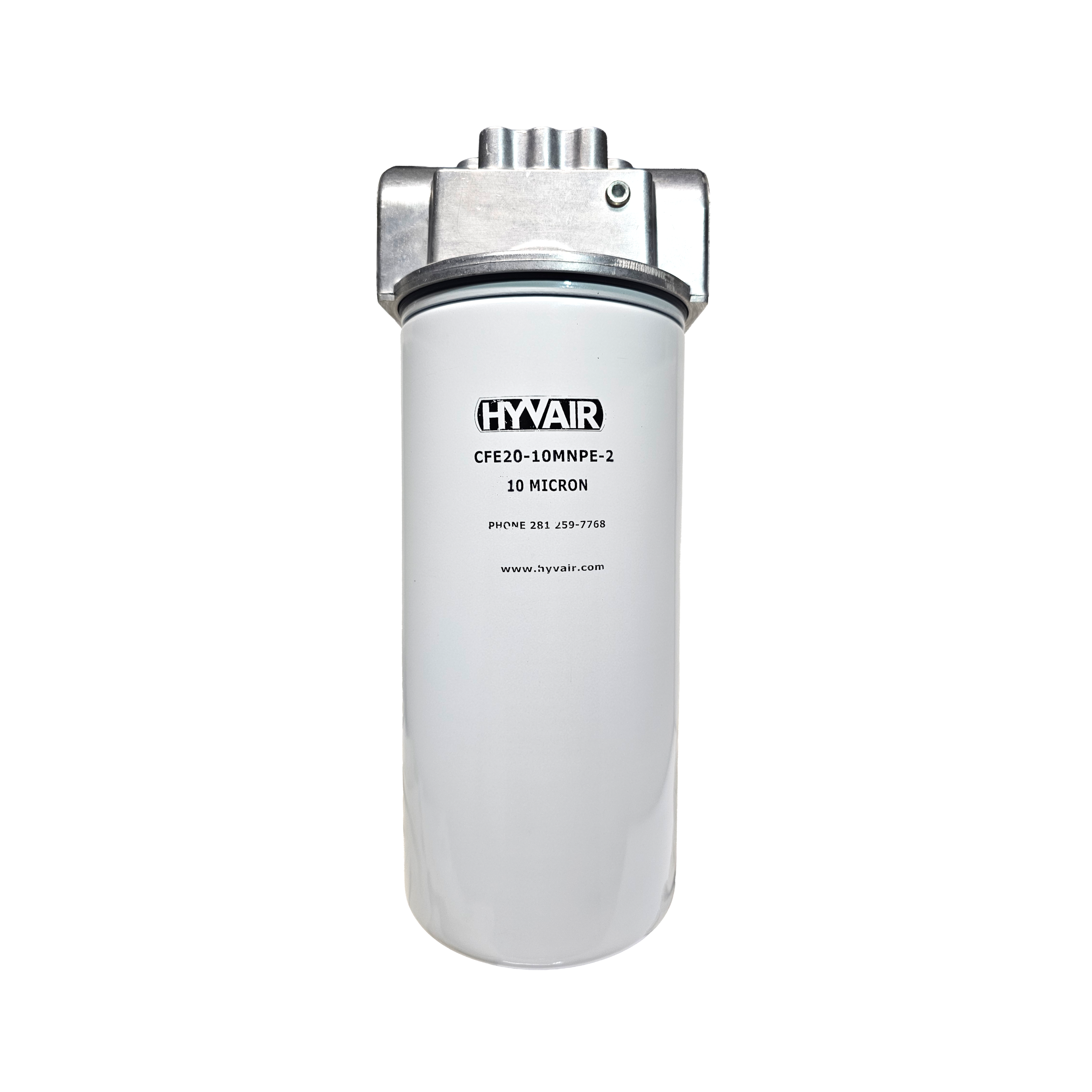

Hyvair Spin-On Filter Element with Head Assembly 1.25″ 10.71L

The Hyvair 1.25″ Spin-On Filter Element with Head Assembly is a complete, high-capacity hydraulic filtration solution engineered to deliver superior contamination control and reliable performance in demanding hydraulic systems. Combining a premium Hyvair spin-on filter element with its matching filter head, this assembly provides a convenient, ready-to-install filtration package that simplifies system integration while helping maintain optimal hydraulic fluid cleanliness.

Designed specifically for higher-flow hydraulic applications, the assembly features 1.25-inch ports that accommodate increased fluid volumes without creating excessive flow restriction. The included 10-micron filter element effectively removes fine particulate contaminants that can contribute to premature wear of pumps, valves, cylinders, and other critical hydraulic components. By maintaining cleaner hydraulic fluid, the assembly helps improve system efficiency, reduce maintenance requirements, and extend overall equipment service life.

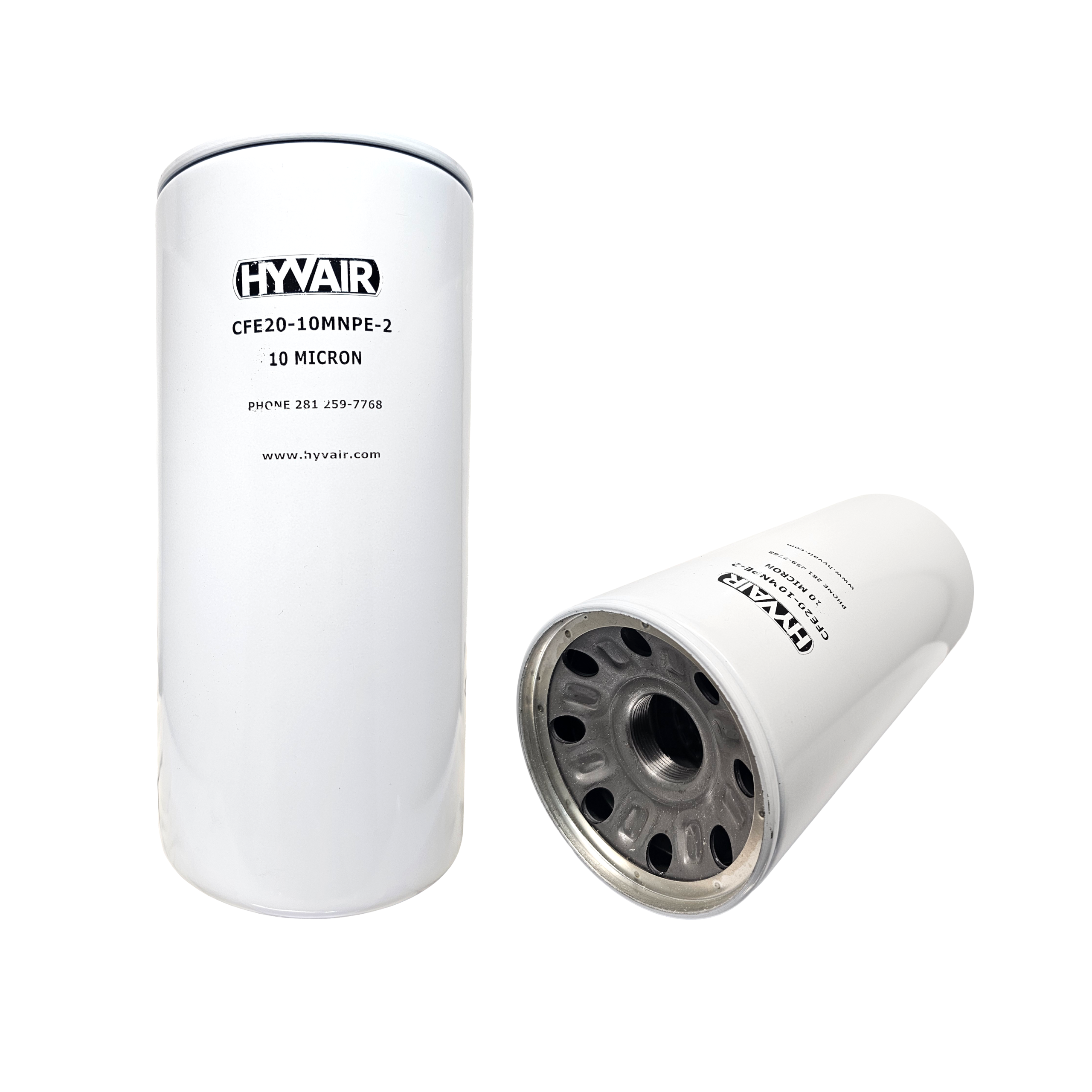

The 10.71L designation indicates a filter element length of 10.71 inches, providing increased filtration media surface area and enhanced dirt-holding capacity compared to shorter elements. This larger capacity allows for longer service intervals, improved contaminant retention, and reduced filter replacement frequency, making it an excellent choice for hydraulic systems operating in demanding environments or extended-duty cycles.

Ideal for return-line filtration applications, the assembly captures contaminants before hydraulic fluid returns to the reservoir, helping prevent recirculation of harmful particles throughout the system. This proactive approach to contamination control supports improved fluid cleanliness levels and contributes to greater system reliability over time.

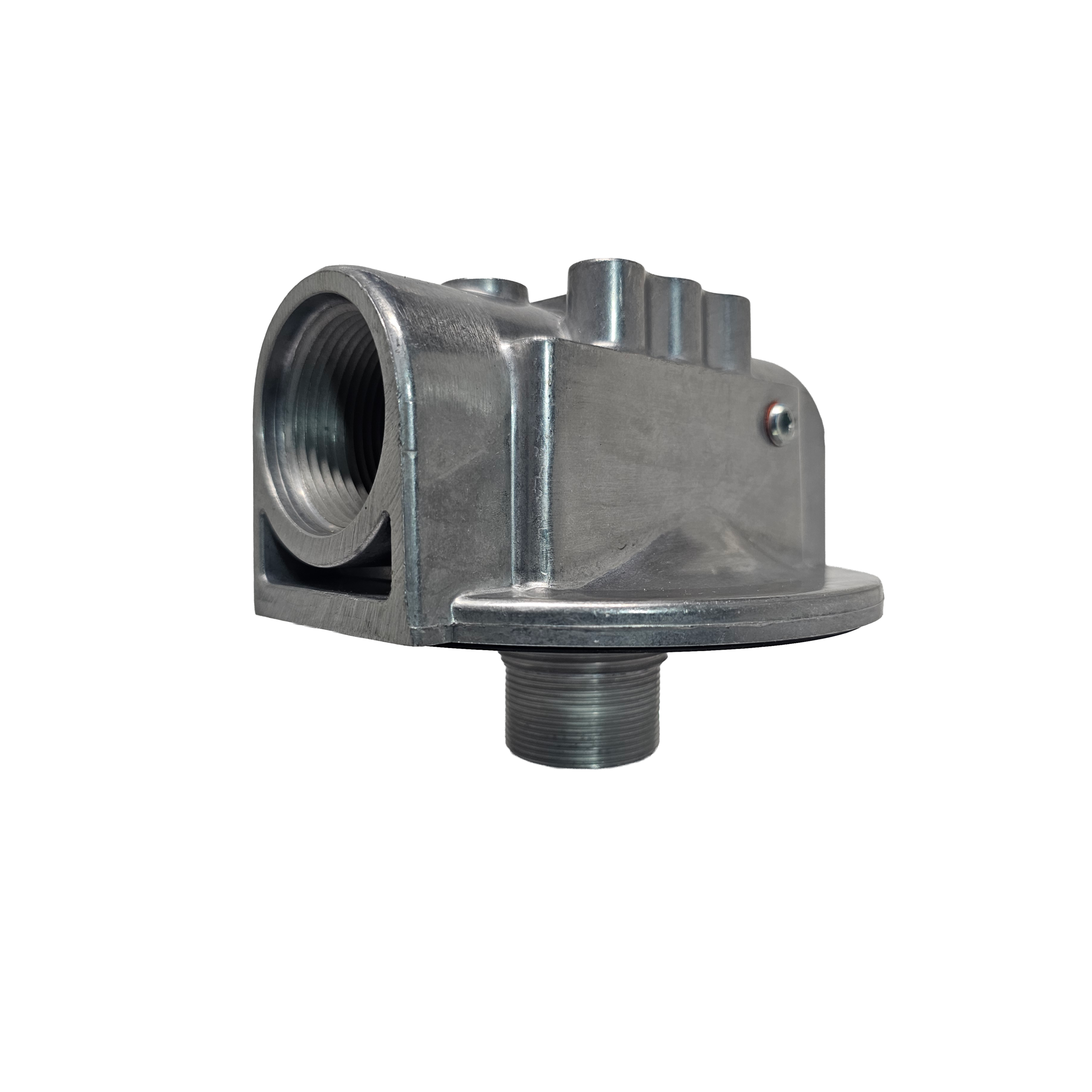

The filter head is engineered for durability and dependable operation, featuring a minimum burst pressure rating of 175 PSI and an integrated 25 PSI bypass valve. The bypass valve helps maintain uninterrupted hydraulic flow during cold starts, high-viscosity fluid conditions, or elevated differential pressure situations, ensuring continued system operation while protecting the filter assembly. The spin-on filter element is rated for a 60 PSI differential collapse pressure, providing the structural integrity necessary to withstand demanding hydraulic service conditions.

Designed for industrial machinery, hydraulic power units, mobile equipment, agricultural systems, material handling equipment, and OEM hydraulic applications, the Hyvair 1.25″ Spin-On Filter Element with Head Assembly offers an effective balance of high-flow capability, efficient filtration, and long-term durability.
