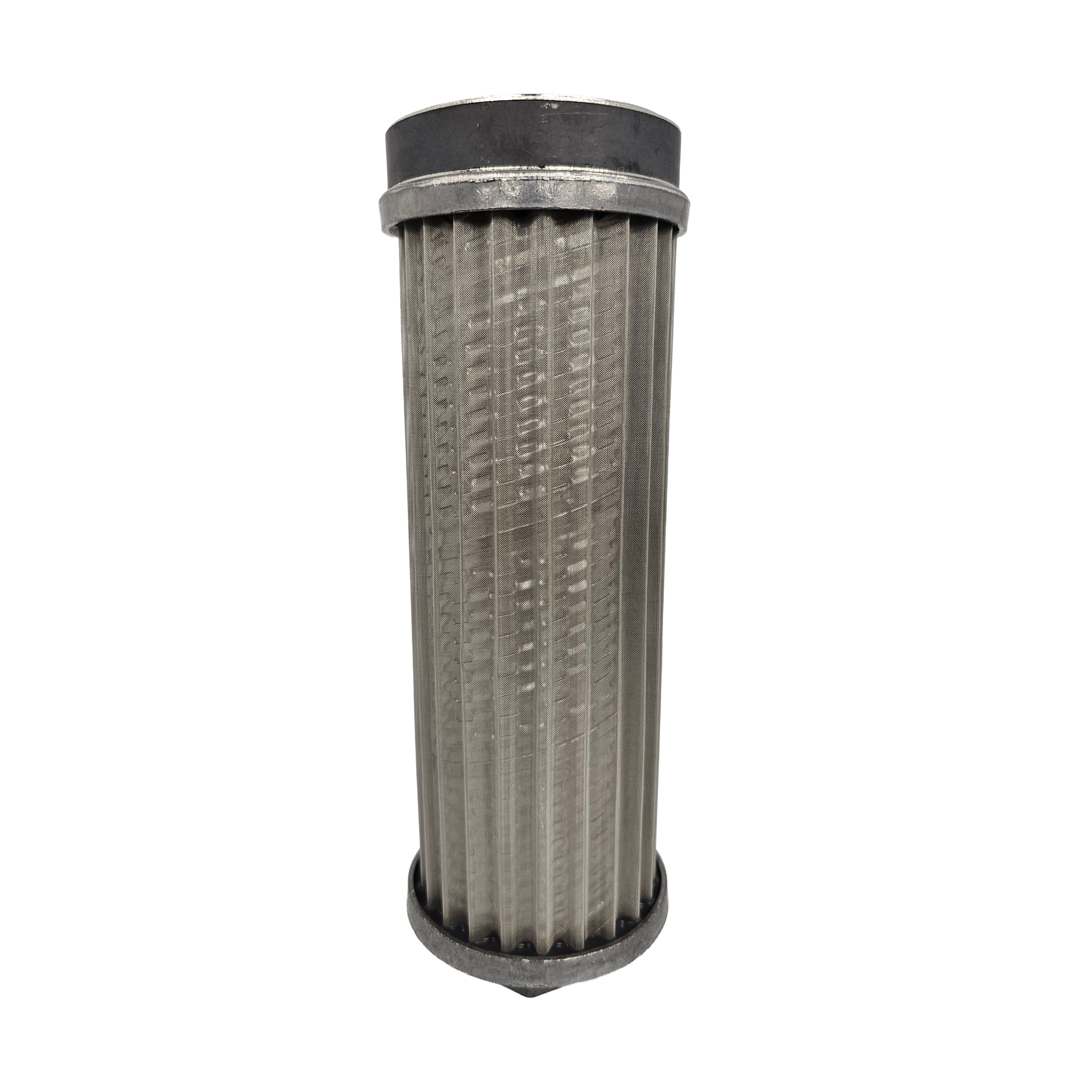

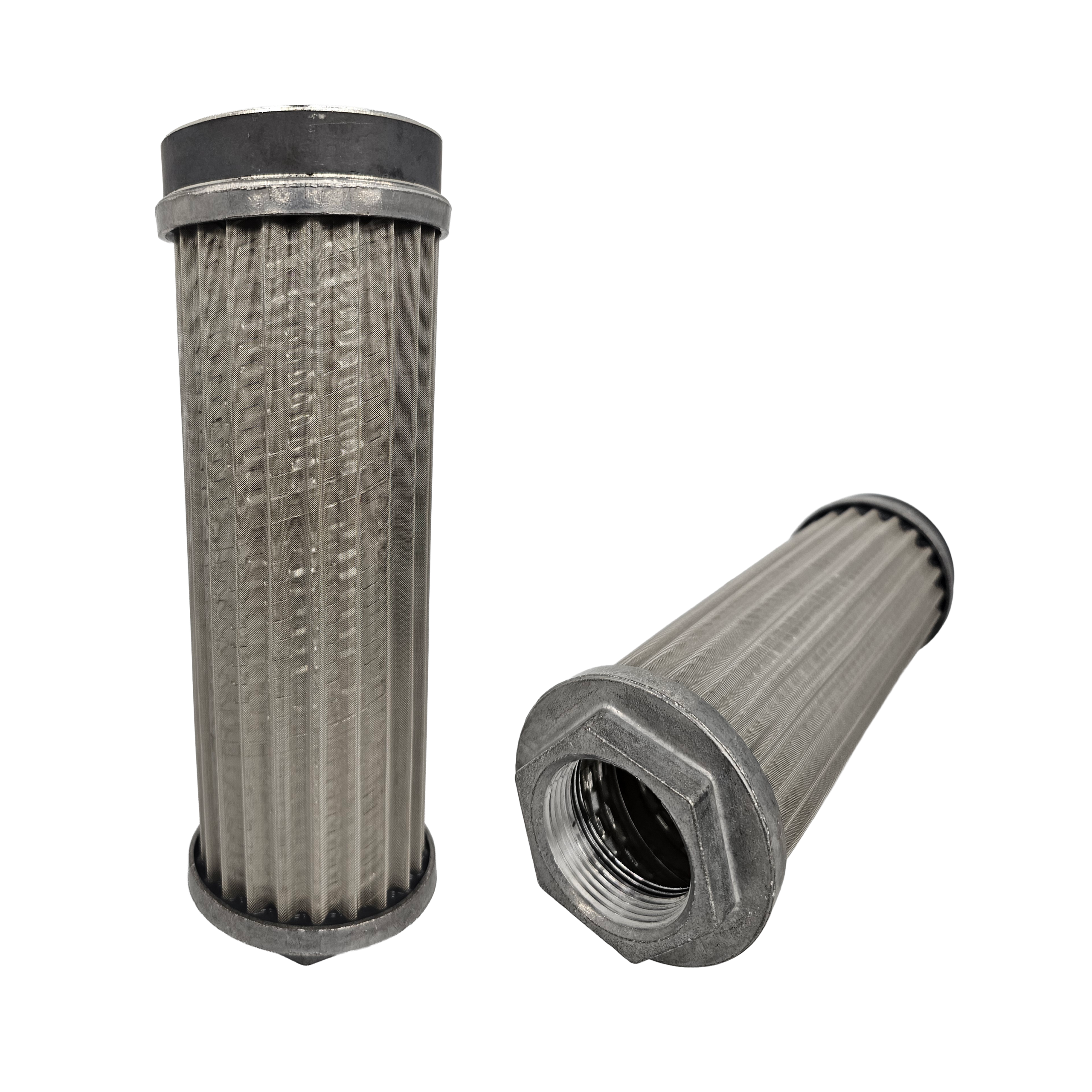

Zinga SS15000M1A Hydraulic Strainer

The Zinga SS15000M1A is a high-capacity submerged suction strainer from the Zinga SS Series, engineered to provide dependable first-stage filtration and enhanced contamination control in hydraulic reservoir suction circuits. Designed for in-tank installation at the pump inlet, this strainer helps prevent large contaminants from entering the hydraulic system, protecting pumps and downstream components from premature wear, reduced efficiency, and contamination-related failures.

Featuring a 1-1/2-inch NPTF outlet connection and a rated flow capacity of 32 GPM, the SS15000M1A is designed to support higher-flow hydraulic systems while maintaining efficient fluid delivery to the pump. Its increased flow capacity makes it an excellent choice for industrial machinery, mobile equipment, agricultural systems, material handling equipment, construction machinery, hydraulic power units, and other demanding fluid power applications where reliable inlet-side filtration is essential.

The strainer utilizes durable 100-mesh stainless steel filtration media to capture larger contaminants such as metal fragments, scale, debris, and other particulate matter before they can circulate throughout the hydraulic system. This coarse filtration stage serves as a critical first line of defense, helping maintain cleaner hydraulic fluid, reduce component wear, and improve overall system reliability.

The M1A configuration incorporates a magnetic assembly with polarizing steel end plates mounted on one end of the strainer, providing an additional level of contamination control. This magnetic system actively attracts and retains ferrous particles suspended within the hydraulic fluid, helping remove metallic contaminants that may not be captured by the stainless steel mesh alone. By trapping these particles within the reservoir before they reach the pump, the magnetic assembly contributes to improved fluid cleanliness and enhanced protection of critical hydraulic components.

Designed without a bypass valve, the SS15000M1A provides direct suction-side filtration while maintaining efficient fluid flow to the pump. Its design is optimized to balance effective contaminant removal with minimal flow restriction, helping support proper pump inlet conditions and reducing the risk of cavitation or other flow-related performance issues.

Manufactured to Zinga Filtration quality standards, the SS15000M1A is built for long-term durability and reliable performance in demanding operating environments. Its rugged construction, corrosion-resistant stainless steel filtration media, and integrated magnetic contamination control make it well-suited for continuous-duty hydraulic applications where equipment protection and fluid cleanliness are top priorities.
