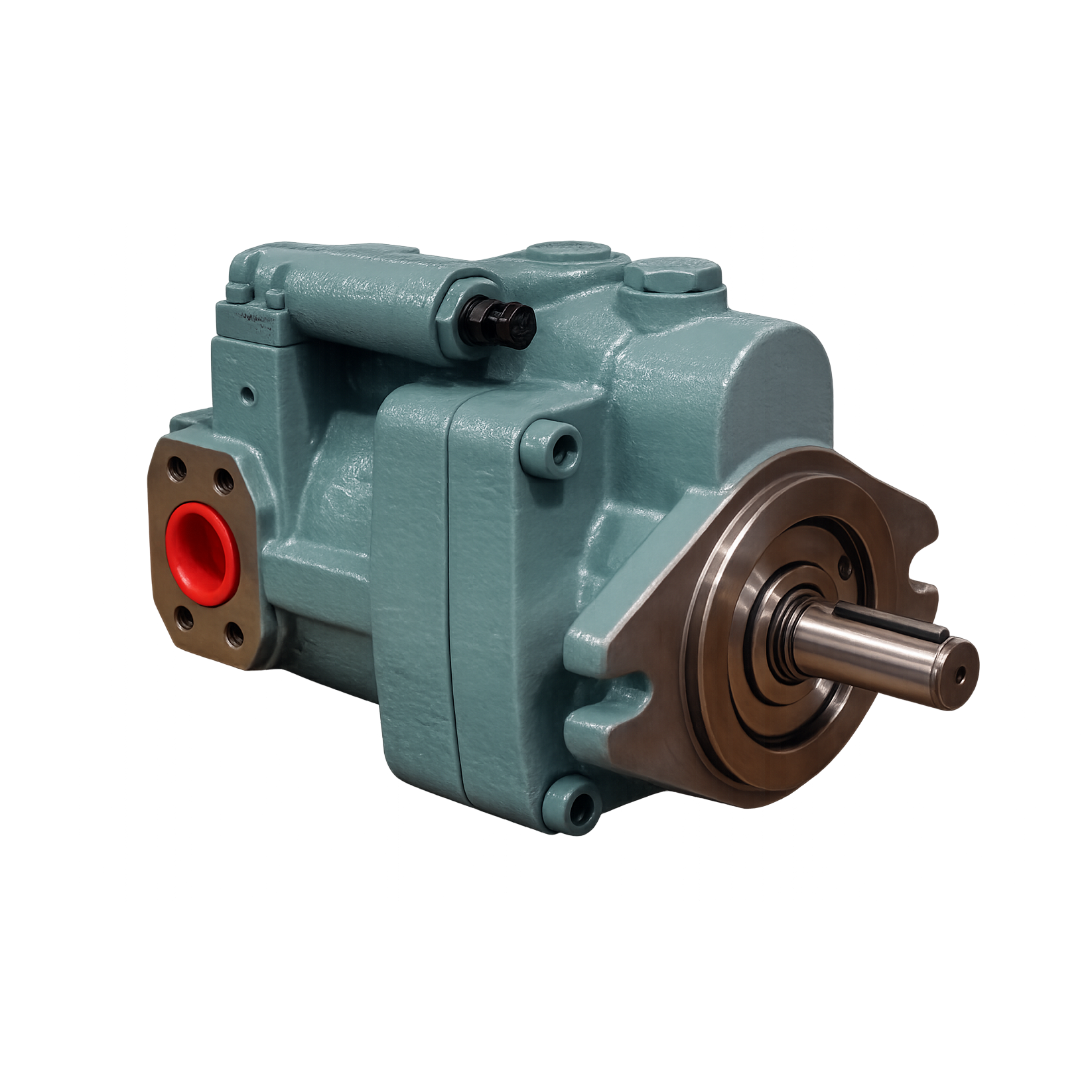

Hyvair Piston Pump 16 GPM – PCP16-3K-2BK-2

The Hyvair PCP16-3K-2BK-2 piston pump is a robust, pressure-compensated axial piston pump designed for demanding industrial hydraulic systems requiring consistent 16 GPM flow at working pressures up to 3000 PSI. Built for reliability in continuous-duty environments, it delivers efficient power for presses, machine tools, injection molding equipment, and other high-cycle applications where uptime and precise pressure control are critical.

This 35.0 cc (2.14 cu in/rev) pump features standard clockwise rotation and a dual-bolt SAE B mounting flange, providing a compact, industry-standard footprint that simplifies integration into new or existing power units. The 7/8″ keyed shaft (2.125″ length with 1/4″ key) ensures positive torque transmission and compatibility with common industrial drive couplings.

On the hydraulic side, the pump is configured with a large 1-1/4″ inlet flange to minimize inlet restrictions and a 1″ SAE Code 61 outlet flange to support high-pressure, high-flow operation with secure, leak-resistant connections. A dedicated #8 female SAE case drain port promotes proper case flushing, reduces internal heat, and extends bearing and seal life.

As a pressure-compensated, variable-volume design, the PCP16-3K-2BK-2 automatically reduces flow once system pressure reaches the set point, lowering input horsepower requirements, reducing oil heating, and improving overall system efficiency compared to fixed-displacement pumps with relief valves. This makes it an excellent choice for systems with varying load demands or intermittent duty cycles.

Engineered with a rugged housing and serviceable internal components, the Hyvair PCP16-3K-2BK-2 offers long service life, straightforward maintenance, and dependable performance in harsh industrial environments where consistent hydraulic power and low total cost of ownership are essential.
