$1,664.68

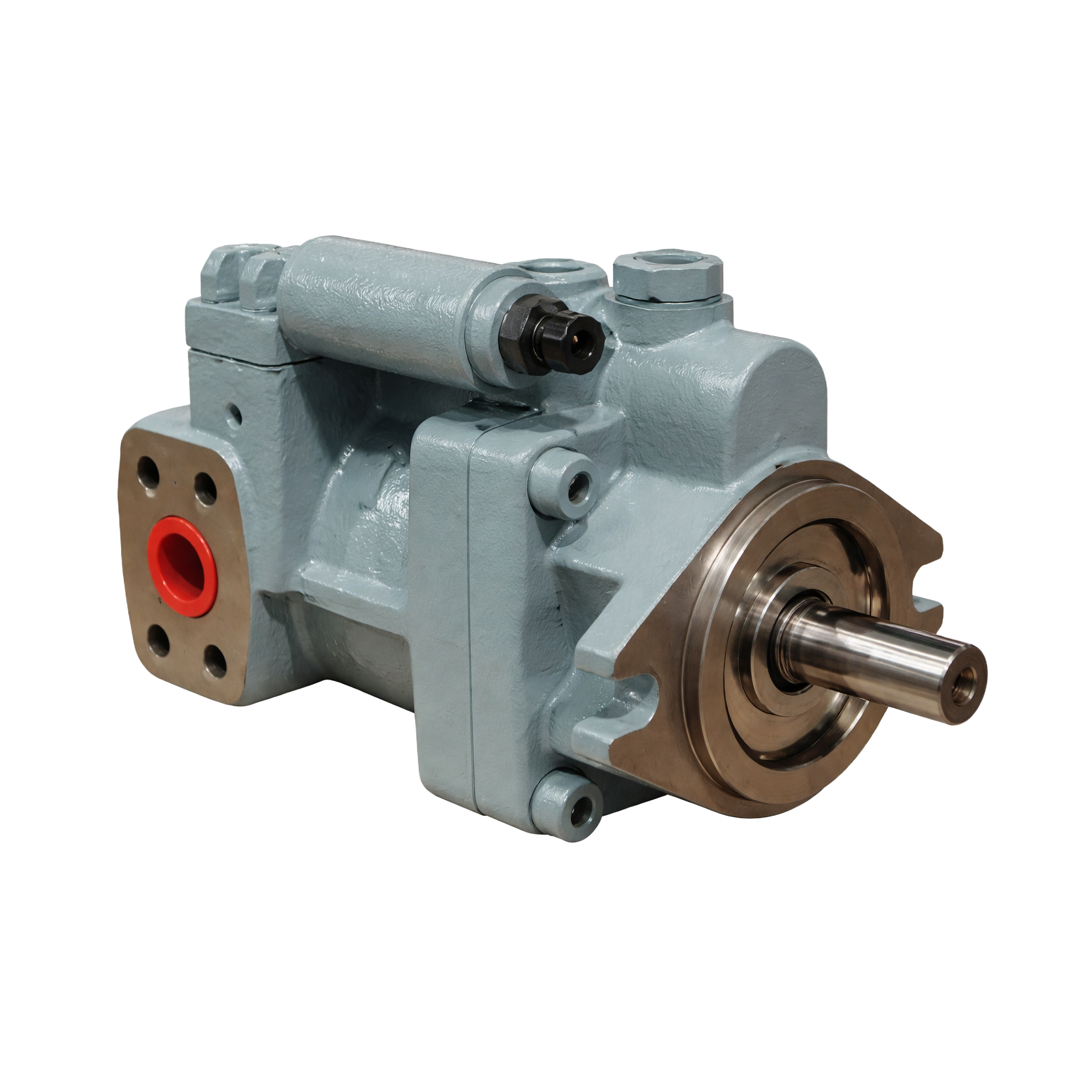

The Hyvair PCP10-3K-2AK-2 is an industrial piston pump from the PCP10 Series, rated for 10 gpm at a maximum speed of 1800 rpm. It works across a pressure range of 500 to 3000 psi, with a maximum pressure of 3000 psi. This is part number PCP10-3K-2AK-2.
It mounts on a 2 bolt SAE A flange. The drive shaft is 3/4 in diameter and 1.67 in long with a 3/16 in key, which drives through a keyed coupling half on the motor or engine side.
Flow adjustment is built in. You can set output below the full 10 gpm when the circuit needs slower actuator speed, without changing the pump or its drive. The control type is standard.
The inlet is a 1 in SAE Code 61 flange and the outlet is a 3/4 in SAE Code 61 flange. The case drain is a #6 female SAE port that carries oil from the pump housing back to the tank.
A piston pump turns shaft rotation into hydraulic flow, with pistons moving oil from the inlet to the outlet as the shaft turns. Order the PCP10-3K-2AK-2 when you need about 10 gpm up to 3000 psi from an SAE A, 2 bolt pump with a 3/4 in keyed shaft.
Related categories: Pumps · Industrial Piston Pumps · Control Type · GPM · Standard · 10 GPM
Brand: Hyvair
