$1,892.47

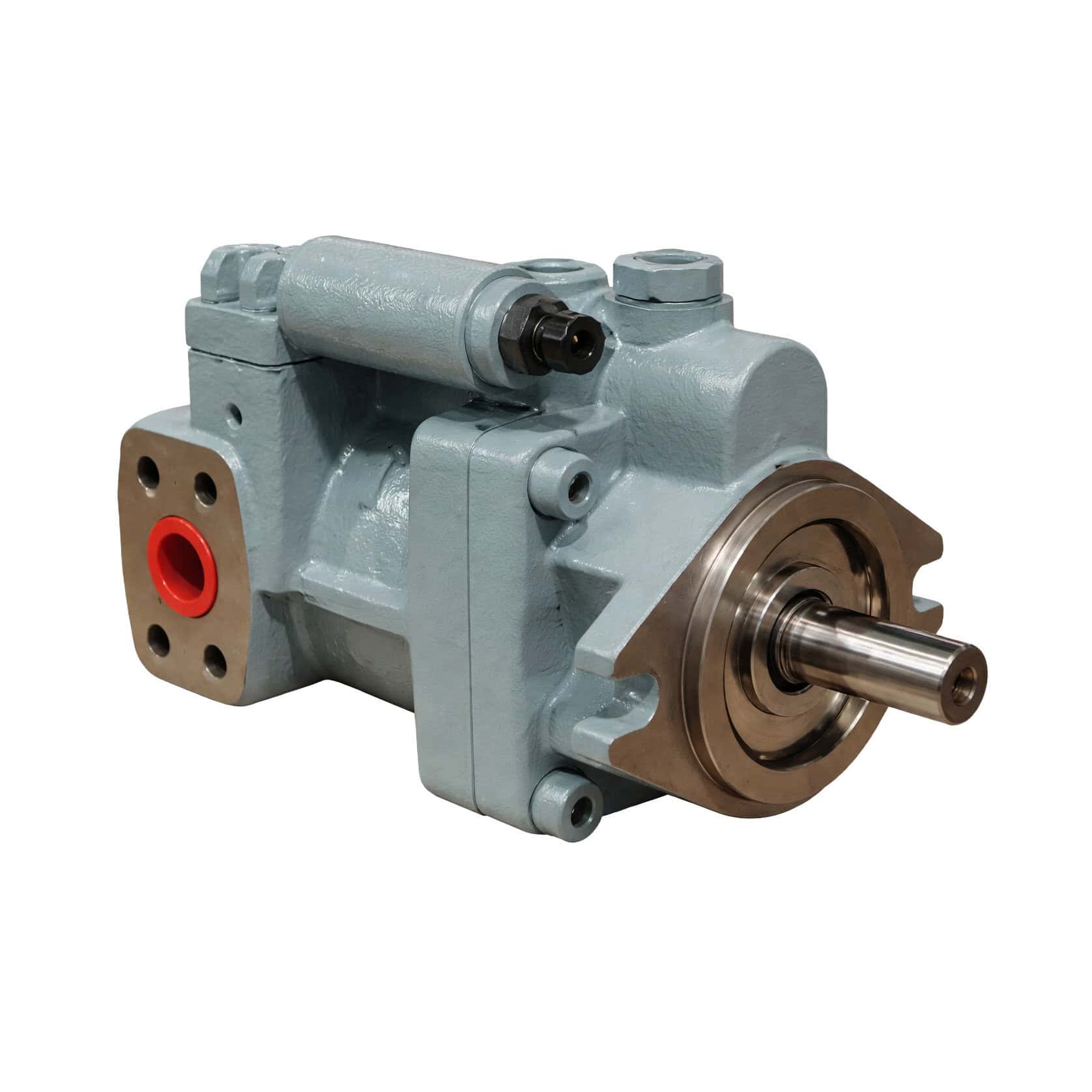

The Hyvair PCP10-3K-2AK-2-RC is an industrial piston pump in the PCP10 Series with a remote compensator. It is rated for 10 gpm at a maximum speed of 1800 rpm, with a pressure range of 500 to 3000 psi and a maximum pressure of 3000 psi. This is part number PCP10-3K-2AK-2-RC.
The remote compensator lets you adjust the pump’s pressure setting from a point away from the pump. The setting can be changed without reaching the pump itself.
The pump mounts on a 2 bolt SAE A flange with a 3/4 in diameter keyed shaft, 1.67 in long, with a 3/16 in key. Flow adjustment is included, so output can be set below the full 10 gpm when the circuit needs less flow.
The inlet is a 1 in SAE Code 61 flange and the outlet is a 3/4 in SAE Code 61 flange. A #6 female SAE case drain carries oil from the pump housing back to the tank.
Order the PCP10-3K-2AK-2-RC when you need about 10 gpm up to 3000 psi from an SAE A, 3/4 in keyed shaft pump and want to set system pressure remotely.
Related categories: Pumps · Industrial Piston Pumps · Control Type · GPM · Standard · 10 GPM
Brand: Hyvair
