$3,987.50

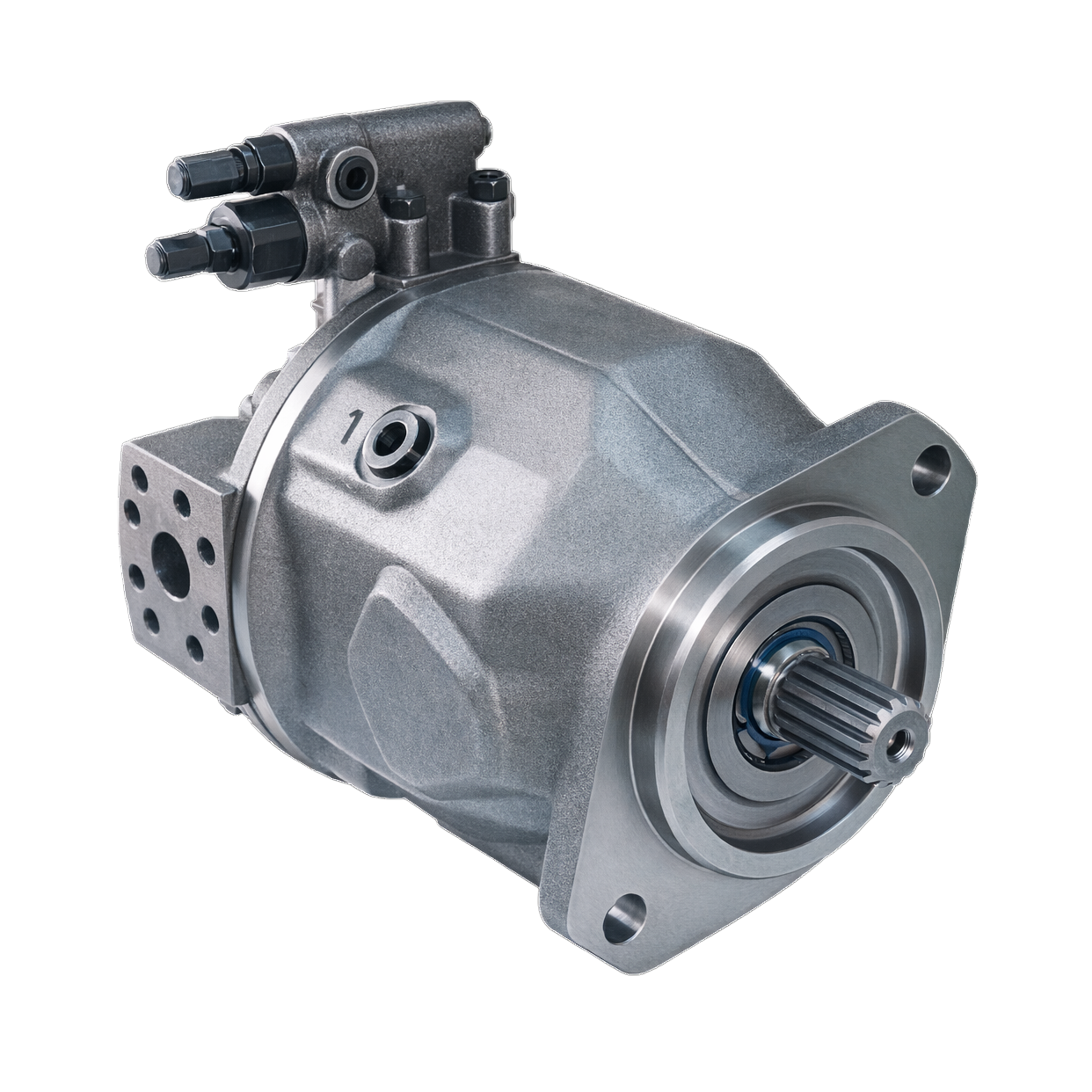

The Hyvair A10VSO71DFR/31R-PKC62-N00 is an A10V71 Series mobile hydraulic axial piston pump with a volume stop. It has a maximum speed of 2,200 rpm and a flow of 33.8 gpm, with a 2-bolt SAE C mount and a 1-1/4 in diameter keyed drive shaft.
This is a variable displacement, swashplate design. The swashplate angle controls piston stroke, and piston stroke controls flow. The volume stop limits how far displacement can increase, which caps maximum flow at a set point below full output when the circuit calls for less oil.
The keyed shaft is 1-1/4 in in diameter and 1.625 in long, with a 5/16 in key, and the pump includes flow adjustment. Maximum torque is 316 Nm (2,797 in-lbs). Match the coupling and the drive’s torque output to these figures.
Ports are on the side of the pump. The inlet is a 2 in SAE Code 61 flange, the outlet is a 1-1/4 in SAE Code 61 flange, and the case drain is a #6 female SAE port.
Size the inlet line to suit the 2 in flange and run the case drain to tank with minimal restriction. Confirm the shaft and flange against your drive before ordering, and keep drive speed at or below the 2,200 rpm maximum.
Related categories: Pumps · Mobile Piston Pumps · A10V71 Series
Brand: Hyvair
