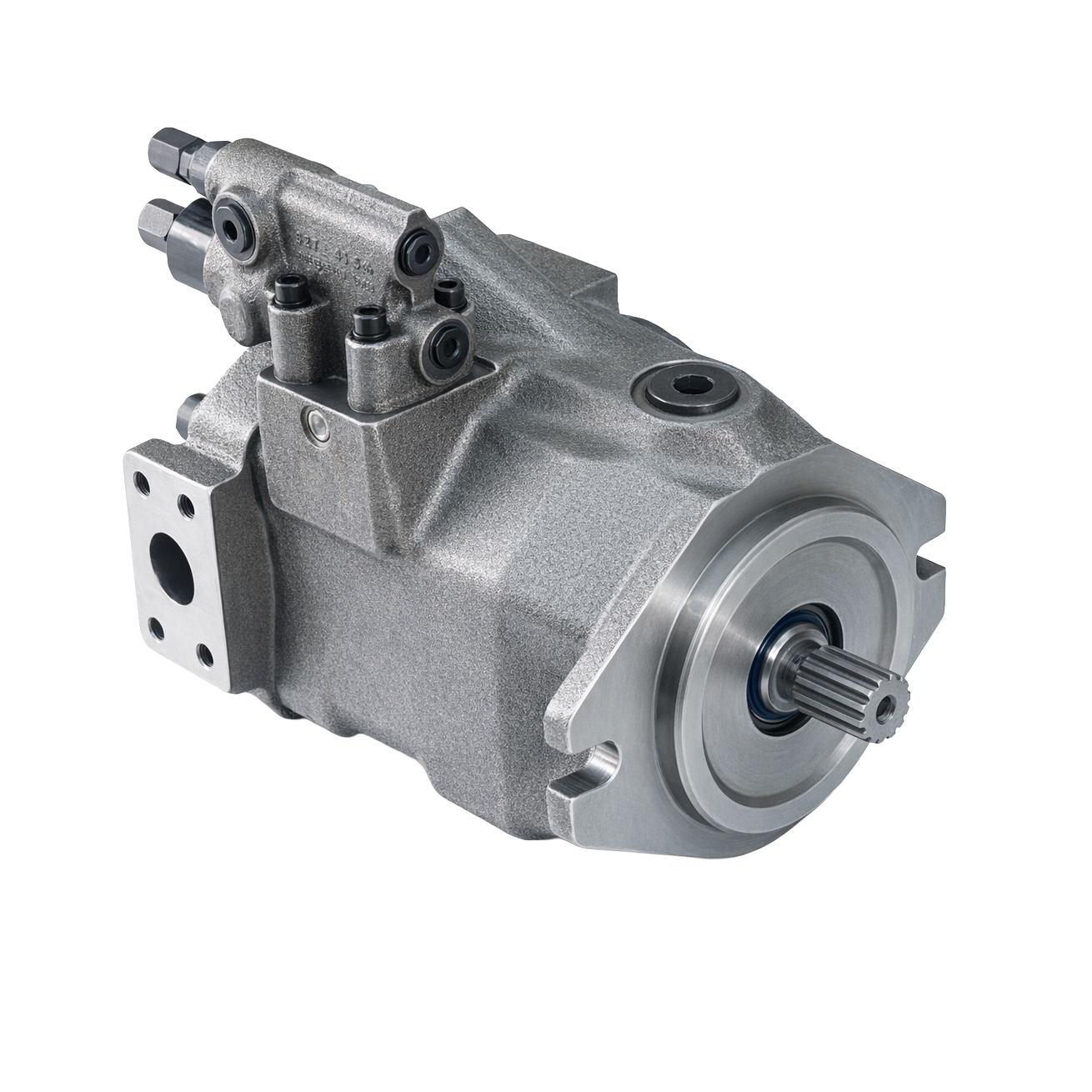

Images used may not represent the actual product.
$3,354.96
The Hyvair A10VSO45DFR/52R-PKC62-N00 is a variable displacement axial piston pump from the A10V45 Series, fitted with a volume stop. It is rated for 21.4 gpm, with a maximum speed of 2,600 rpm and a maximum torque of 200 Nm (1,770 in-lbs).
The pump uses a swashplate design. Pistons in a rotating cylinder block stroke against an angled plate, and changing the plate angle changes how much oil each revolution delivers. The volume stop limits that angle, so you can cap maximum flow below full displacement when the circuit needs less than the pump can make. The drive shaft specification also lists flow adjustment.
Mounting is a 2-bolt SAE BB flange with a 1 in diameter keyed shaft, 1.375 in long, with a 1/4 in key. All ports are on the side of the housing: a 1-1/2 in SAE Code 61 flange inlet, a 1 in SAE Code 61 flange outlet and a #6 female case drain. Side porting keeps the hoses clear of the rear of the pump.
Pressure rating, shaft rotation, control settings and seal material are not covered here. Confirm them against your circuit or the pump you are replacing before ordering, and check that your drive can supply the torque and speed listed above.
Related categories: Pumps · Mobile Piston Pumps · A10V45 Series
Brand: Hyvair
