Images used may not represent the actual product.
$70.63

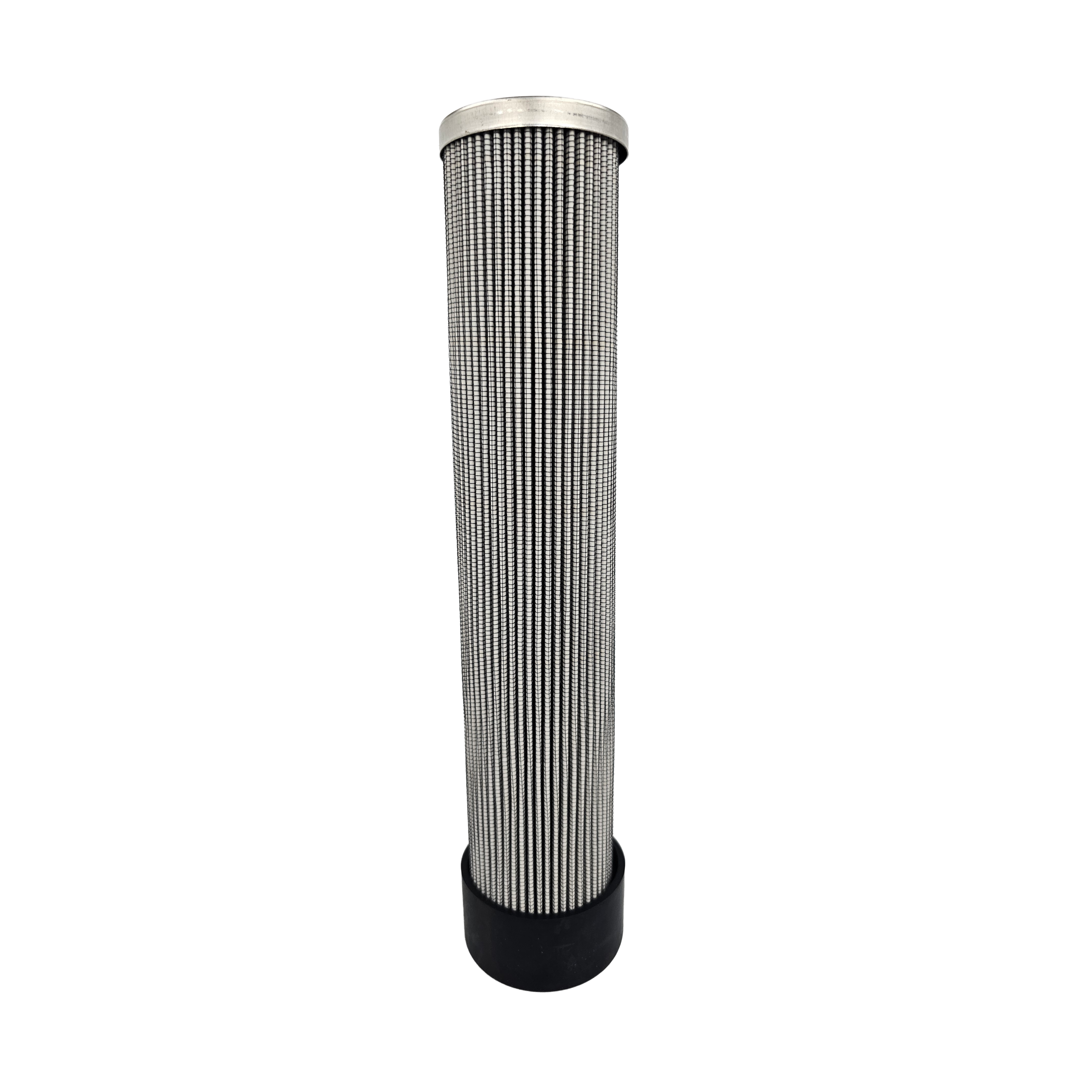

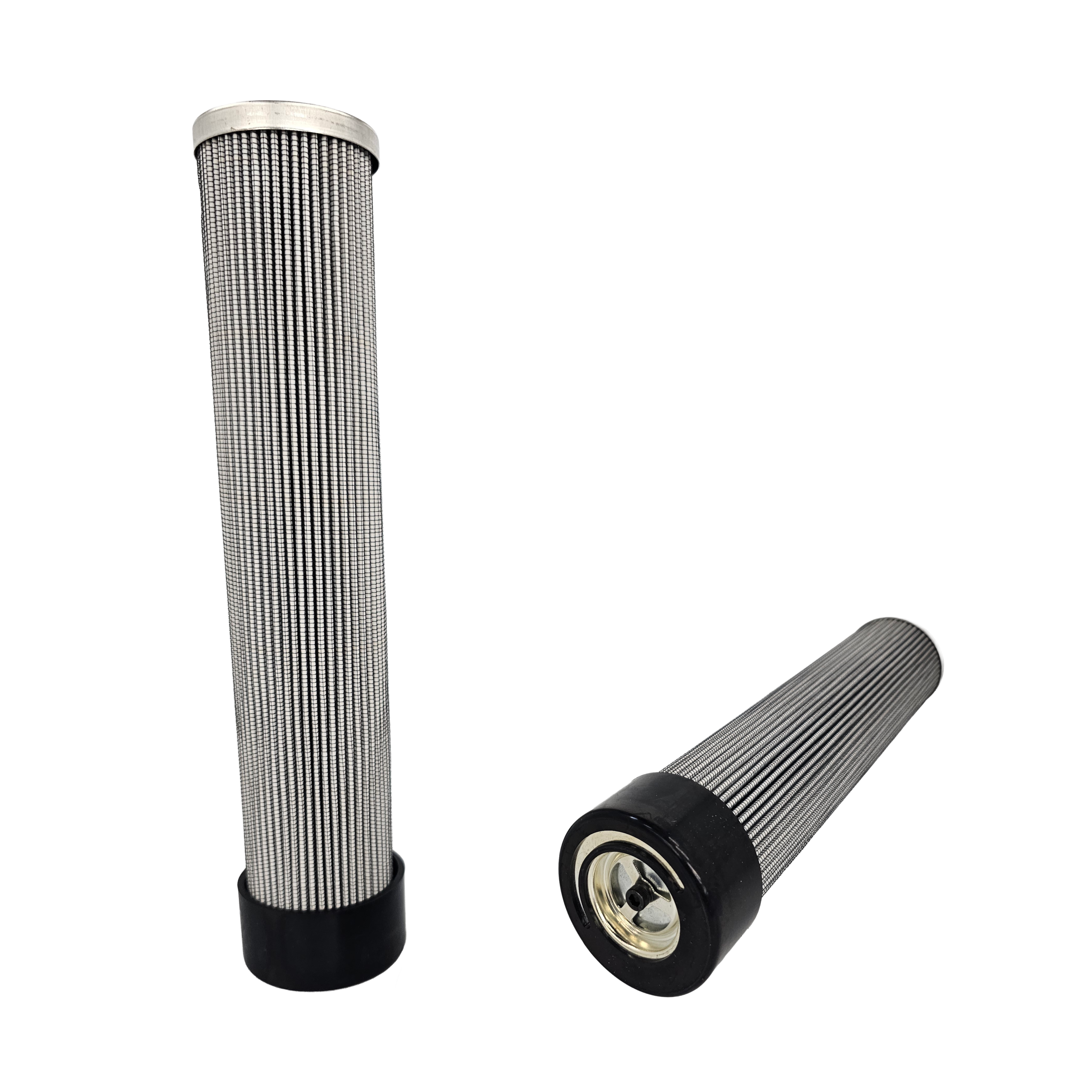

The Zinga ZSLE210 is a ZSLE2 Series tank mount filter element with 10 micron Z-Glass media. Z-Glass is a glass fiber media used for particle filtration in hydraulic fluid.
The element is 2.5 in outside diameter and 11.7 in long. Check these dimensions against your housing when ordering a replacement.
The absolute rating is ß10µ(c) = 200. A beta ratio compares the number of particles at a given size upstream of the media with the number downstream. A ratio of 200 at 10 microns means the media captures about 99.5 percent of particles at that size.
A tank mount element sits inside a filter housing on the reservoir and cleans the fluid that passes through it. The housing stays plumbed in place, so service comes down to opening it and replacing the element.
The 10 micron grade gives fine particle control while loading more slowly than a 3 micron element. Change it when the pressure drop rises or at the interval set for your equipment. Confirm the micron rating on the part number when reordering.
Related categories: Filtration & Fluid Conditioning · Zinga Filtration · Zinga Tank Mount · Zinga ZSLE Series
Brand: Zinga Filtration
