$59.62

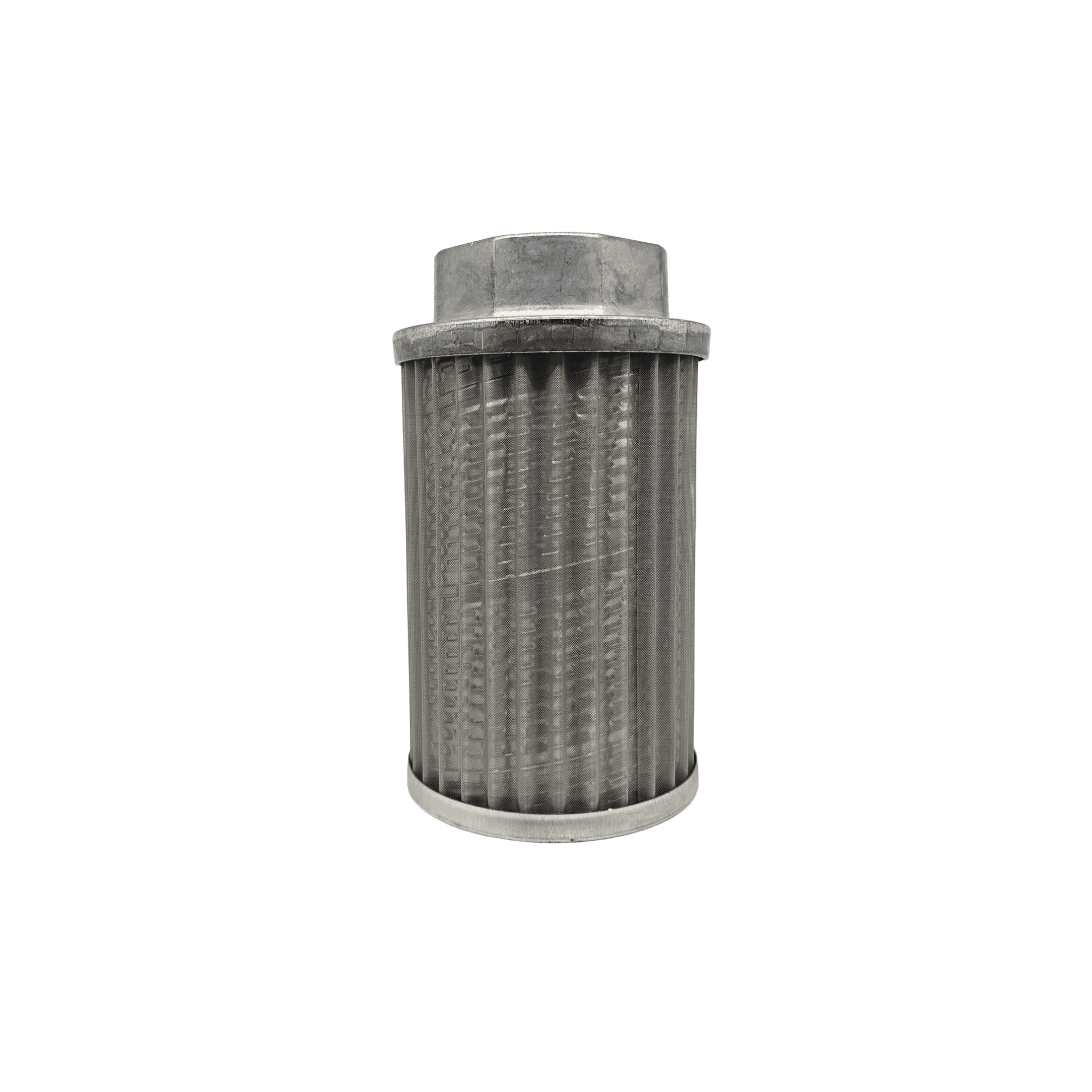

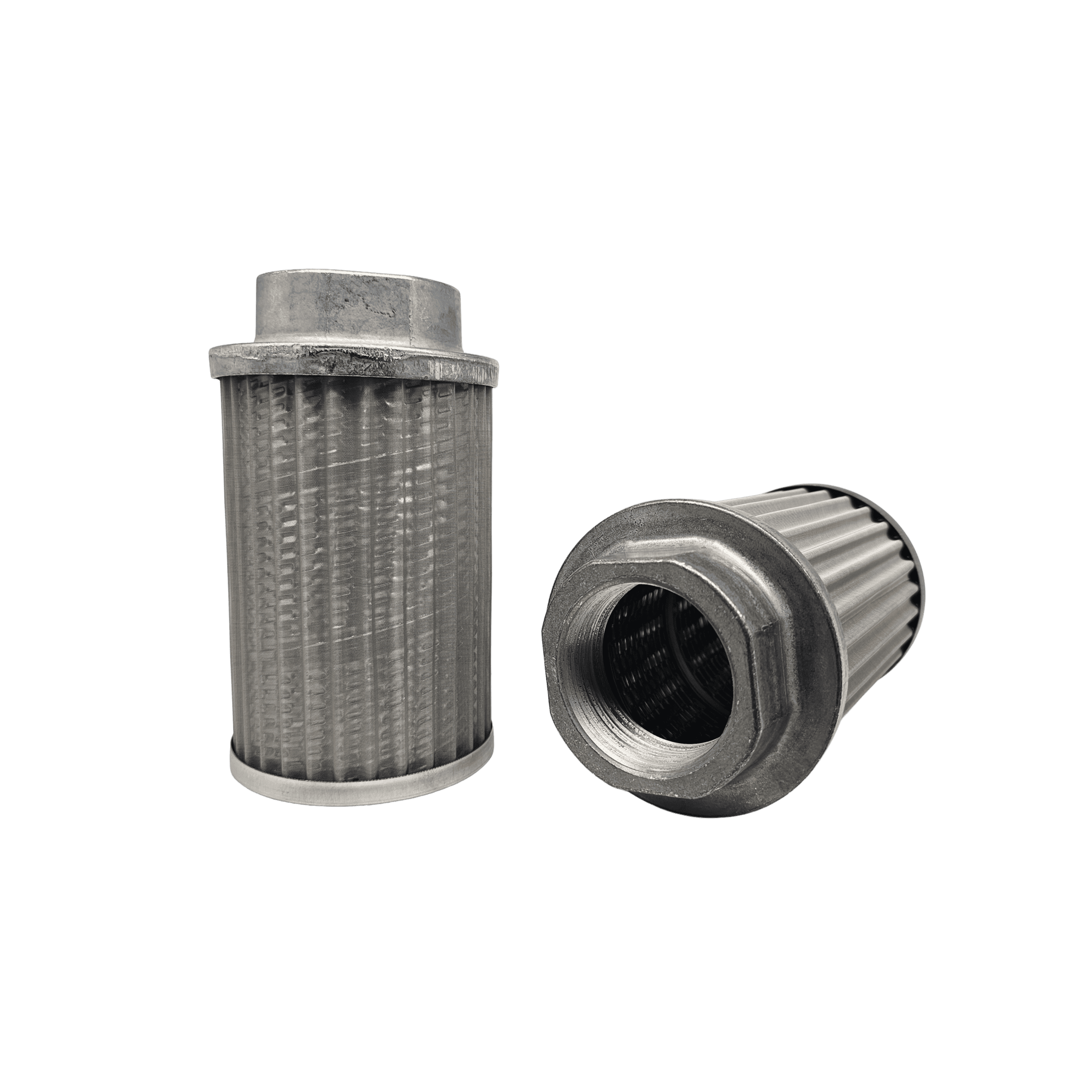

The Zinga SS20000 hydraulic suction strainer, part number SS20000, mounts inside the reservoir on the pump suction line to catch debris before it reaches the pump. It has a 2 in NPTF outlet and is rated for 53 gpm at 5 ft/sec.
A 100 mesh wire cloth element sits on a cast aluminum cover. The end caps use reverse taper wall construction, which locks mechanically with the epoxy adhesive to prevent bond failure, a benefit in rough-terrain vehicle applications. Pressure drop is under 1/2 psi at rated flow with 150 SUS oil.
The SS Series covers outlet ports from 1 to 3 in NPTF. This model has no bypass valve; 3 psi and 5 psi bypass valves are series options.
The wrench flat is 3.0 in, overall length is 7.2 in and outside diameter is 4.2 in. Operating temperature is up to 250 °F. A magnetic version, the SS20000M1A, is also available.
Related categories: Filtration & Fluid Conditioning · Zinga Filtration · Zinga Strainers · Zinga SS Series
Brand: Zinga Filtration
