$27.45

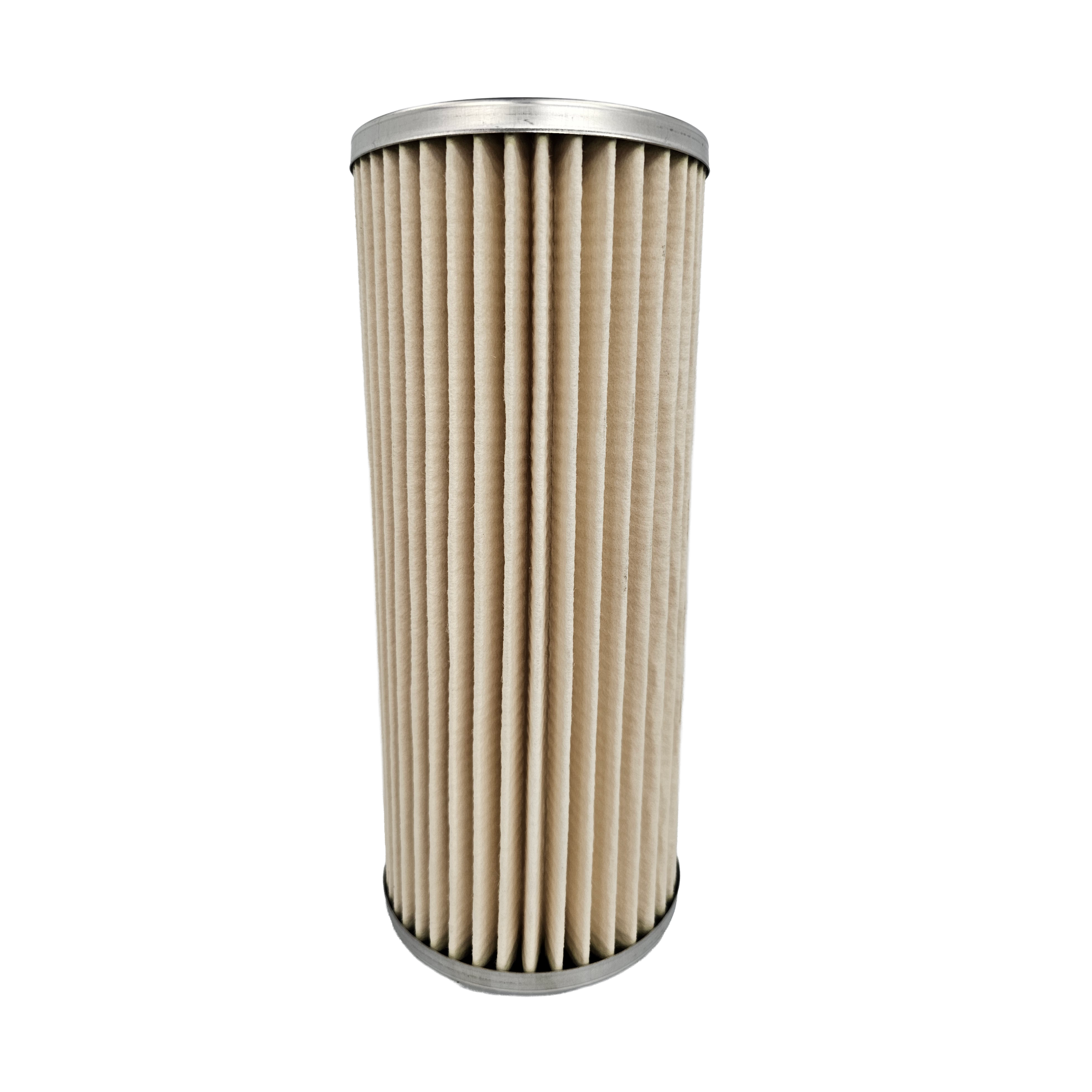

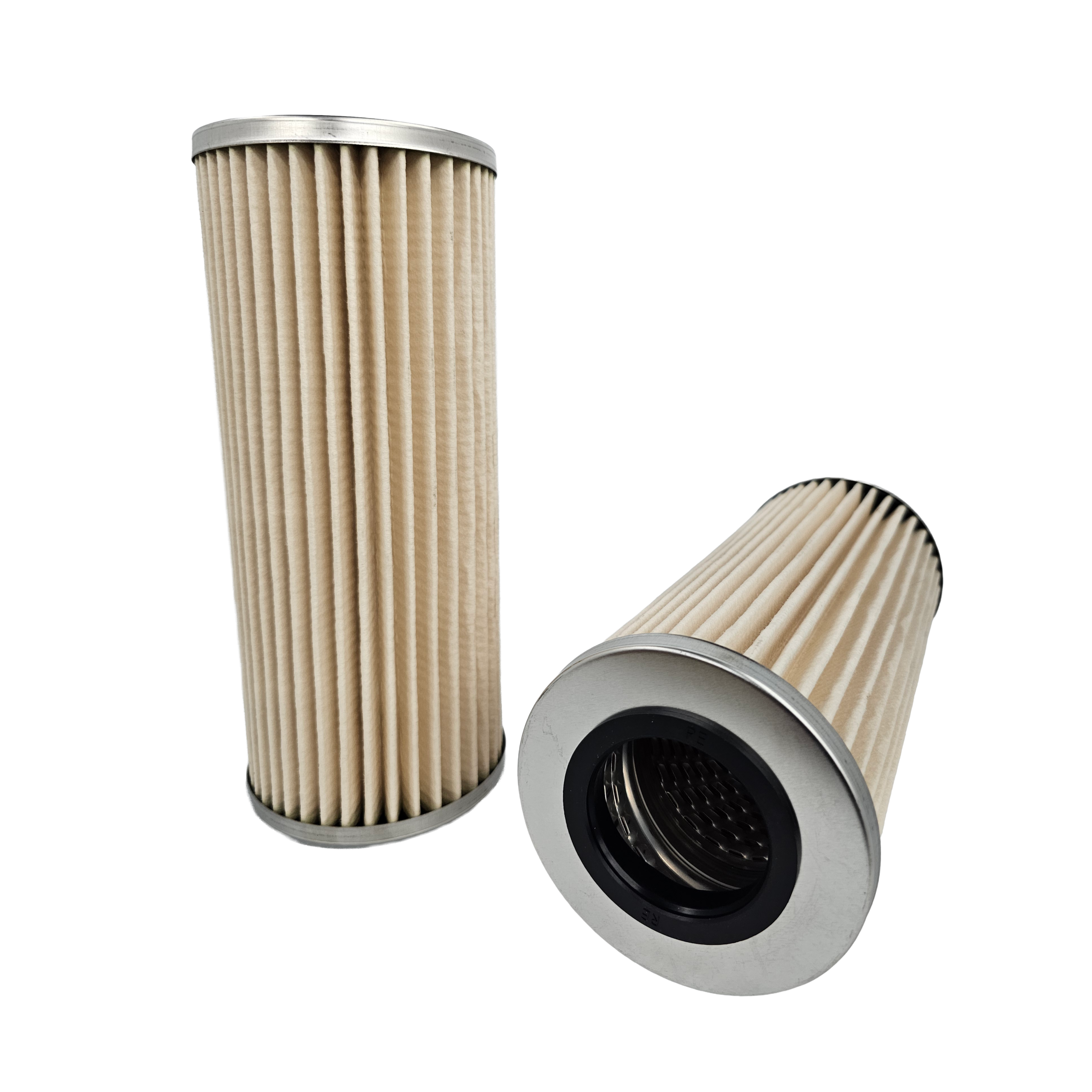

The Zinga RE40910AZ is an RE Series tank mount filter element with 10 micron Aqua-Zorb media and outside to inside flow. Aqua-Zorb is a water-absorbing media, so the element pulls free water out of the fluid while it also captures particles.
Dimensions are 3.91 in outside diameter, 1.96 in inside diameter and 9.19 in long. Confirm all three against your tank mount housing.
The nominal rating is β5µ(c) = 2 and the absolute rating is β19µ(c) = 75. A beta ratio of 2 at a particle size means about half of the particles at that size are captured. A ratio of 75 means about 98.7 percent are captured.
With outside to inside flow, fluid enters at the outer surface and exits through the center core. Use a housing that routes flow in that direction.
Water in hydraulic oil can cause rust, wear and fluid breakdown, and a water-absorbing element gives you a way to remove it in a standard tank mount format. When the media reaches its water capacity, flow through it drops. Watch the pressure drop and replace the element when it rises.
