$34.96

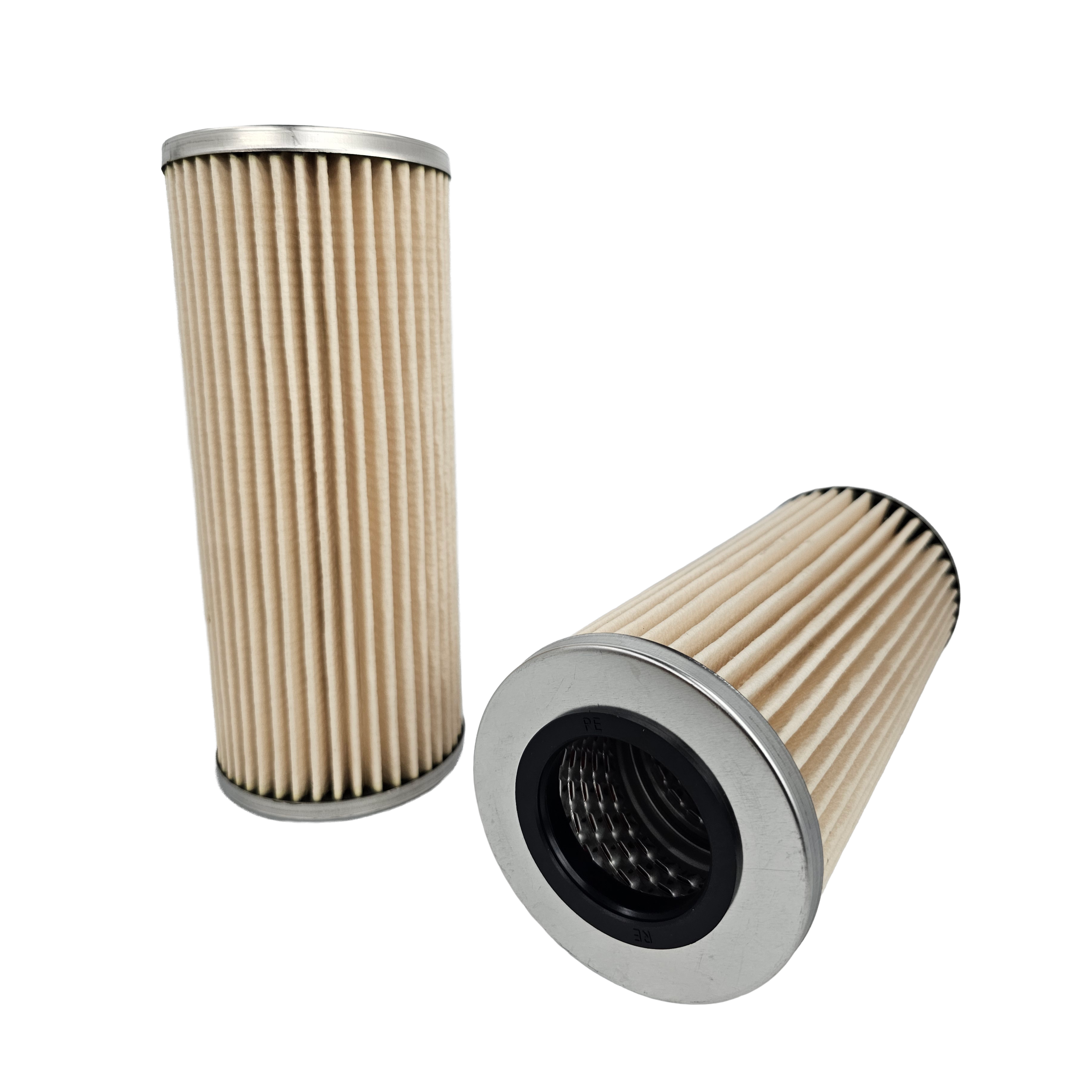

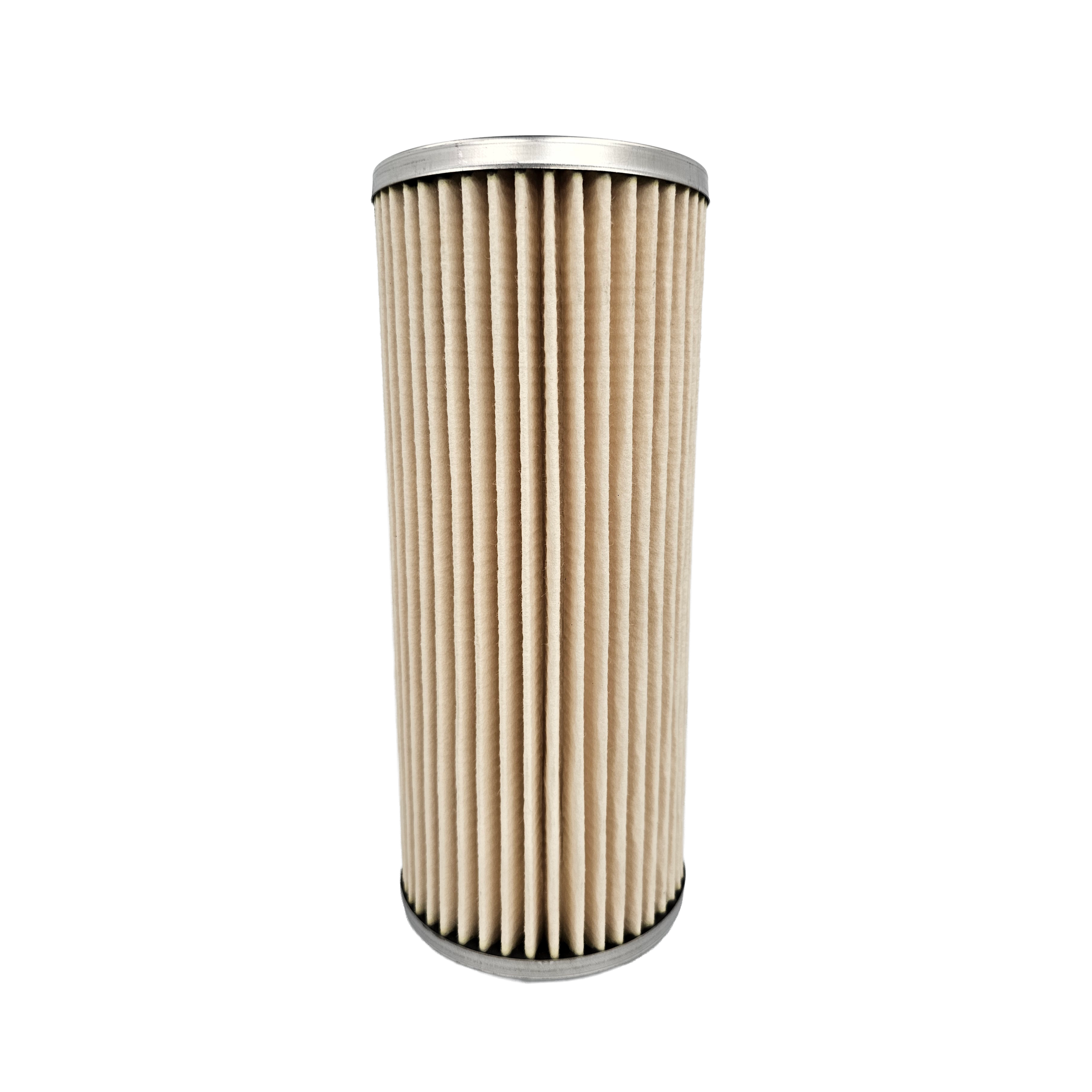

The Zinga RE40903AZ is an RE Series tank mount filter element with 3 micron Aqua-Zorb media and outside to inside flow. Aqua-Zorb is a water-absorbing media, so the element takes up free water from the fluid while it also captures particles.
Dimensions are 3.91 in outside diameter, 1.96 in inside diameter and 9.19 in long. Check those values against your tank mount housing before ordering.
The nominal rating is β<4µ(c) = 2 and the absolute rating is β11µ(c) = 75. In plain terms, a beta ratio of 2 at a particle size means the media captures about half of the particles at that size, while a ratio of 75 means it captures about 98.7 percent.
Outside to inside flow means fluid enters through the outer surface of the element and exits through the center core. Install it in a housing that routes flow in that direction.
Free water in hydraulic oil can lead to rust, wear and fluid breakdown. Once the media has absorbed its capacity of water, flow through it drops, so monitor the pressure drop and replace the element when it climbs.
