Images used may not represent the actual product.
$14.04

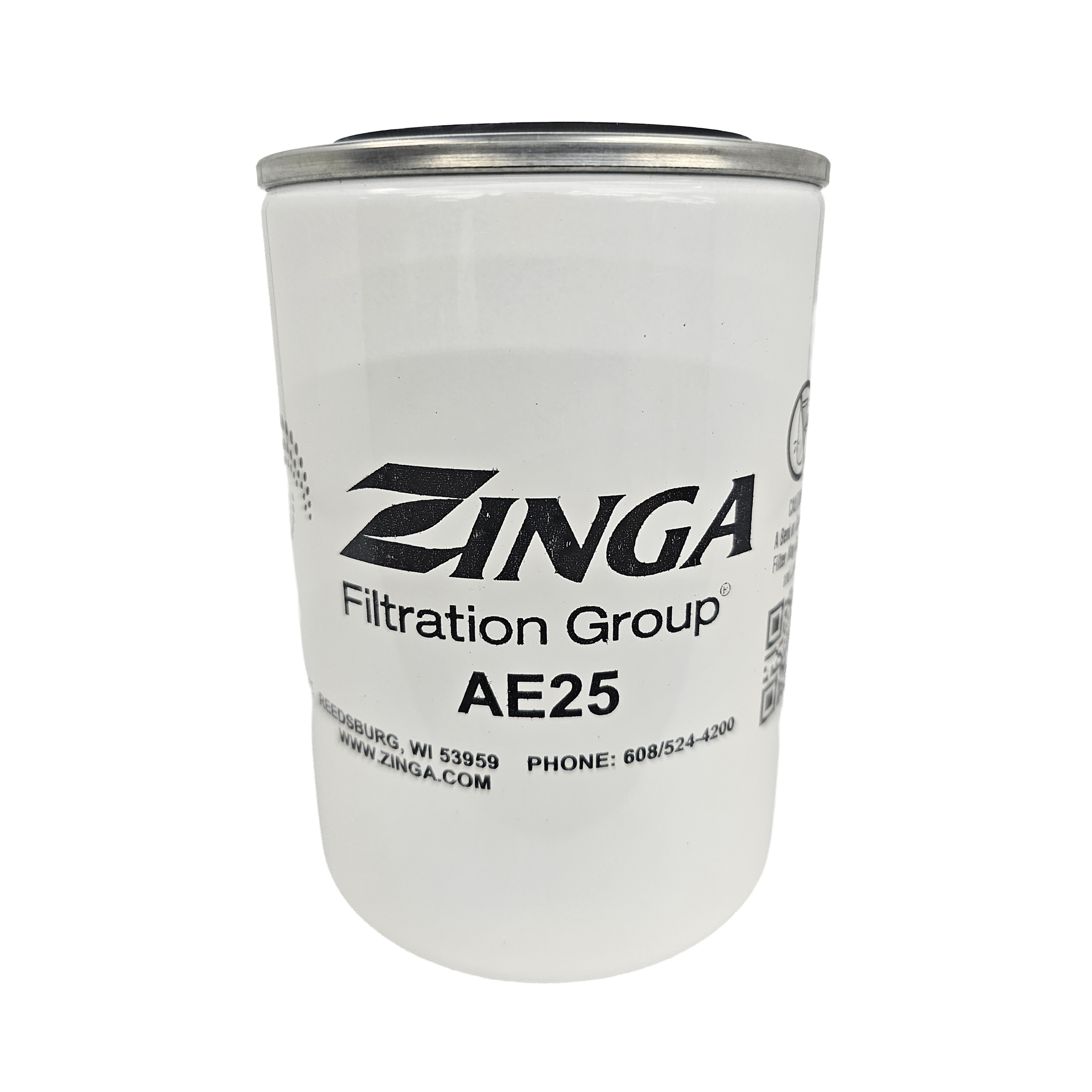

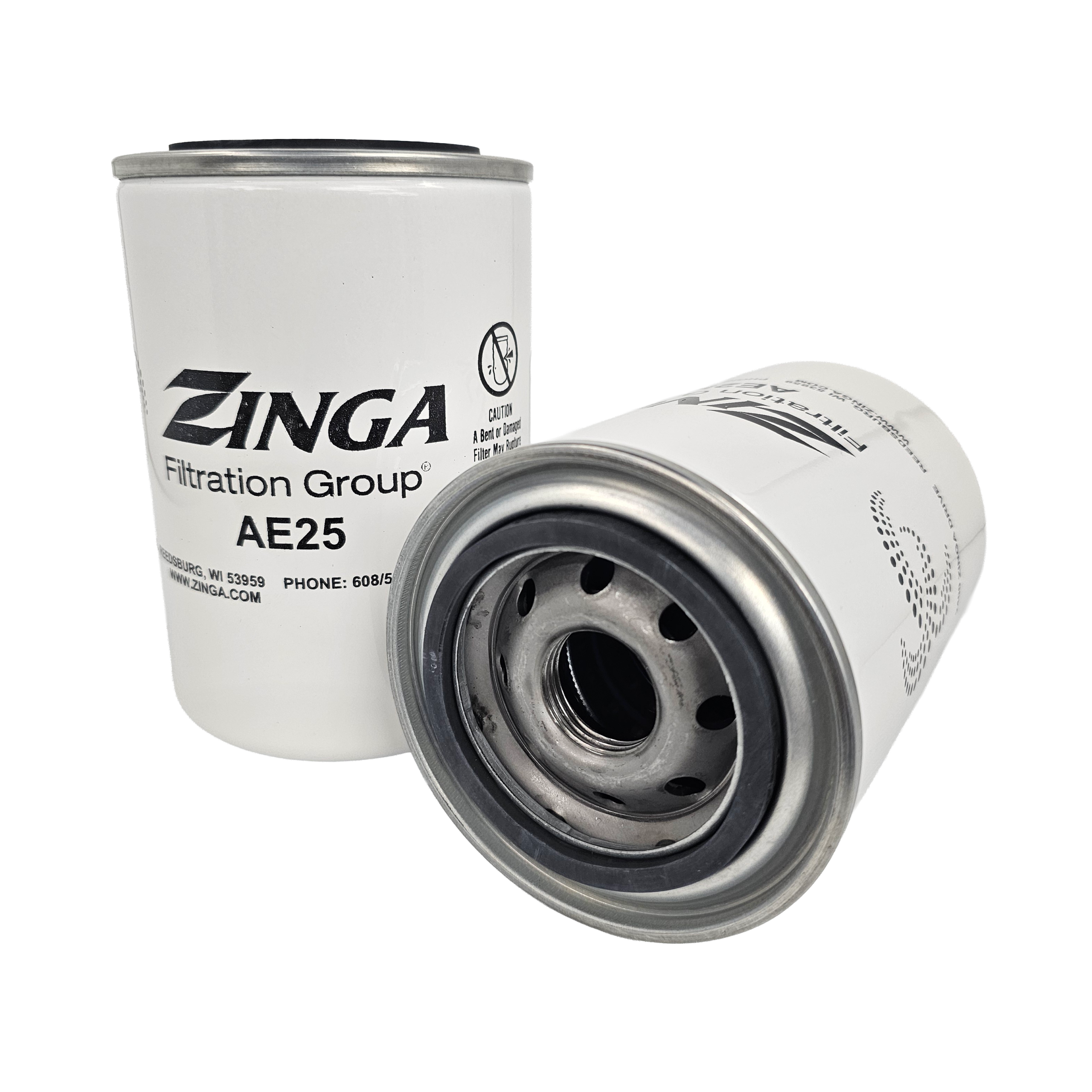

The Zinga AE25 is a dependable spin-on hydraulic filter element from the Zinga AE Series, designed to provide economical contamination control for hydraulic systems operating in industrial, mobile, agricultural, manufacturing, and OEM applications. Engineered for use with Zinga ZAF Series filter heads, the AE25 delivers reliable return-line filtration for hydraulic circuits where maintaining fluid cleanliness is important while offering a cost-effective solution for applications that do not require fine-micron filtration.
Featuring a 25-micron cellulose filtration media, the AE25 efficiently removes larger particulate contaminants from hydraulic fluid while maintaining excellent flow characteristics throughout the system. Its coarser filtration rating makes it well suited for standard-duty hydraulic applications where a balance of contaminant removal, unrestricted fluid flow, and economical operating costs is desired. By reducing the circulation of abrasive particles, the AE25 helps protect pumps, valves, cylinders, motors, and other hydraulic components from unnecessary wear, contributing to improved system reliability and longer equipment service life.
Constructed with durable cellulose filter media, the AE25 provides consistent filtration performance and dependable contaminant retention under normal hydraulic operating conditions. With an impressive 547 square inches of effective filter media area, the element offers excellent dirt-holding capacity, allowing it to retain contaminants while maintaining low flow restriction throughout its service life. The generous media area also helps extend filter replacement intervals and supports consistent hydraulic system performance between maintenance cycles.
The filter element measures 3.8 inches in outside diameter and 5.8 inches in overall height and features a standard 1″-12 UN mounting thread for secure installation into compatible ZAF Series filter heads. Rated for a maximum operating pressure of 250 PSI, the AE25 incorporates a durable Buna-N gasket that provides a reliable, leak-resistant seal for dependable operation in a wide variety of hydraulic systems.
Ideal for hydraulic power units, manufacturing equipment, agricultural machinery, construction equipment, mobile hydraulic systems, material handling equipment, and other general-purpose fluid power applications, the Zinga AE25 offers an economical filtration solution without sacrificing dependable performance. Its combination of durable 25-micron cellulose media, large 547-square-inch filter media area, reliable construction, and cost-effective operation makes it an excellent choice for hydraulic systems where coarser filtration provides the appropriate level of contamination control and long-term equipment protection.
Related categories: Filtration & Fluid Conditioning · Zinga Filtration · Zinga Spin-On Filter Elements · Zinga AE Series
Brand: Zinga Filtration
