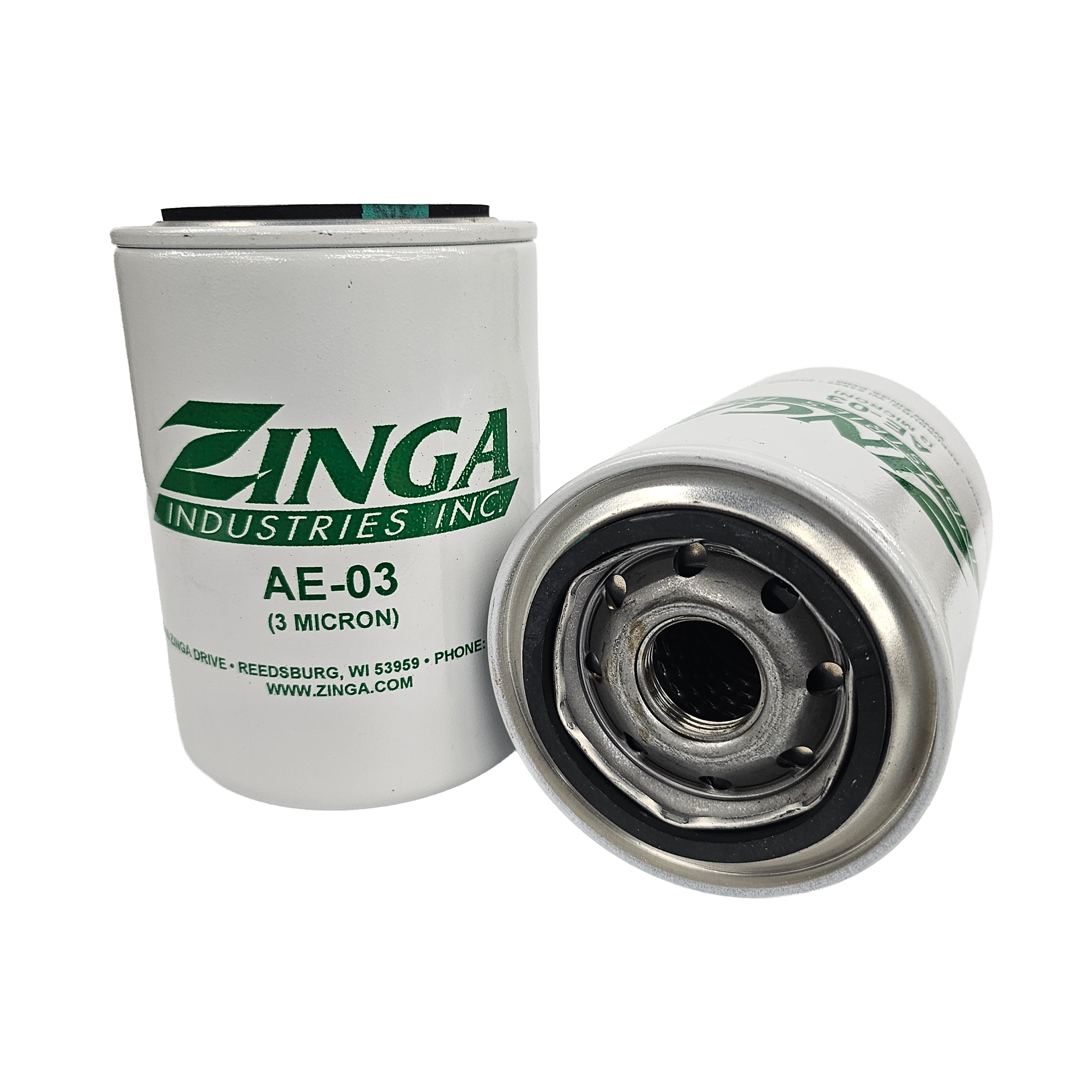

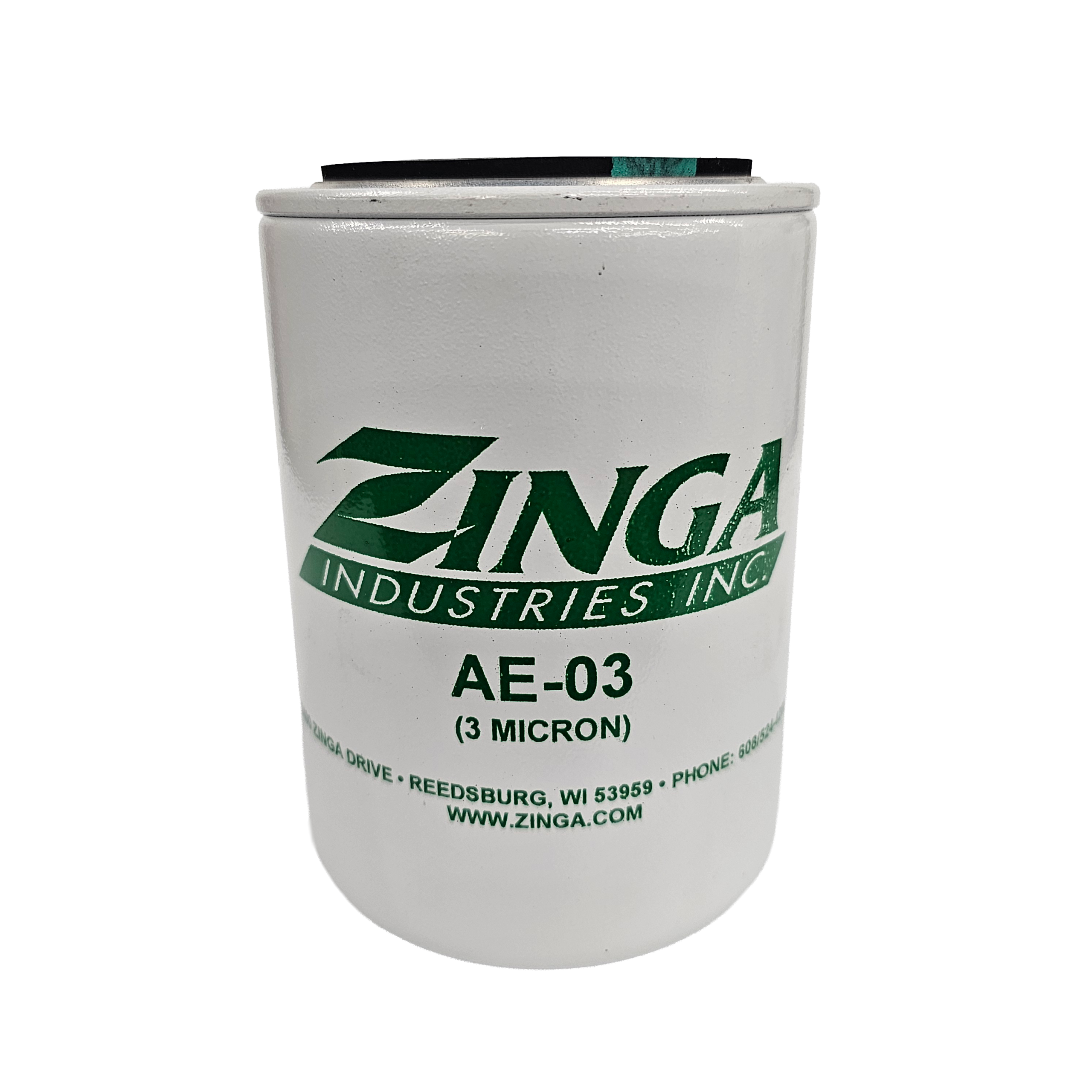

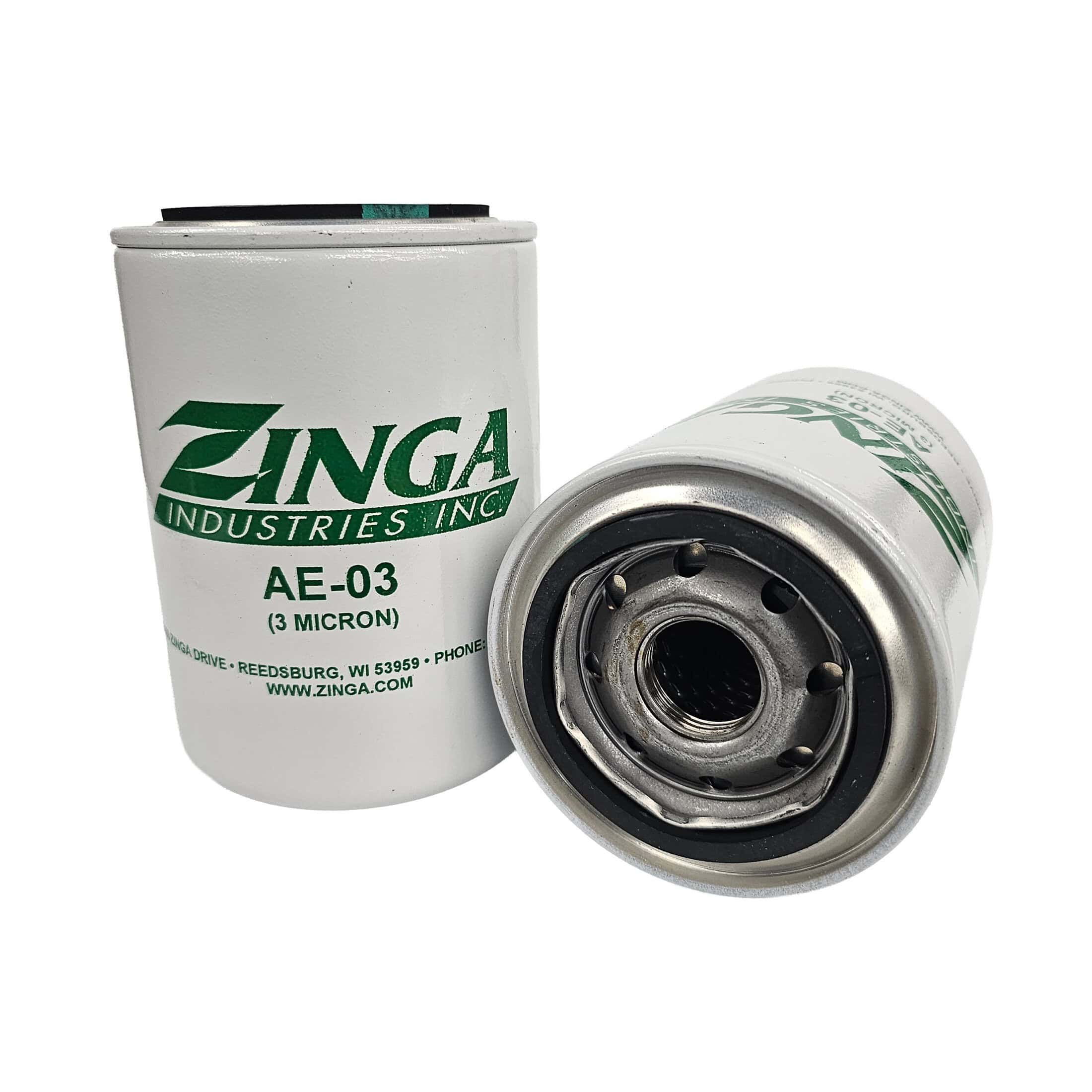

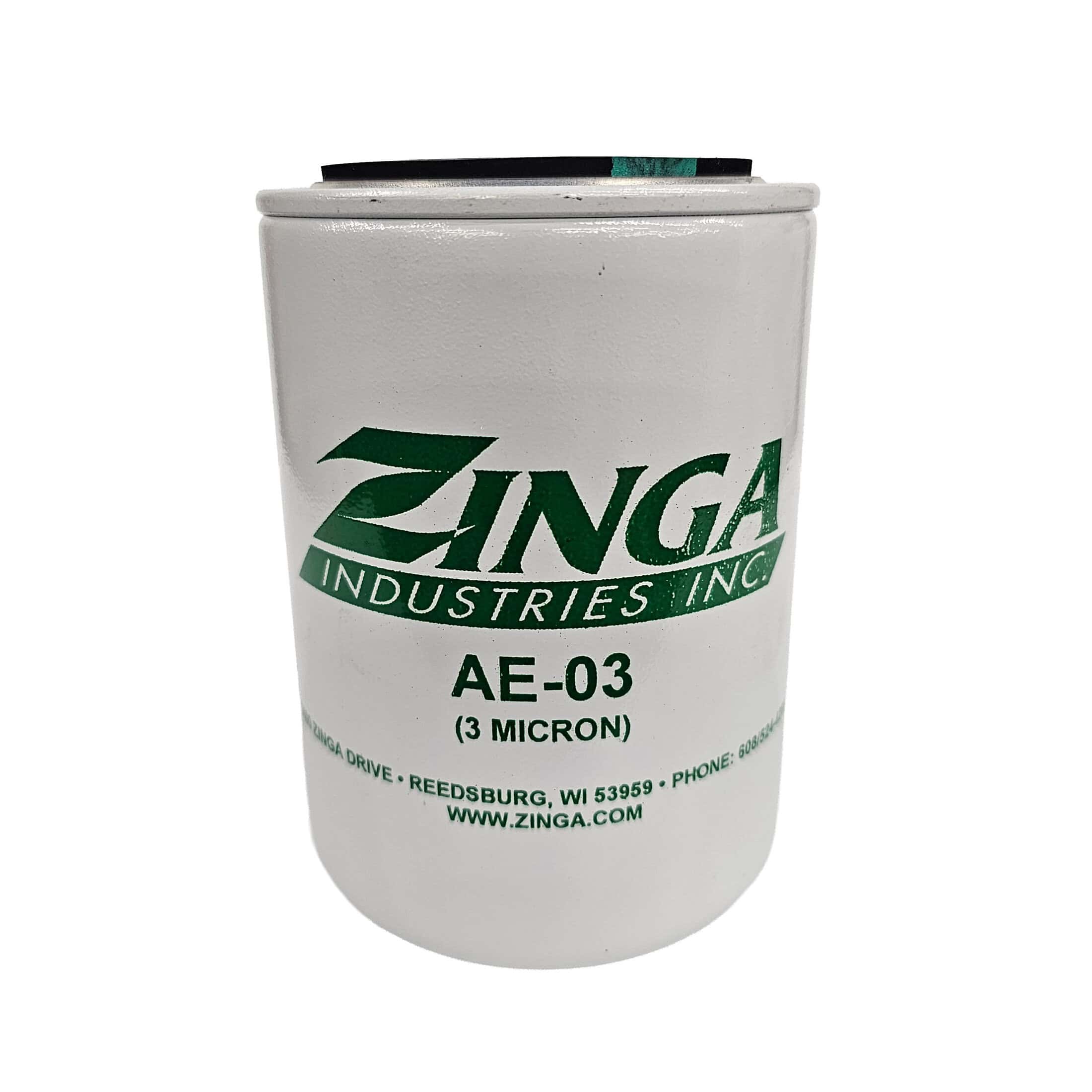

Zinga AE03 Spin on Hydraulic Filter

The Zinga AE03 is a high-efficiency AE Series spin-on hydraulic filter element engineered to provide superior contamination control in return line and suction-side hydraulic filtration applications. Designed for use with Zinga ZAF Series filter heads, this premium filter element utilizes advanced 3-micron cellulose filter media to capture fine particulate contamination and help protect pumps, valves, cylinders, and other critical hydraulic components from premature wear and damage. Featuring a nominal filtration rating of 3 microns and an absolute efficiency rating of β7µ(c) = 75, the AE03 filter delivers exceptional particle removal performance, capturing approximately 98.7% of contaminants at the rated particle size while maintaining efficient fluid flow throughout the system. Its generous 420 square inches of filter media area provides high dirt-holding capacity, extended service life, and reduced maintenance intervals compared to lower-capacity filters. The AE03 spin-on filter element measures 3.8 inches in outside diameter by 5.8 inches in overall height and utilizes a durable 1"-12 UN mounting thread for quick and reliable installation. A standard Buna-N gasket provides dependable sealing performance with petroleum-based hydraulic fluids, while the rugged construction supports operating pressures up to 250 PSI with a maximum differential pressure rating of 50 PSID. The element is also rated for operating temperatures up to 250°F, making it suitable for demanding industrial and mobile hydraulic applications. Designed specifically for hydraulic systems operating with petroleum-based fluids, the AE03 filter element helps maintain fluid cleanliness, improve component reliability, reduce downtime, and extend overall system life. When paired with compatible ZAF Series filter heads, these AE Series filter elements provide an effective and economical filtration solution for a wide range of hydraulic power units, industrial machinery, mobile equipment, and fluid power systems.
