$653.40

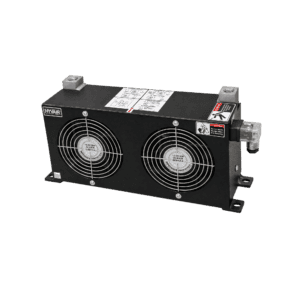

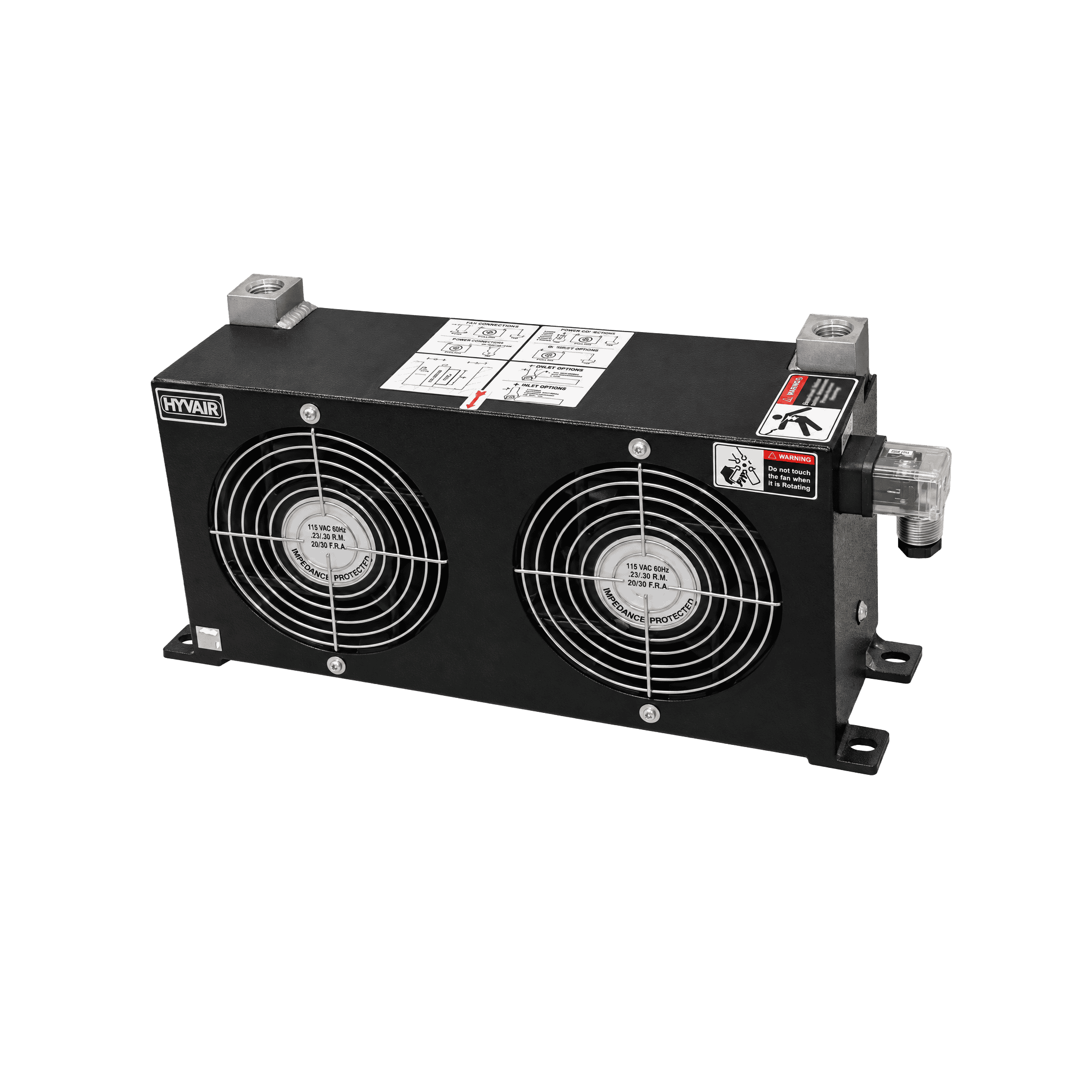

The Hyvair Air/Oil Case Cooler AC2-115A is for hydraulic system builders and maintenance teams that need to manage oil temperature.
The Hyvair AC2 air/oil case cooler, part number AC2-115A, pulls heat out of hydraulic oil with two single phase 115 VAC fans, handling flow up to 5 gpm and rejecting 2.0 to 2.4 HP of heat at a 50 °F entering temperature difference. Slower fan speeds keep noise to 58 dBA.
Use it as a case drain cooler or a return line cooler. Dual SAE 8 and SAE 6 connections at the inlet and outlet simplify plumbing, and louvered fan blades improve heat transfer. The optional AC2 filter with aluminum bracket keeps debris off the core.
Pressure drop is 13 psi at 5 gpm.
What port size does it use?
#8 SAE (3/4-16) and #6 SAE (9/16-18) (Female SAE straight thread O-ring boss).
What pressure and flow is it rated for?
It is rated to 220 psi, max flow 5 gpm / 19 L/min.
