$2,368.00

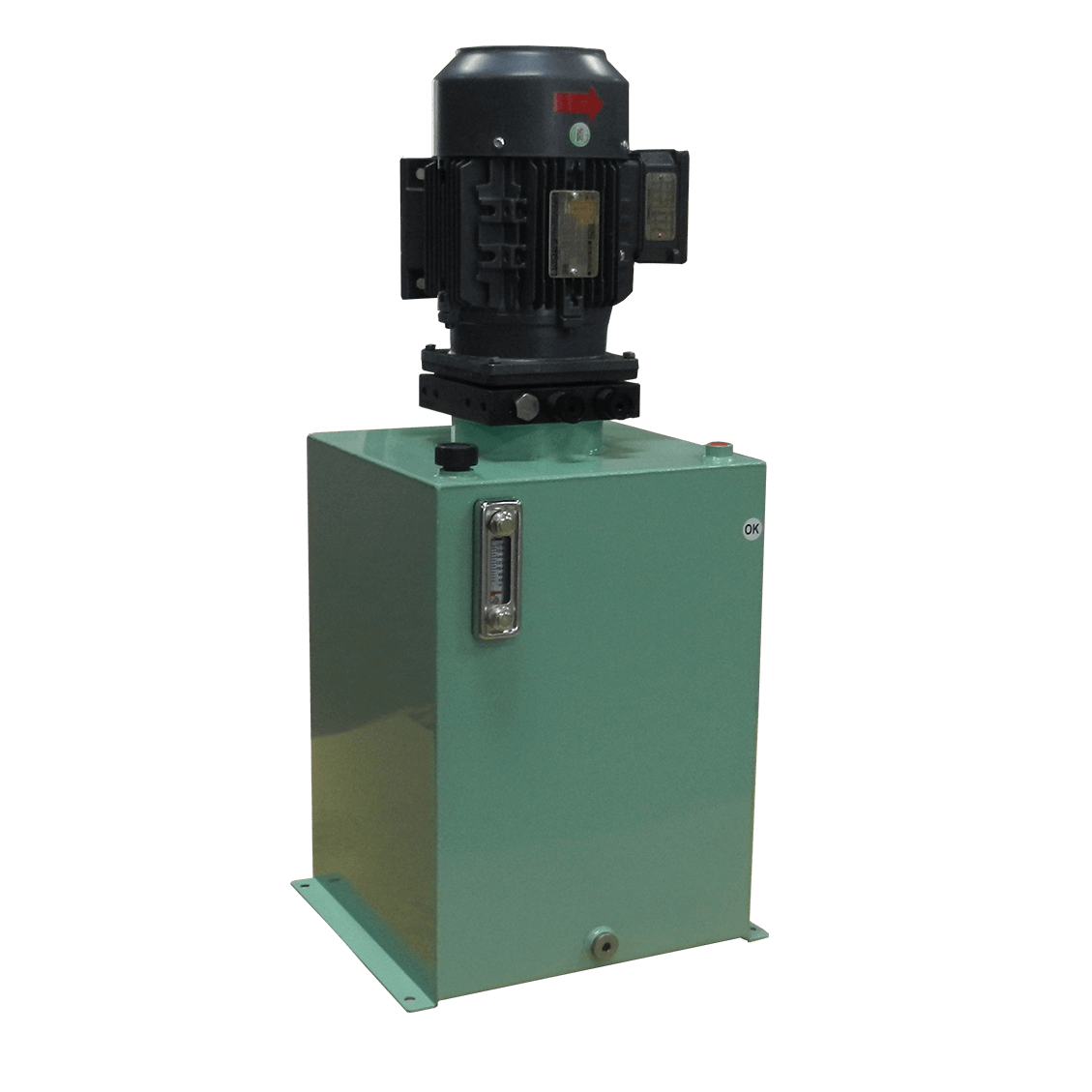

The Hyvair VT10-1HP1-G.9 is a VT Series vertical tank hydraulic power unit. It pairs a 1 HP single-phase electric motor with a gear pump rated at 0.9 gpm, arranged vertically to keep the footprint small on a machine base, bench or equipment bay.
The motor runs on 115/230 VAC at 60 Hz and turns at 1740 rpm. Single-phase power means the unit can run where three-phase service is not available. Decide which voltage you will use, and wire the motor for that supply per its nameplate.
At 0.9 gpm, the unit suits circuits where controlled, steady motion matters more than speed. To estimate cycle time, divide the oil volume a cylinder needs for one stroke by the pump flow. For example, a cylinder that needs 0.3 gallons to extend takes about 20 seconds at 0.9 gpm, before any losses.
A gear pump delivers a fixed volume of oil per revolution, so flow stays tied to motor speed. Pressure builds only as the load resists, and the circuit relief valve sets the upper limit. Pressure rating, reservoir capacity and valve configuration are not listed here, so confirm those against your circuit before ordering.
Related categories: Hydraulic Power Units · Pumps · Vertical Tank Power Units
Brand: Hyvair
