Images used may not represent the actual product.
$2,368.00

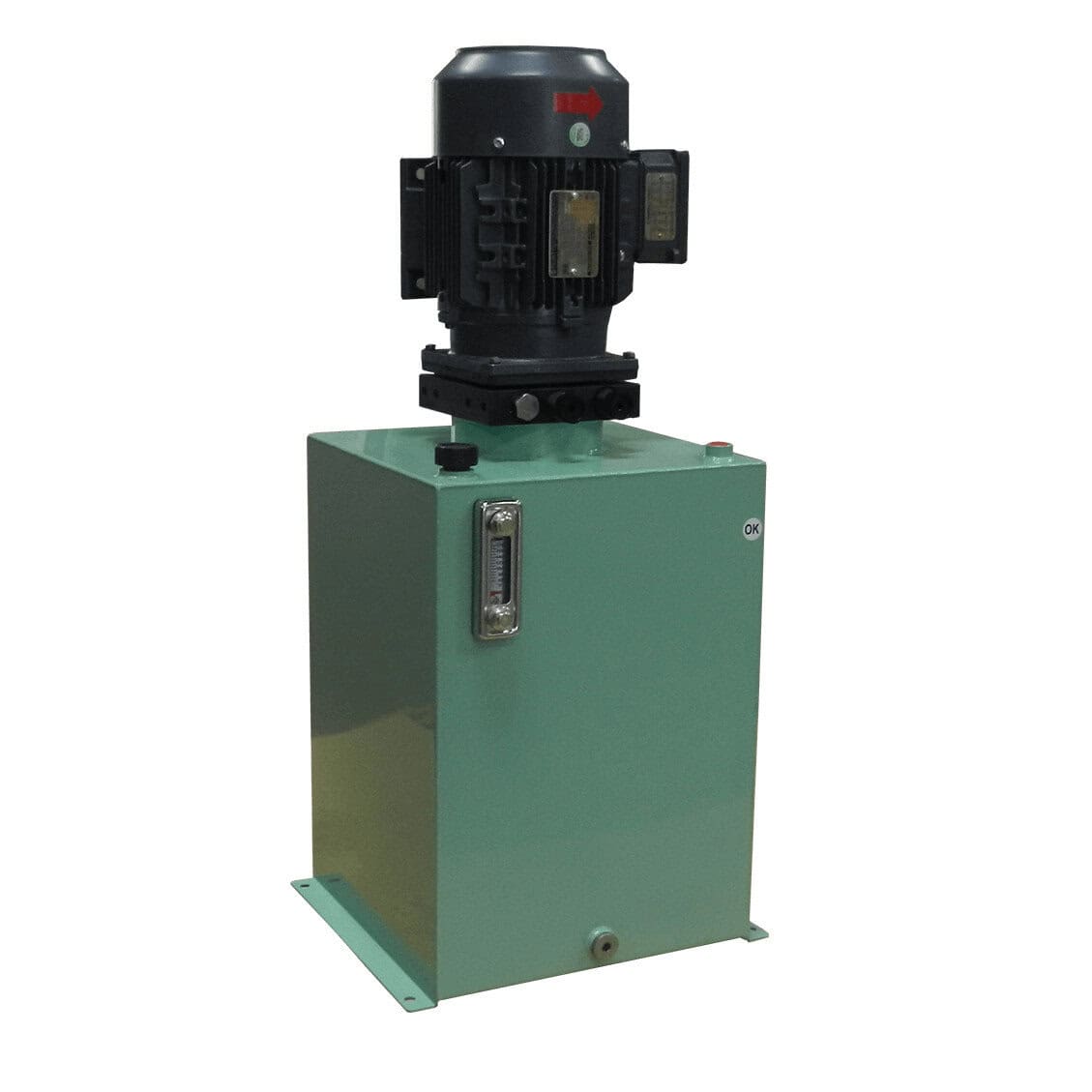

The Hyvair VT10-1HP3-G.7 is a VT Series vertical tank hydraulic power unit. It packages an electric motor, a pump and a reservoir into one assembly that supplies pressurized oil to a hydraulic circuit, rated at 0.7 gpm of flow.
The motor is rated at 1 HP and runs on 3 phase power. Its voltage rating is 230/460 VAC at 60 Hz, which means the motor can be connected for either 230 or 460 volts to match the supply at your machine. At 60 Hz the motor turns at 1740 RPM.
In a vertical tank unit, the reservoir stands upright and the components are stacked rather than spread out. That layout keeps the footprint small, which helps on machines and in enclosures where floor space is limited.
Flow sets how fast cylinders extend and retract or how fast a hydraulic motor turns. Compare the 0.7 gpm rating with the actuator speed your circuit needs before you choose this model.
When ordering, confirm that your facility has 3 phase power at 230 or 460 VAC and 60 Hz, and that 1 HP is enough for the pressure your circuit will run.
Related categories: Hydraulic Power Units · Pumps · Vertical Tank Power Units
Brand: Hyvair
