$44.04

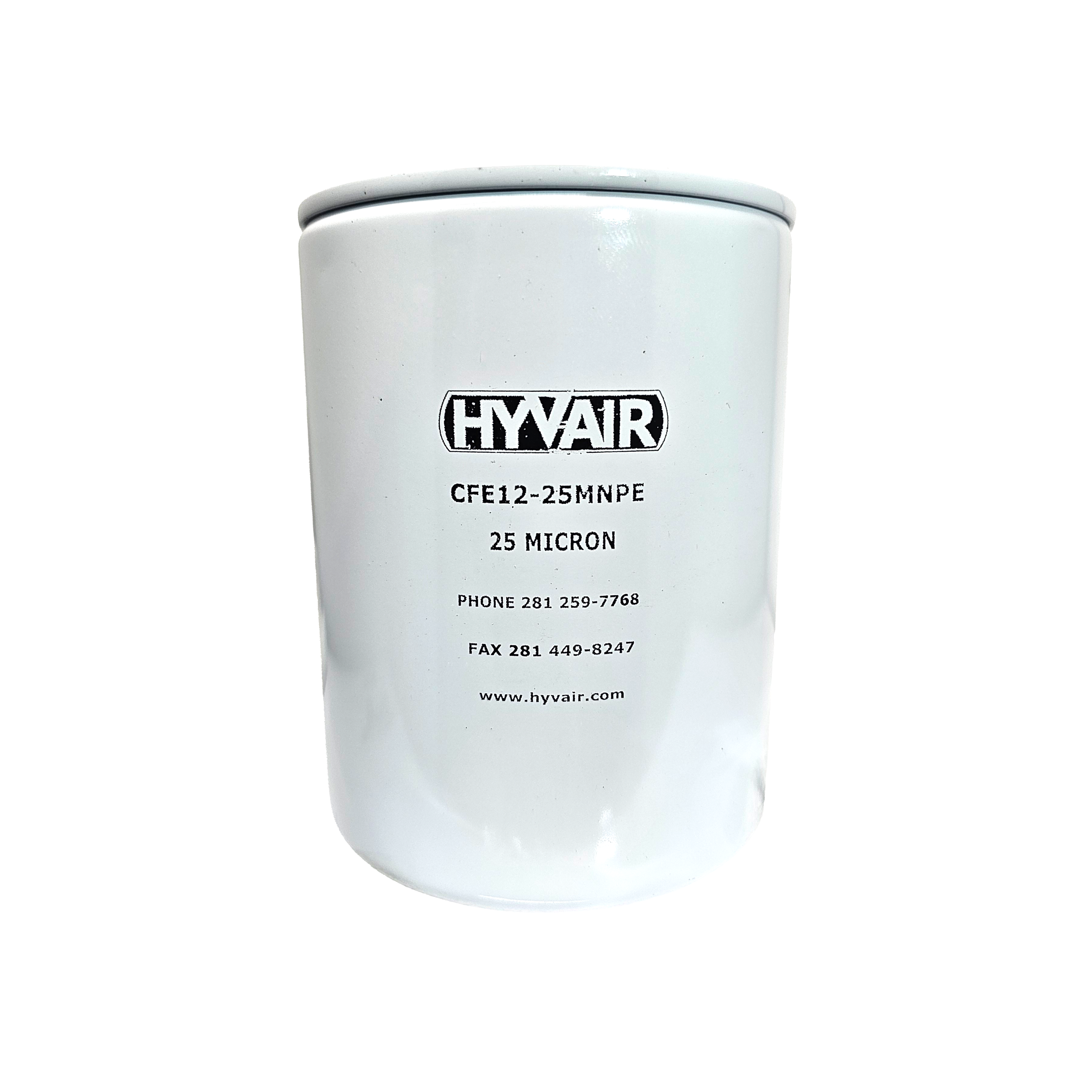

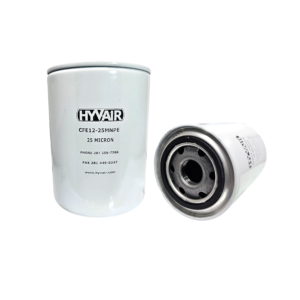

The Hyvair CFE12-25MNPE is a CF Series spin-on filter element with 25 micron resin treated paper media. A spin-on element threads directly onto a filter head and is replaced as one sealed unit once it loads with dirt, so there is no loose cartridge or bowl to handle during service.
The element measures 3.80 in in diameter and 5.75 in in overall height. It mounts on a 1-12 UNF thread and is listed for a 3/4 in NPT port size, which identifies the head and line size it pairs with. Confirm both the mounting thread and the port size against your filter head before you order.
Maximum pressure is 60 psid. That is a differential rating, meaning the pressure drop across the element, so it describes how much loading the element can handle rather than the working pressure of the circuit. The rated temperature range is -15°F to +230°F.
The specifications list compatibility with petroleum based fluids from ISO VG32 to VG68, phosphate ester, most vegetable oils and water based fluids up to 40 percent water. The 25 micron rating suits circuits where general particle control is the goal and very fine filtration is not required.
Related categories: Filtration & Fluid Conditioning · Spin-On Filter Elements · AE Series
Brand: Hyvair
