$141.74

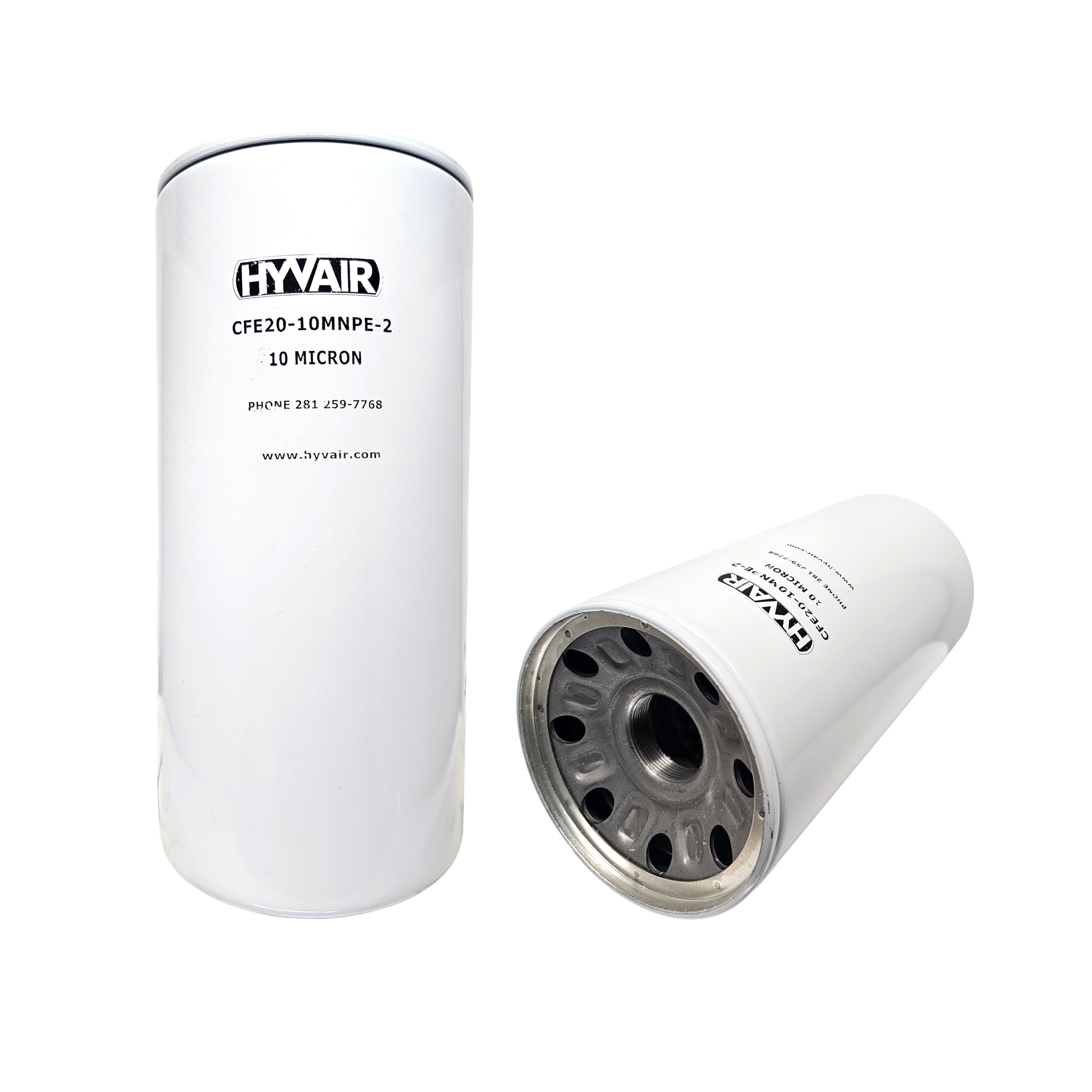

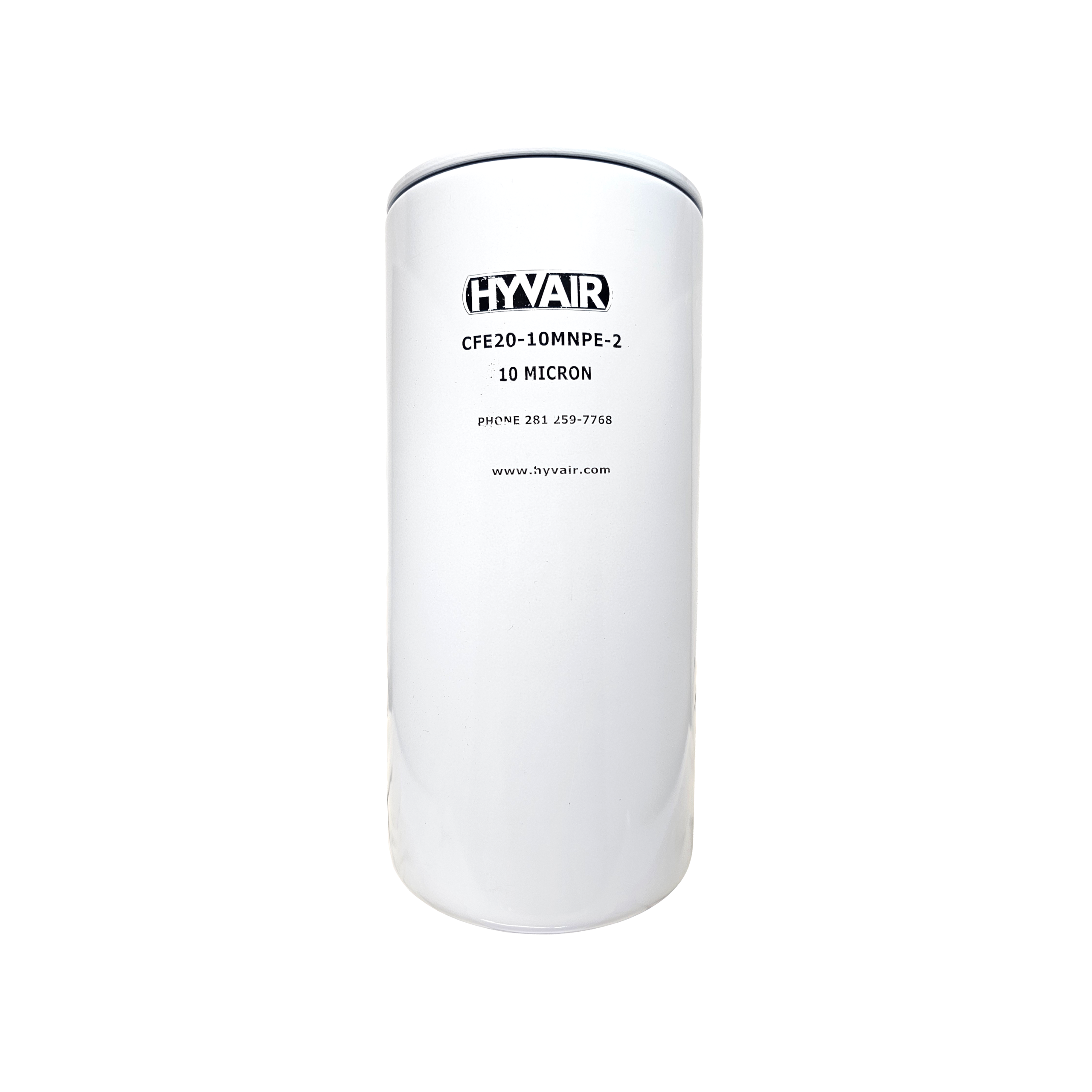

The Hyvair CFE20-10MNPE-2 is a CF Series spin-on filter element built with 10 micron resin treated paper media. It threads onto a matching filter head and is replaced as a complete unit, so service comes down to spinning off the used element and spinning on a new one.
Overall height is 10.71 in and the diameter is 5.08 in. The element mounts on a 1-1/2-16 UN thread and is listed for a 1-1/4 in NPT port size. Those two values, along with the length, are what to check when matching this element to an existing head.
Maximum pressure is 60 psid, a differential rating that refers to the pressure drop across the media as it fills with contaminant. It is separate from the working pressure of the system. The rated temperature range is -15°F to +230°F.
The specifications list petroleum based fluids from ISO VG32 to VG68, phosphate ester, most vegetable oils and water based fluids up to 40 percent water. The 10 micron resin treated paper media is aimed at finer particle control.
Related categories: Filtration & Fluid Conditioning · Spin-On Filter Elements · BE Series
Brand: Hyvair
