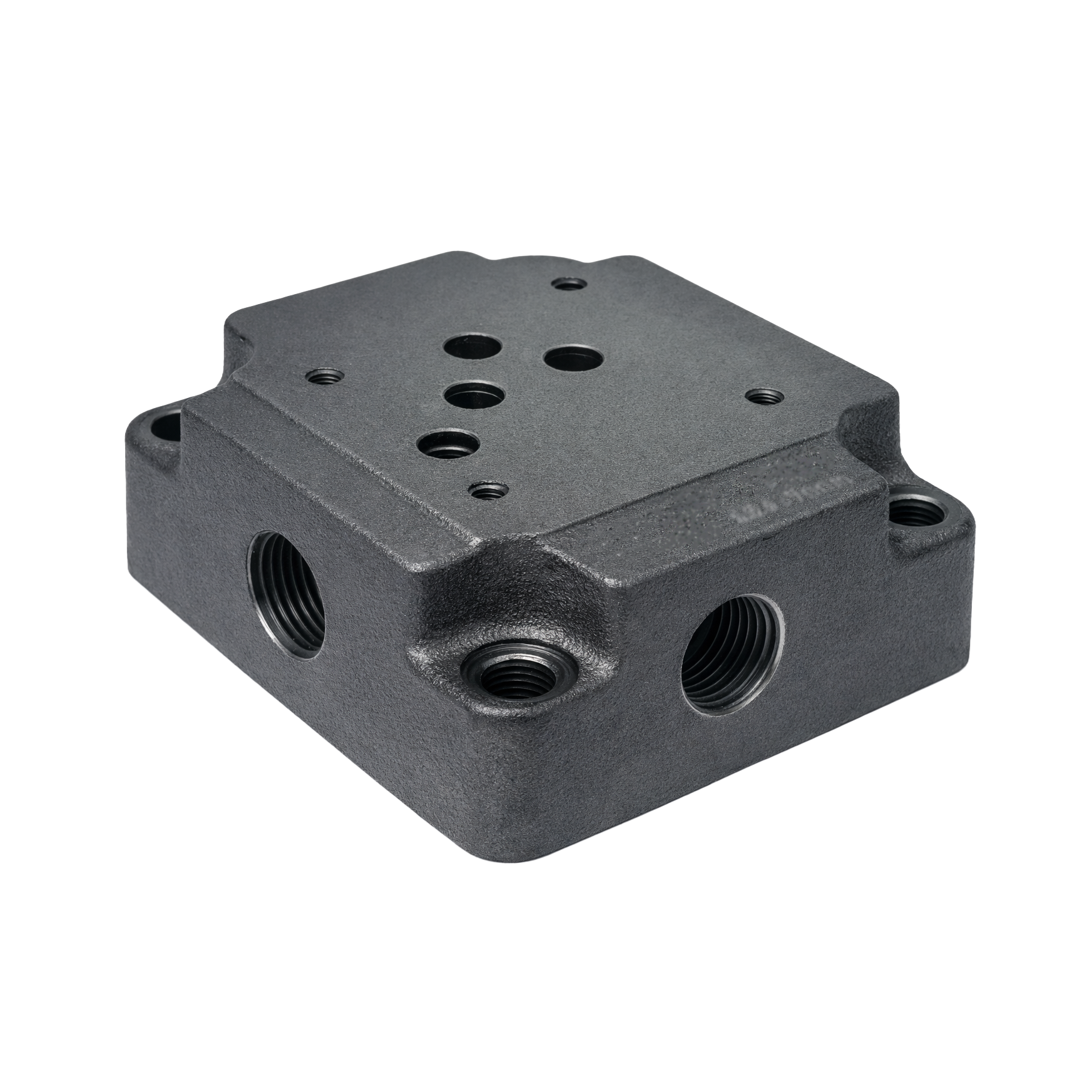

D05 Series Subplate Bottom & Side Ported Ductile Cast Iron – SD05-8FP-B

Engineered for demanding hydraulic applications, the D05 Series Subplate Bottom & Side Ported Ductile Cast Iron (Part Number SD05-8FP-B) provides a rugged, direct-mount base for NFPA D05 solenoid and directional control valves. Built from high-strength ductile cast iron, this subplate offers excellent resistance to shock, vibration, and fatigue, making it ideal for high-pressure, continuous-duty systems.

The subplate features versatile bottom and side porting with durable 1/2″ (#8) pressure and return ports designed to handle working pressures up to 5000 psi. This configuration simplifies plumbing in tight spaces, reduces the need for extra fittings, and allows cleaner, more compact hose routing on power units and machinery.

As a direct-mount replacement for compact hydraulic manifolds, the D05 Series subplate supports fast installation and straightforward maintenance. Its robust construction helps minimize leaks, pressure losses, and downtime across industrial, mobile, and OEM equipment.

Choose this ductile iron D05 subplate when you need reliable, high-pressure performance, flexible porting options, and a long service life in demanding hydraulic circuits.
