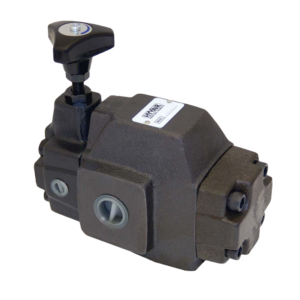

Pressure Reducing Valve – PRC20-12FP-3K

The PRC20-12FP-3K is a Hyvair PRC20-series pressure reducing valve designed for industrial hydraulic systems; this 3/4″ female-pipe valve features an adjustable secondary pressure range of 1000–3500 psi (standard 3K), an integrated reverse-flow check, 1/4″ NPT gauge and drain ports, and is ventable for remote pressure control. Key performance specs include a maximum flow of 33 gpm (inlet @ 3000 psi), pilot flow ~0.25 gpm, recommended fluids ISO VG32–68 (petroleum-based), 10-micron recommended filtration, cold-start viscosity limit 250 SUS, and a maximum operating temperature of 180°F (82.2°C).

By reliably regulating downstream pressure and preventing overpressurization, the PRC20-12FP-3K protects sensitive actuators and control circuits while improving system stability and component life; its reverse-flow check and compact NPT connections simplify installation in mobile and stationary hydraulic units. Typical applications include cranes, winches, hydraulic power units, industrial presses, OEM manifolds, and agricultural or construction equipment where precise, adjustable pressure control, remote setpoint capability, and compatibility with standard hydraulic fluids are required.

Related categories: Valves · Pressure Reducing Valves

Brand: Hyvair
