Images used may not represent the actual product.
$385.51

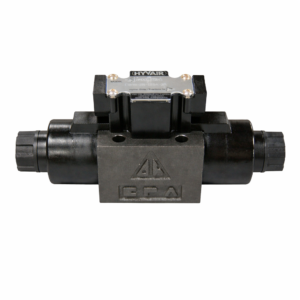

The Hyvair D05S-2B-24D-35 is a D05 Series 35 double solenoid operated directional valve with 24 VDC coils. It mounts on the NFPA T3.5.1.MR1-D05 / ISO 4401-05 interface and is rated to 5000 psi and 42.3 gpm. Two solenoids shift the spool either way, and springs return it to center for 3 positions in all.
Spool code 2B blocks all ports in center. The actuator holds in place and pump flow is blocked at the valve until one of the coils is energized.
The coils are wired into an electrical box with a terminal strip and two 1/2 in NPT conduit ports, and indicator lights are included. The permissible voltage range is 21.6 to 26.4 V and holding power is 36 W. DC coils are not polarity sensitive. Oil-immersed solenoids keep operation quiet. The plug-in coils change out without disturbing the wiring, and a push pin manual override sits on each end.
Twin tank channels reduce pressure drop, and the tank port is rated to 2320 psi. Hyvair designs the valve for 30 million spool shifts. Recommended filtration is 25 micron or finer. Fluid temperature range is 41 to 140 °F and viscosity range is 80 to 1400 SUS. A bolt kit with four 1/4-20 SHCS x 1-1/2 in is included.
Related categories: Valves · Solenoid Valves · D05 Series · Electrical Box · Double Solenoid · 24 DC
Brand: Hyvair
