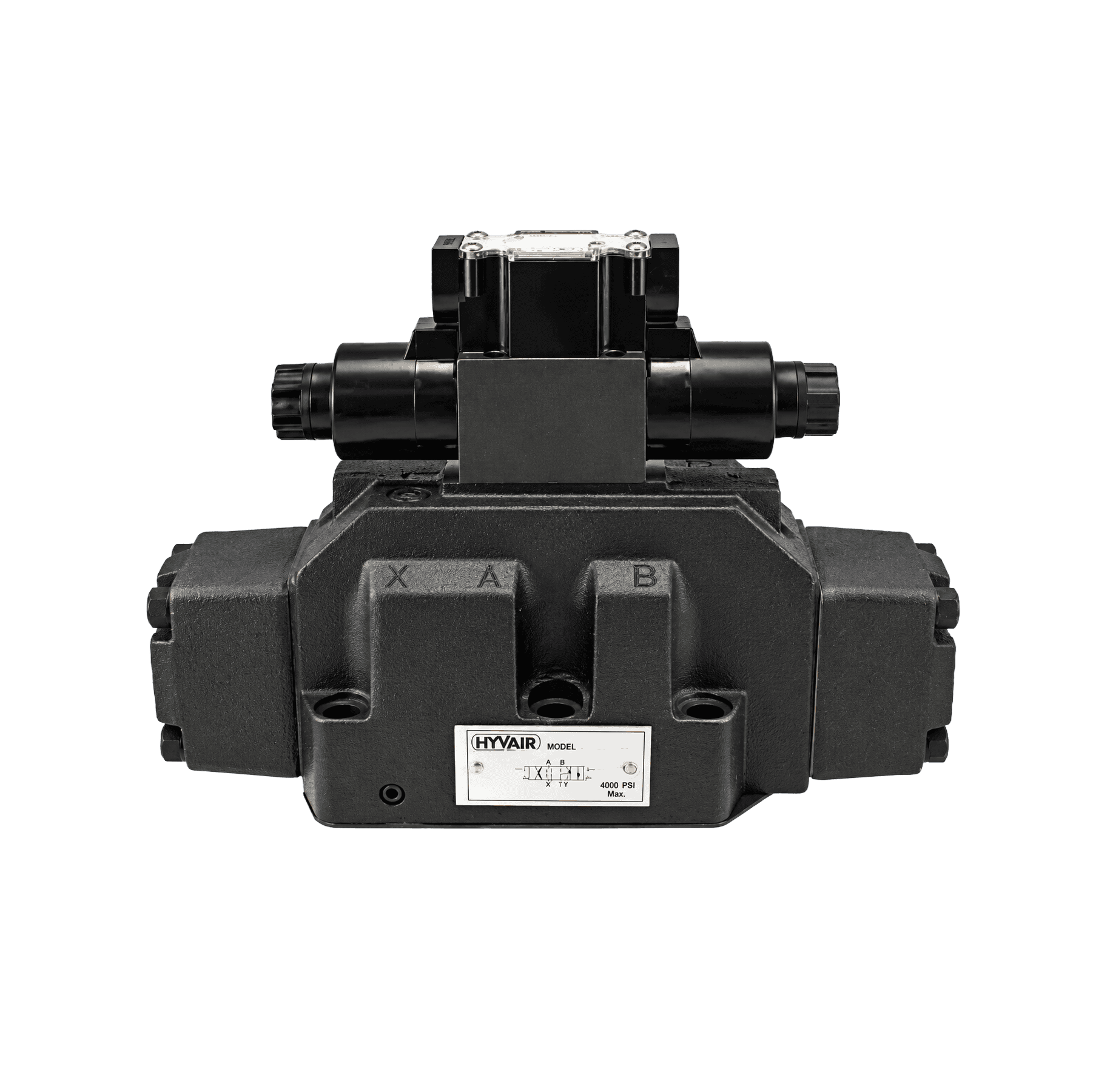

Images used may not represent the actual product.
$1,051.38
The Hyvair Solenoid Pilot Operated Directional Valve D08S-1A-115A-35 is for hydraulic system builders, OEMs and maintenance technicians replacing or specifying manifold-mounted valves.
This Hyvair D08 solenoid pilot operated directional valve, part number D08S-1A-115A-35, uses a D03 solenoid pilot stage to shift a large main spool on the NFPA D08 / ISO 4401-08 pattern, rated to 4600 psi and 75 gpm. As a single solenoid, 2 position spring offset valve, it provides a P to A, B to T flow path.
It is configured for internal pilot and internal drain. The 115 VAC pilot coils wire into an electrical box with a terminal strip and indicator lights. The oil-immersed pilot solenoid runs quietly, and plug-in coils change out without disturbing wiring. Keep pilot pressure at least 70 psi above tank port back pressure. Hyvair designs the valve for 20 million spool shifts.
The tank port is rated to 2000 psi / 140 bar. Recommended filtration is 25 micron, ISO 18/15. Fluid temperature range is 40 to 160 °F. Fluid viscosity range is 80 to 300 SUS.
What mounting pattern does it fit?
It mounts on the NFPA T3.5.1.MR-D08 / ISO 4401-08 interface.
What pressure and flow is it rated for?
It is rated to 4600 psi / 320 bar, max flow 75 gpm / 283 lpm.
What coil voltage does it use?
115 VAC, with Electrical box with terminal strip.
What fluid conditions keep it running well?
Rated operating conditions: filtration 25 micron, ISO 18/15; viscosity 80 to 300 SUS; fluid temperature 40 to 160 °F.
