Images used may not represent the actual product.
$711.51
The Hyvair Solenoid Pilot Operated Directional Valve D07S-1A-12D-35 is for hydraulic system builders, OEMs and maintenance technicians replacing or specifying manifold-mounted valves.

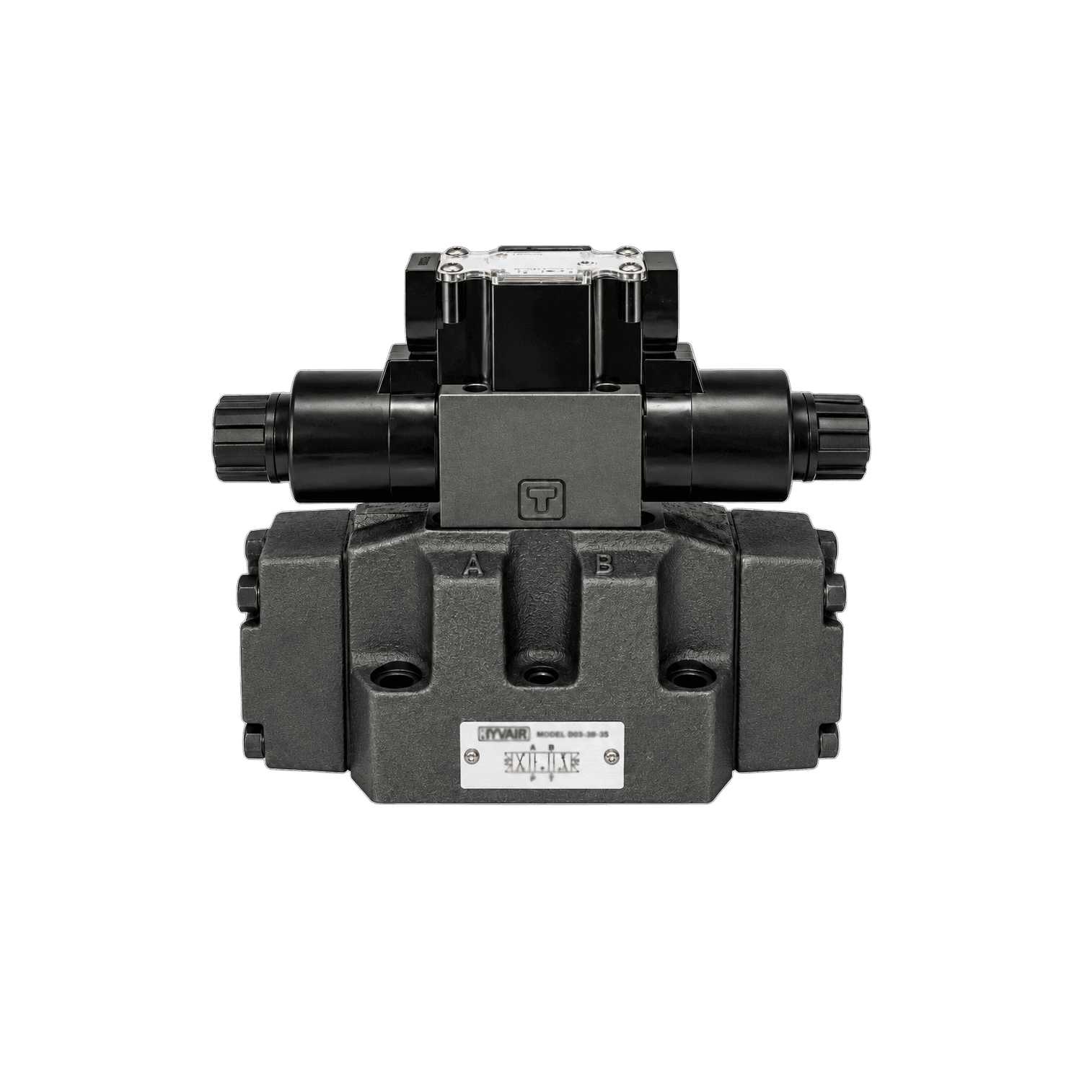

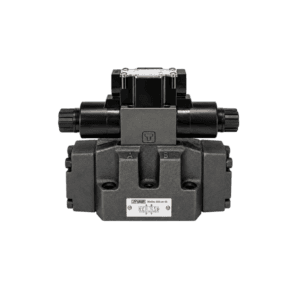

This Hyvair D07 solenoid pilot operated directional valve, part number D07S-1A-12D-35, uses a D03 solenoid pilot stage to shift a large main spool on the NFPA D07 / ISO 4401-07 pattern, rated to 4600 psi and 80 gpm at 3045 psi. As a single solenoid, 2 position spring offset valve, it provides a P to A, B to T flow path.
It is configured for internal pilot and internal drain. The 12 VDC pilot coils wire into an electrical box with a terminal strip and indicator lights. The oil-immersed pilot solenoid runs quietly, and plug-in coils change out without disturbing wiring. Pilot pressure runs from 72.5 to 3043 psi, and Hyvair designs the valve for 20 million spool shifts.
The tank port is rated to 2029 psi / 140 bar. Recommended filtration is ISO 4406 21/18/15. Fluid temperature range is -22 to 176 °F with NBR seals and -4 to 176 °F with FPM seals. Fluid viscosity range is 98 to 1840 SUS.
What mounting pattern does it fit?
It mounts on the NFPA D07 / ISO 4401-07 interface.
What pressure and flow is it rated for?
It is rated to 4600 psi / 320 bar, max flow 80 gpm at 3045 psi, 66 gpm at 4640 psi.
What coil voltage does it use?
12 VDC, with Electrical box with terminal strip.
What fluid conditions keep it running well?
Rated operating conditions: filtration ISO 4406 21/18/15; viscosity 98 to 1840 SUS; fluid temperature -22 to 176 °F NBR seals, -4 to 176 °F FPM seals.
Related categories: Valves · Solenoid Valves · D07 Series · Electrical Box · Single Solenoid · 12 DC
Brand: Hyvair
