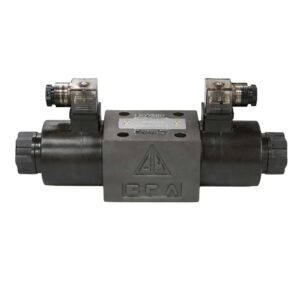

Images used may not represent the actual product.
$385.51
The Hyvair Solenoid Operated Directional Valve D05SD-2H-230A-35 is for hydraulic system builders, OEMs and maintenance technicians replacing or specifying manifold-mounted valves.
This Hyvair D05 solenoid operated directional valve, part number D05SD-2H-230A-35, mounts on the NFPA D05 / ISO 4401-05 pattern and is rated to 5000 psi and 34.1 gpm. Two solenoids shift the spool in either direction, and springs return it to center, where all ports are open.
It runs on a 230 VAC DIN coil, and the DIN 43650 / ISO 4400 connector is supplied. AC coils run on 50 or 60 Hz without rewiring. The oil-immersed solenoid runs quietly, twin tank channels reduce pressure drop, and plug-in coils change out without disturbing wiring. Hyvair designs the valve for 30 million spool shifts, and a mounting bolt kit is included.
The tank port is rated to 2320 psi. The coil operates within 180 to 240 V. Coil holding power is 32 to 36 W. Recommended filtration is 25 micron or finer. Fluid temperature range is 41 to 140 °F. Fluid viscosity range is 80 to 1400 SUS.
What mounting pattern does it fit?
It mounts on the NFPA T3.5.1.MR1-D05 / ISO 4401-05 interface.
What pressure and flow is it rated for?
It is rated to 5000 psi, max flow 34.1 gpm.
What coil voltage does it use?
230 VAC, 50/60 Hz, with DIN coil, 3-pin DIN 43650 Form A / ISO 4400 connector.
What's included?
Bolt kit, (4) 1/4-20 SHCS x 1-1/2 in.
What fluid conditions keep it running well?
Rated operating conditions: filtration 25 micron or finer; viscosity 80 to 1400 SUS; fluid temperature 41 to 140 °F.
