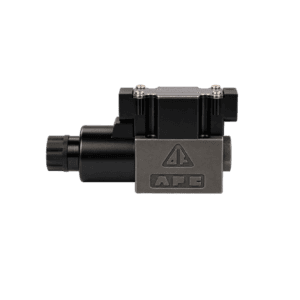

Images used may not represent the actual product.
$192.76
The Hyvair Solenoid Operated Directional Valve D03S-1AY-115A-35 is for hydraulic system builders, OEMs and maintenance technicians replacing or specifying manifold-mounted valves.
This Hyvair D03 solenoid operated directional valve, part number D03S-1AY-115A-35, mounts on the NFPA D03 / ISO 4401-03 pattern and is rated to 5000 psi and 17.1 gpm. As a single solenoid, 2 position spring offset valve, it provides a P to A, B to T flow path, open in transition.
It runs on a 115 VAC coil wired into an electrical box with a terminal strip and indicator lights. AC coils run on 50 or 60 Hz without rewiring. The oil-immersed solenoid runs quietly, the Double Loop tank channels reduce pressure drop, and plug-in coils change out without disturbing wiring. Hyvair designs the valve for 30 million spool shifts, and a mounting bolt kit is included.
The tank port is rated to 3040 psi. The coil operates within 80 to 120 V. Coil holding power is 25 W at 110 V 50 Hz, 22 W at 110 V 60 Hz, 28 W at 120 V 60 Hz. Recommended filtration is 25 micron. Fluid temperature range is -4 to 158 °F. Fluid viscosity range is 80 to 1400 SUS.
What mounting pattern does it fit?
It mounts on the NFPA T3.5.1.MR1-D03 / ISO 4401-03 interface.
What pressure and flow is it rated for?
It is rated to 5000 psi / 35 MPa, max flow 17.1 gpm / 65 L/min.
What coil voltage does it use?
115 VAC, with Electrical box with terminal strip.
What's included?
Mounting bolt kit.
What fluid conditions keep it running well?
Rated operating conditions: filtration 25 micron; viscosity 80 to 1400 SUS; fluid temperature -4 to 158 °F.
Related categories: Valves · Solenoid Valves · D03 Series · Electrical Box · Single Solenoid · 115 AC
Brand: Hyvair
