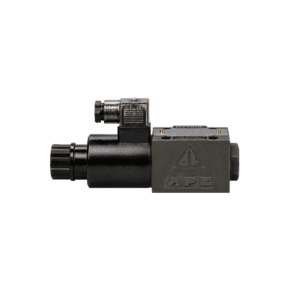

Images used may not represent the actual product.
$192.76
The Hyvair Solenoid Operated Directional Valve D03SD-5FR-24D-35 is for hydraulic system builders, OEMs and maintenance technicians replacing or specifying manifold-mounted valves.
This Hyvair D03 solenoid operated directional valve, part number D03SD-5FR-24D-35, mounts on the NFPA D03 / ISO 4401-03 pattern. A single solenoid shifts the spool from a spring centered position, where P is blocked while A and B are open to T, to one working position. The R code places the coil on the opposite side of the valve.
It runs on a 24 VDC DIN coil, and the DIN 43650 / ISO 4400 connector is supplied. DC coils are not polarity sensitive. The oil-immersed solenoid runs quietly, the Double Loop tank channels reduce pressure drop, and plug-in coils change out without disturbing wiring. Hyvair designs the valve for 30 million spool shifts, and a mounting bolt kit is included.
The tank port is rated to 3040 psi. The coil operates within 21.6 to 26.4 V. Coil holding power is 30 W. Recommended filtration is 25 micron. Fluid temperature range is -4 to 158 °F. Fluid viscosity range is 80 to 1400 SUS.
What mounting pattern does it fit?
It mounts on the NFPA T3.5.1.MR1-D03 / ISO 4401-03 interface.
What coil voltage does it use?
24 VDC, with DIN coil, 3-pin DIN 43650 Form A / ISO 4400 connector.
What's included?
Mounting bolt kit.
What fluid conditions keep it running well?
Rated operating conditions: filtration 25 micron; viscosity 80 to 1400 SUS; fluid temperature -4 to 158 °F.
Related categories: Valves · Solenoid Valves · D03 Series · Din Coil · Single Solenoid · 24 DC
Brand: Hyvair
