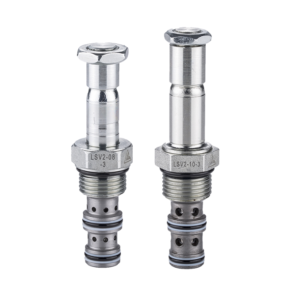

Cartridge Solenoid Valve – LSV2-08-3

The Cartridge Solenoid Valve (Part No. LSV2-08-3) is a solenoid-operated, 3‑way, 2‑position spool-type cartridge designed for standard 3/4‑16 threaded cavities. In its neutral/de‑energized state it permits flow between ports 1 and 2 while blocking port 3, and when energized the spool shifts to open the third port to provide the alternate flow path (model variants offer different 2↔1 and 3↔1 switching arrangements). Typical ratings published for the LSV2-08-3 family are about 11 L/min flow and a maximum working pressure near 207 bar (3000 psi), with materials and coil options intended for robust hydraulic service.

The compact cartridge format simplifies manifold mounting and replacement, while solenoid actuation delivers fast, reliable remote switching for directional control and pilot circuits. With its high pressure capacity and wide temperature ratings it is well suited for mobile and industrial hydraulics—examples include excavator pilot/pedal controls, auxiliary valve functions in construction and material‑handling equipment, and compact manifold installations where space and plumbing simplicity are critical.
