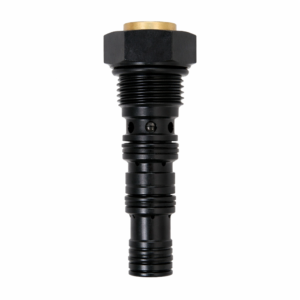

Images used may not represent the actual product.
$311.06
The LDPC-08-10-6T is an L Series dual pilot operated check valve for a C08-4 cartridge, supplied in a body with SAE 6 porting. It is rated for 4 gpm and a 3,000 psi operating pressure, with an anodized aluminum alloy body rated for -30°F to +250°F.
A dual pilot operated check holds a cylinder in both directions. It has two checks, one in each work line. Each check passes oil freely toward the actuator and blocks return flow until pressure in the opposite line pilots it open. When the directional valve centers and pressure drops in both lines, both checks close and the actuator holds its position.
Because this version comes in a ported body, it can mount in line between the directional valve and the cylinder, with no manifold required. SAE 6 ports accept standard straight thread O-ring boss fittings. Putting both checks in one assembly keeps the plumbing short and the layout compact.
Confirm your flow, pressure and port size against these figures before ordering. Check the cracking pressure for your application as well, since it is not confirmed in this listing.
